2-14
2.5 Communication with CombiPlus/SuperCombi
SunStar Series can not only operate alone when the BCD Switch is placed at 0 but also
communicate with CombiPlus/SuperCombi up to 10 units together when BCD Switch is
placed at 1~A. The example of how to wire 1 unit of the SunStar and how to wire 2~10
units to CombiPlus/SuperCombi is demonstrated in the following.

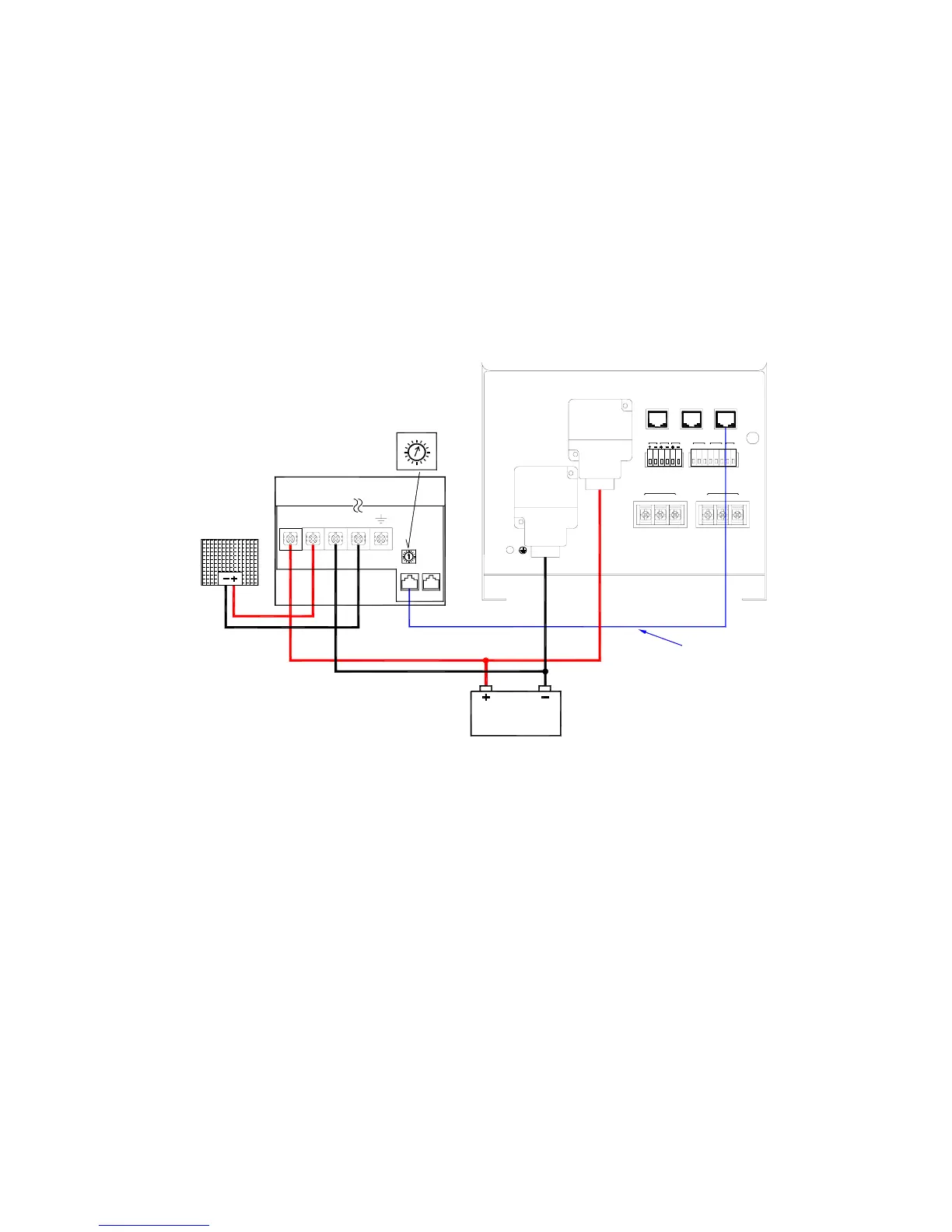

The Wiring of 1 Unit of SunStar to Communicate with CombiPlus/SuperCombi
SOLAR
PANEL
COMBIPLUS / SUPERCOMBI
GNL
AC OUT
GNL
AC IN
PORT C
(EXT)
PORT B
(OUT)
PORT A
(IN)
AC INPUT
BREAKER
BB
NEG-
POS+
CA
RY3
CA
RY2
CA
RY1CHARGEBTSV-SENS
SUN STAR
1
OUTIN
BATTERY
GNDGND PV+ABAT+
RJ-45 Cable
To Next Page
