8. Adjusting the Tilt Angle
The tilt can be set to your desired viewing angle by simply moving the screen backwards and forwards by
hand. If the screen moves freely you need to adjust the tension, follow the steps below.
1. To tighten the tilt adjustment use the 5mm Allen key (F) and turn the adjustment bolt in the plus direction
– see Diagram ‘V’. For heavier screens (9 - 12kg) the adjustment screw needs to be tightened to the
maximum. Repeat to the second monitor if needed.

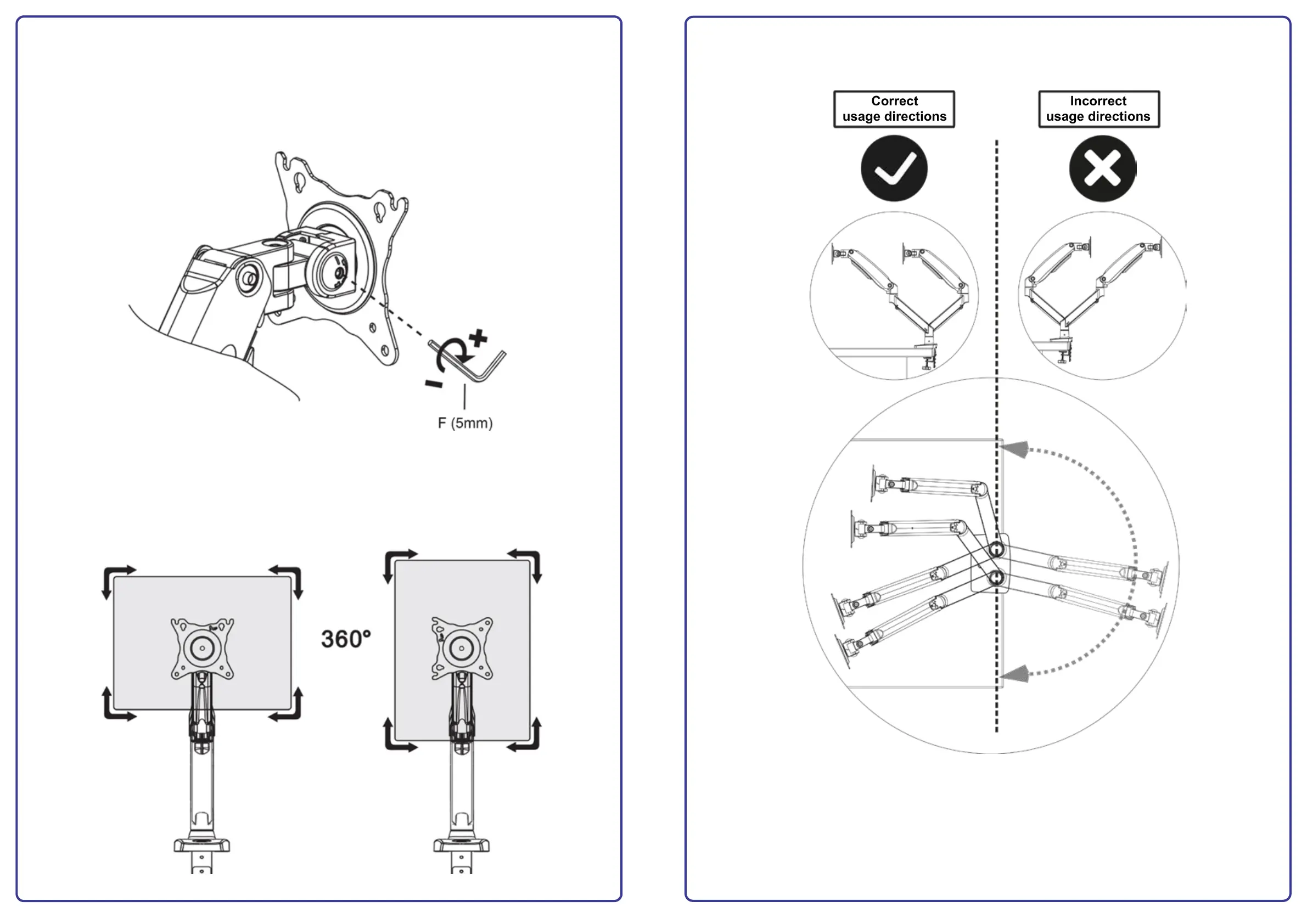

Diagram ‘V’
9. Rotational Features
1. Your monitor arm allows you to rotate your screen through 360 degrees to view in portrait mode or
landscape mode providing the VESA mount on your screen is central.
Please Note: Beware of trapping or breaking cables when rotating monitor DO NOT ROTATE MORE
THAN 90 DEGREES IN EACH MOTION
7
Correct
usage directions
Incorrect
usage directions
Troubleshooting:
Don’t panic! In case of any issues with compatibility or for any advice on fitting, please contact
our team at help@InvisionTechnology.co.uk and we will help you overcome any problems.
All of our products carry our Compatibility Promise.
Your installation is now complete - Sit back & enjoy!
To activate your 2 year warranty please email your name, order number
and product ref MX900 to warranty@InvisionTechnology.co.uk
IMPORTANT:
Please make sure you use this product as displayed in the directions below. Failing to do so could
cause injury or damage to your desktop/work-surface.
