Battery Maintenance
22 Rack Online 1-3k UPS User Manual

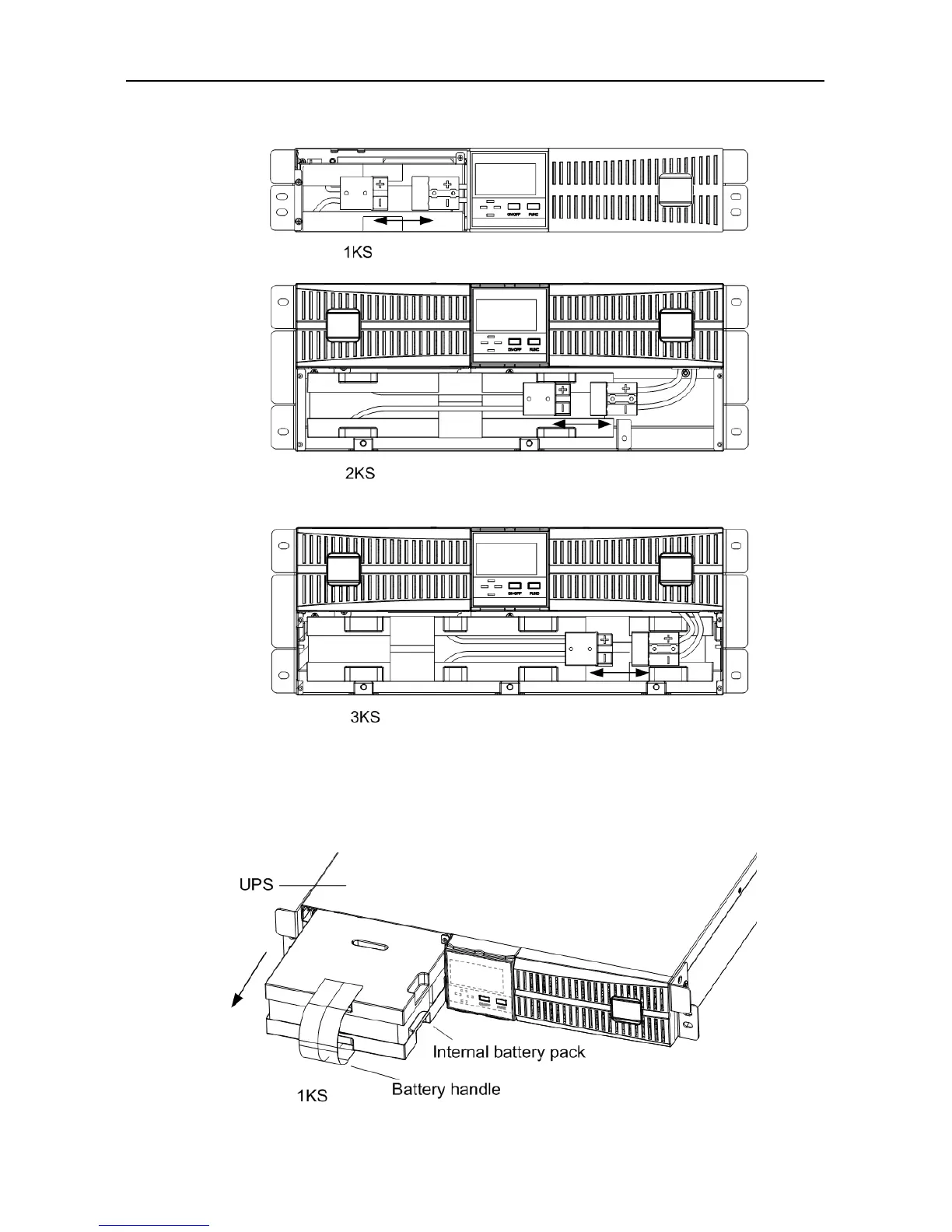

Step 3: Gently pull the battery wire out and disconnect battery wires, as shown in
Fig.7-2.
Fig.8-2 Disconnect battery wires
Step 4: Grasp the battery handle, and pull the internal battery pack out of the UPS, as
shown in Fig.7-3.
