INVT HT1101S

Introduction
4 Rack Online 1-3k UPS User Manual
RS-232 communication port. DB9 type.
EPO. Short to activate.
Intelligent slot
USB port. B type.
Input surge protection slot.
Input socket. 1KVA: IEC C14, 2K/3K: IEC C20
Network surge protection.
Output Socket IEC C13
External battery port. Optional for standard model.
Battery ground
Output Socket IEC C19
In addition, in view of the long backup time requirements, Specially designed the battery pack,
the diagram below:

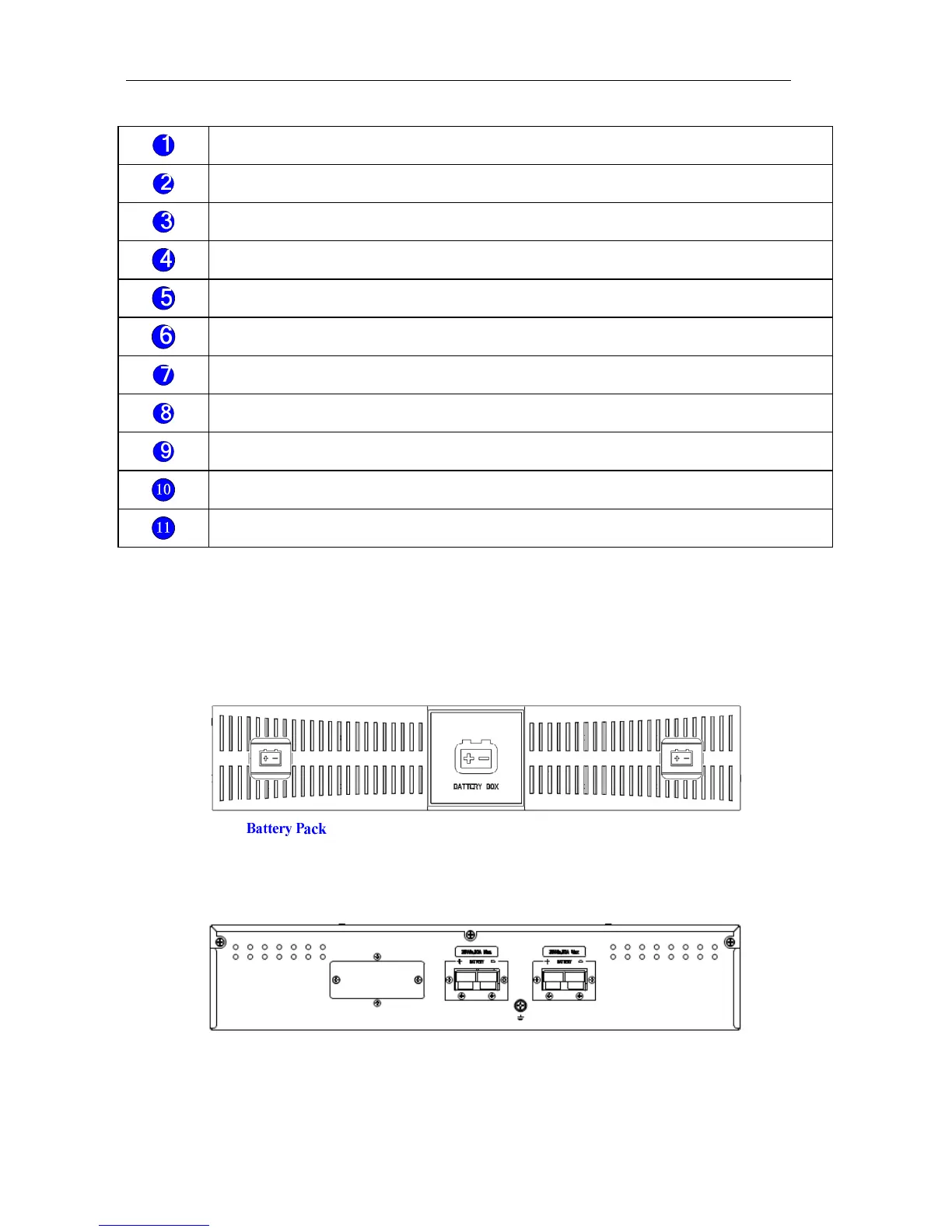

Fig.3-1Front View of Battery pack
Fig.3-2 Rear View of Battery pack
