INVT iMars BG5KTR

iMars grid-tied solar inverters Installation
25

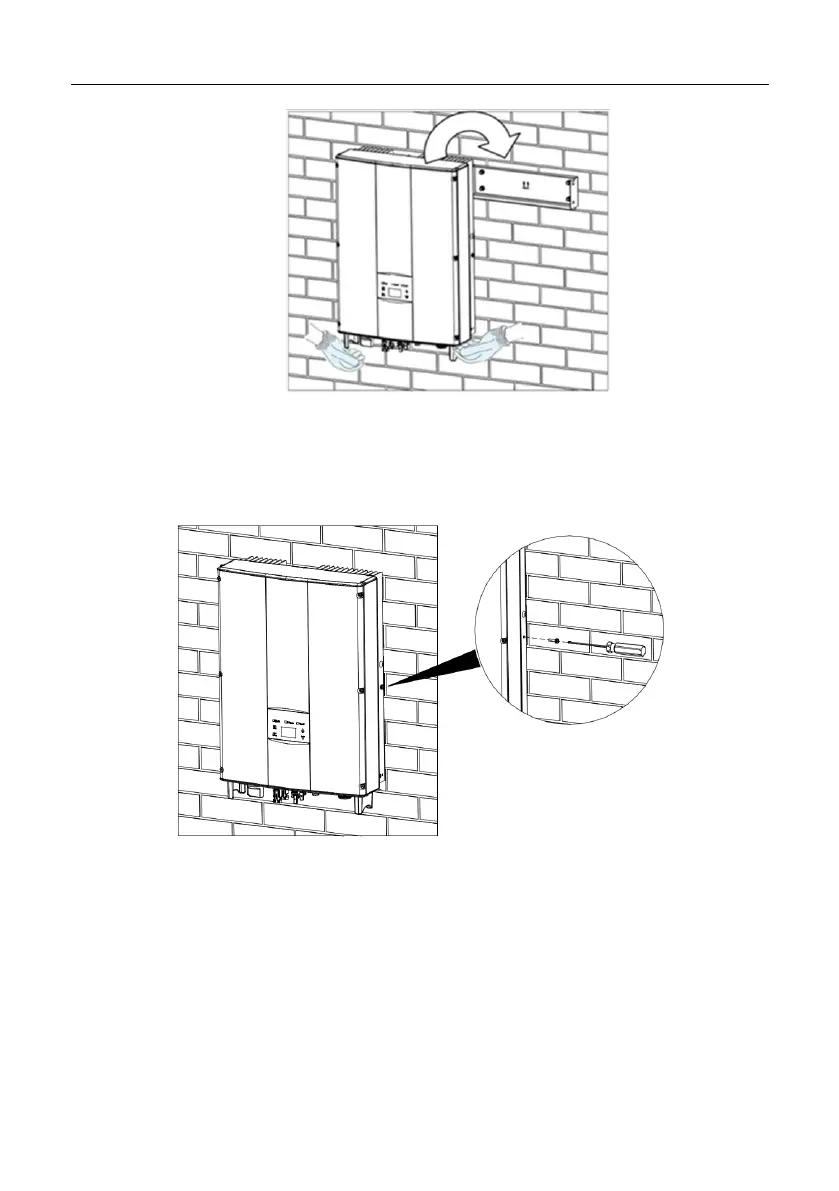

Figure 4.10 Installation of inverter
(6) Ensure the inverter is installed properly and tighten the M5X20 bolts into the screw holes
on the left and right side of inverter(tightening torque is 3N•m). As shown in Figure 4.11.
Figure4.11 Installation of M5X20 bolts
