1. Close the main gas supply valve before disconnecting the stove to replace
and leave it closed until the connection of the new stove.
2. Install a manual shut-off valve, to the main gas line at a place of easy access,
outside the stove. Make sure that everyone who is going to use the stove
know how to operate this valve and close it if necessary.
3. Install a 1/2 "male taper union adapter to the internal thread of 1/2 "NPT at
the regulator inlet. Use an adjustable wrench to hold the regulator, thus
avoiding damage.
4. Install a 1/2 ”male taper union adapter to the internal thread of the valve,
taking care to prevent the stop valve from turning.
5. Connect the flexible tubing connector to the adapter on the range, locate
the stove in its final position and connect the other end to the adapter in
the valve.
6. When you are finished making connections, check that all knobs on the
stove control panel, are in the off position and then open the main gas
supply valve.
7. Use soap and water at all joints and connections to verify that no there is
any leak.
DO NOT USE PLASTIC TUBE FOR GAS CONNECTION SINCE THEY MAY
PRESENT LEAKS, EVEN THOSE WITH STEEL MESH IN ITS SURFACE.
WARNING
Make sure your home has a gas pressure regulator that supply the correct
pressure.
Gas Connetions
THIS APPLIANCE CAN BE USED WITH GAS L.P. OR WITH NATURAL GAS. IN
FACTORY WAS ADJUSTED TO WORK WITH NATURAL GAS AND IS DESIG-
NED TO OPERATE AT A PRESSURE OF 1.76 kPa (7 in C.A.) AT IF YOUR
INSTALLATION IS FOR GAS L.P., YOU MUST HAVE A PRESSURE OF 2.76
kPa (11 in C.A.).
WARNING

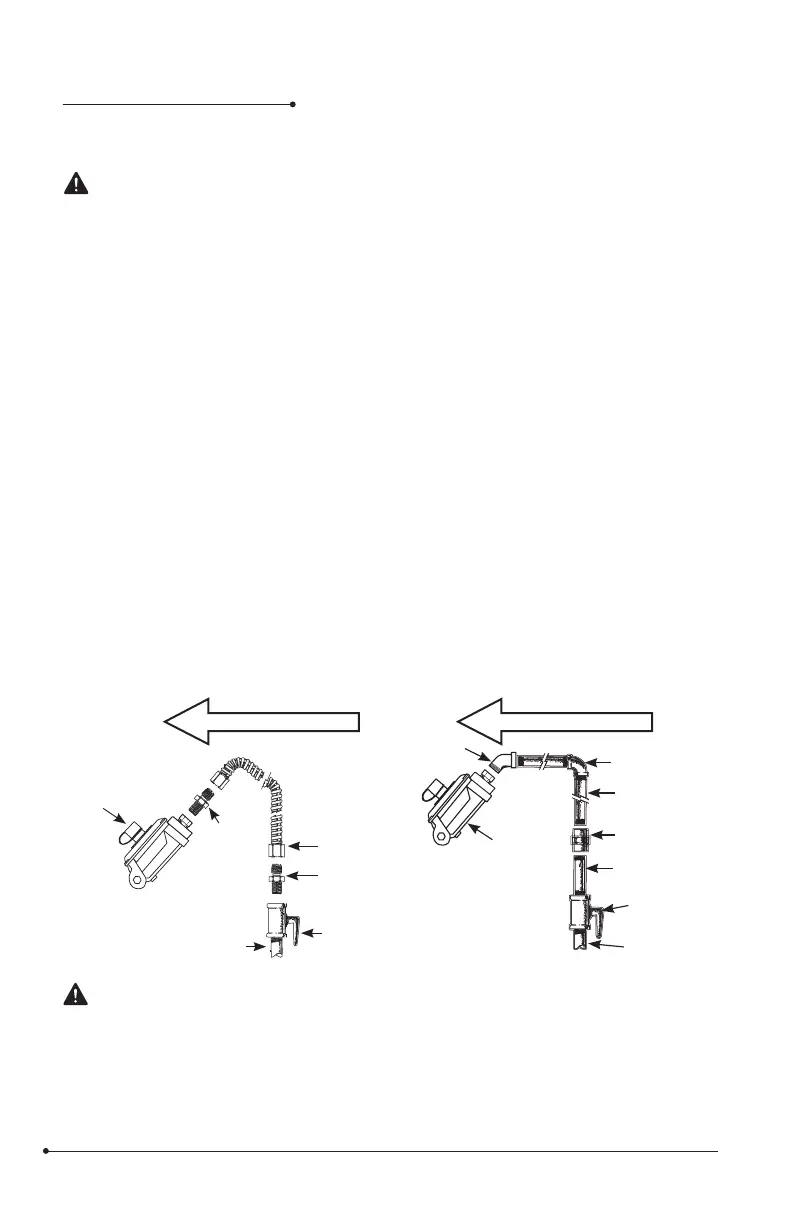

Connector connection
Gas flow in the kitchen
Pressure
regulator
Enbow
connector
Threaded
nozzle
Union
connector
Threaded
nozzle
Gas
shutoff
valve
Gas Pipe
Pressure
Regulator
Gas flow in the kitchen
Flexible
pipe
connector
Connector
Gas Pipe
Connector
gas
shutoff
valve
Flexible
Option
Rigid pipe
option
Enbow
connector
