9 VICTOREM 2KSDI-Mini User's Manual
2.1 Mechanical Specifications
Summary of mechanical specifications are shown in Table 3.
Specification Description
Size 33.0 mm x 44.0 mm x 53.7 mm
Weight 140 g (with no lens)
Mounting Holes Bottom – 4x M3 x 0.5
Other sides – 2x M3 x 0.5
Power Connector Male 6-pin push pull Hirose
Mating connector: HR10A-7P-6S(73)
Lens Connector USB Mini B
Video Output 2x DIN 1.0/2.3 type
Sync Input 1x DIN 1.0/2.3 type
Table 3. Mechanical specifications
2.2 Power
2KSDI-Mini cameras are powered using a 7-19V DC power source. The power connector is shown in
Figure 2, and the pinout is shown in Table 4. When using active EF lens mount the power supply must
be 8-16V DC.
Pin Description
1 NC
2 RS485 (A) –
3 7-19V
4 NC
5 RS485 (B) +
6 GND
Table 4. Power connector Pinout
IO Industries Inc. www.ioindustries.com Revision 3.0

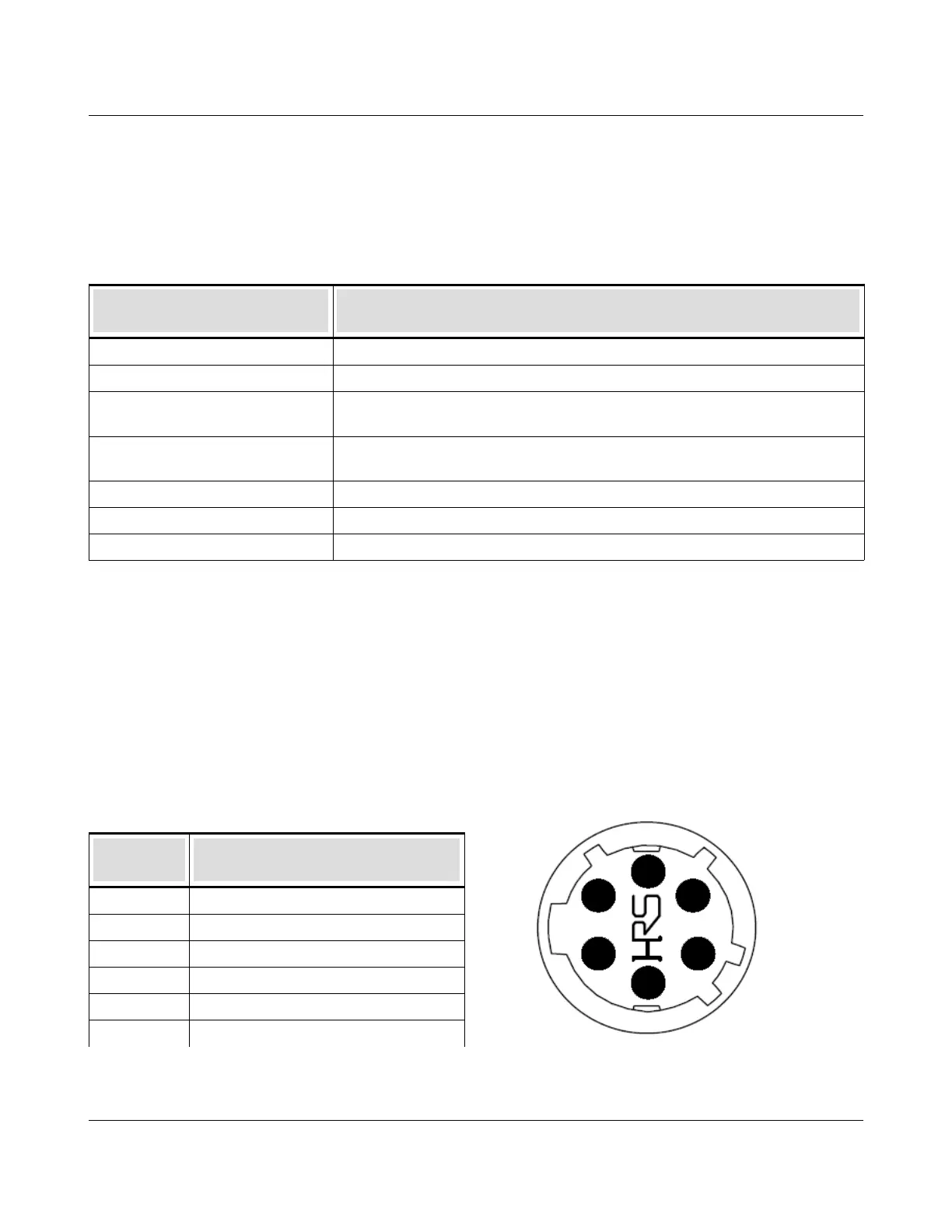

Figure 2. Power Connector
1
2
3
6 4
5
