4

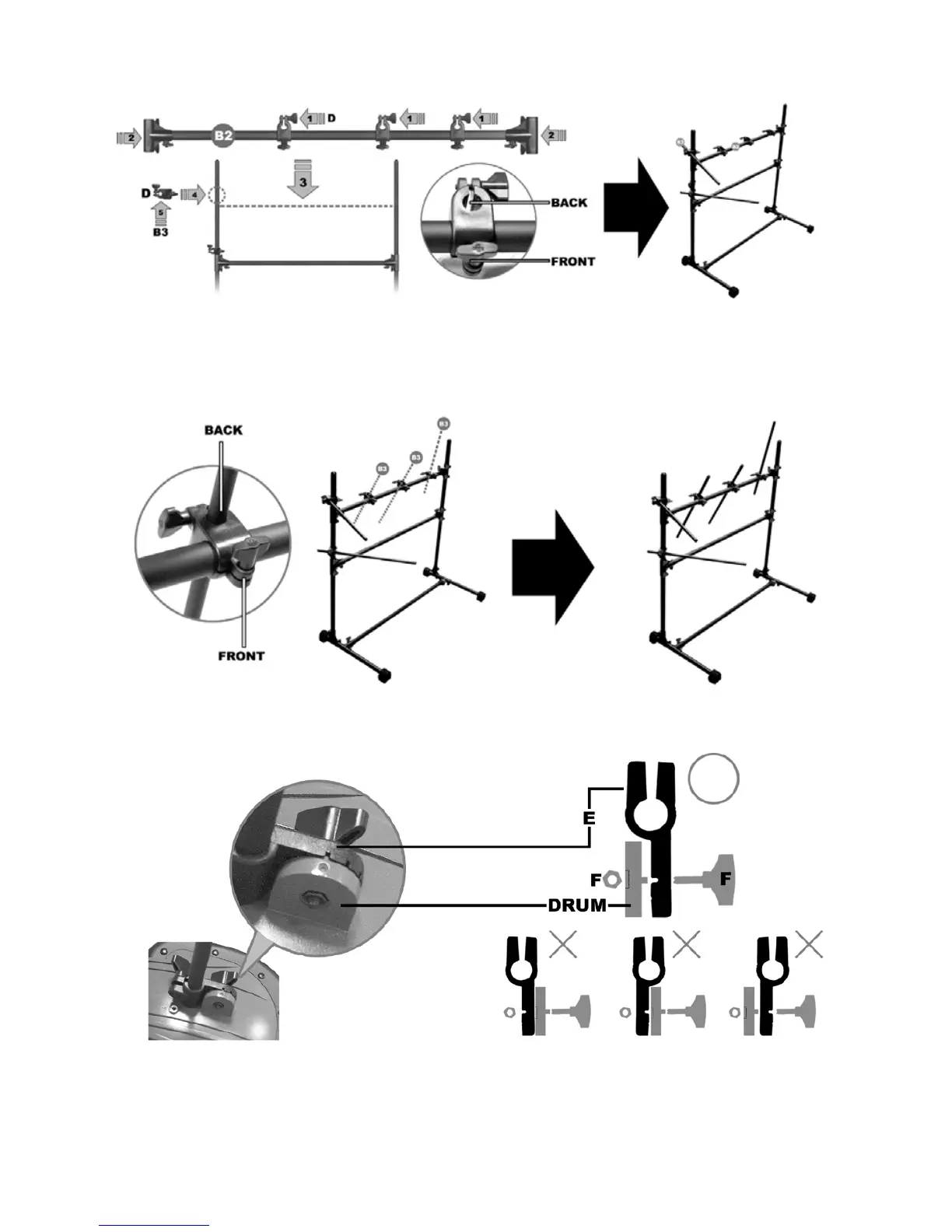

4. Insert three clamps (D) on to a horizontal bar (B2) and put two horizontal clamps (C) on the end.
Slide the assembly onto the two vertical bars as shown. Now slide another clamp (D) down the left
hand vertical bar which is going to be used for the Hi-Hat. Then slide one small bar (B3) into the
clamp (D) as shown.
5. Insert three small bars (B3) in the remaining clamps (C) on the top horizontal bar.
6. Attach five part (A3) to each of the five drum pads. Attach the bolt and nut (F) as shown.
