Quick Setup Guide
1. Make sure all items listed on the front of this guide are included in the box.
2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT

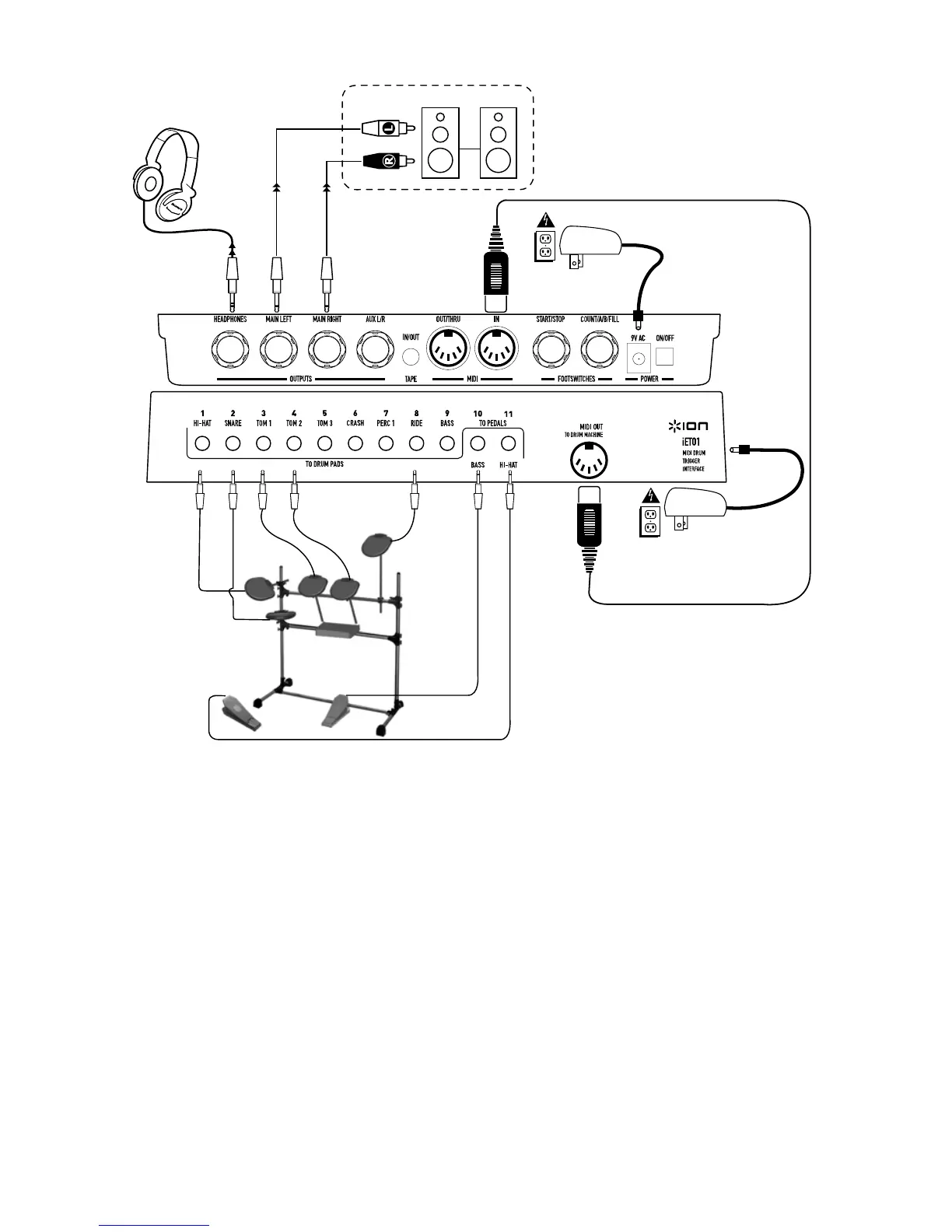

3. Study this setup diagram.
4. Place drum set in an appropriate position for operation.
5. Make sure all speaker devices are turned off and all volume/faders are at “zero.”
6. Connect all input sources as indicated in the diagram.
7. Connect the outputs to headphones, and/or powered amplifier stereo system.
8. Plug in both power adapters and other devices into AC power.
9. Switch everything on in the following order.
a. iET01 Drum Trigger Box.
b. iDM01 Drum Machine.
c. Any external speakers.
10. When turning off, always reverse this operation by,
a. Any external speakers.
b. iDM01 Drum Machine.
c. iET01 Drum Trigger Box.
NOTE: Speakers are NOT included. As shown in the above figure, the supplied RCA cable is used to
connect to an external amplifier, mixer, or a home stereo systems.
