ION IED01 User Manual

5

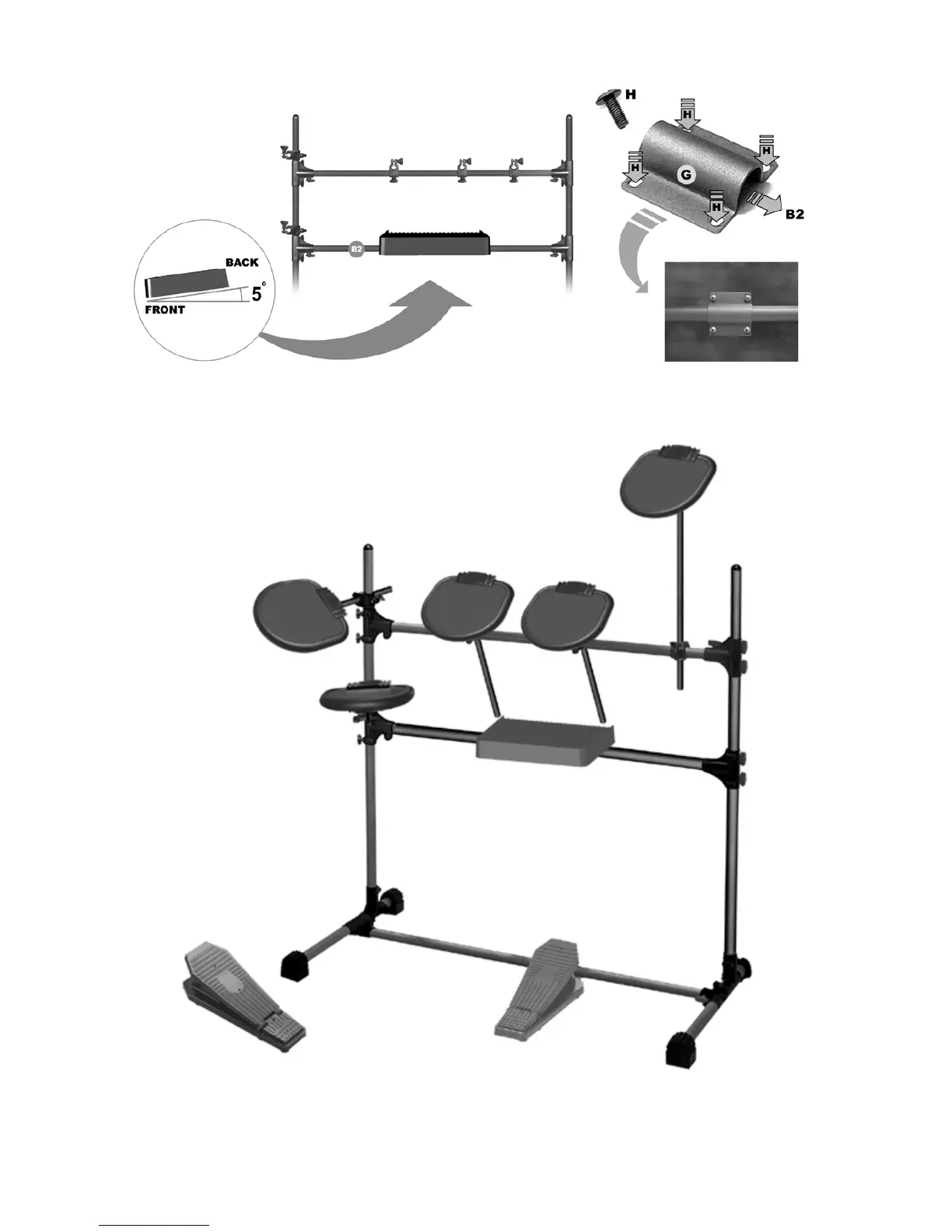

7. Attache the mounting bracket (G) to the back of the iET01 Trigger Box as shown in the figure.
Attach to lower horizontal bar as shown in figure and angle accordingly. The iDM01 Drum Machine
will rest on top of this.
8. This is how the finished assembly will look.
9. Attach the iDM01 Drum Machine on top of the iET01 Trigger Box using the velcro strips.
