iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | support@ioptron.com | www.iOptron.com
HAE is operated under unbalanced condition and could be tipped off if tripod is not secured.

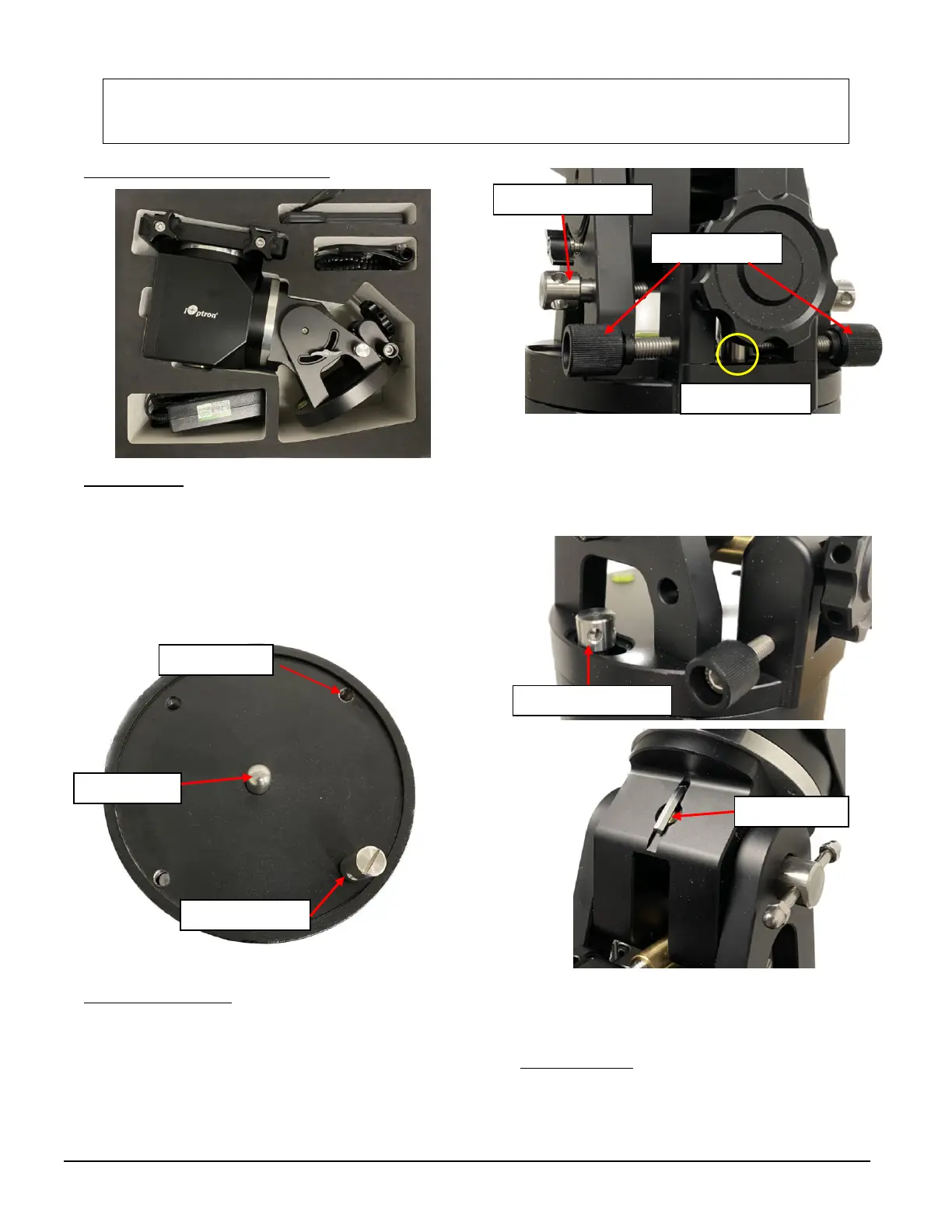

1. Remove mounthead from package.
2. Set up tripod: The HAE69 has a 150mm base. An
optional LiteRoc tripod #8023ACC or a tri-pier #8034
may be used. Setup and level the tripod. Adjust the
tripod height. Tighten tripod locking knob to secure
the tripod. Thread the Alignment Peg onto the tripod
head, on top of a tripod leg or between two legs
depending on the latitude. Use two outside threaded
holes to secure the mount head.
3. Attach mount head: Retract the 2x Azimuth (Azi)
Adjustment Screws from both sides to leave ample
space for the alignment peg to be fitted in between
the 2xAzi Adjustment Screws.
Remove Azi Locking Screws from the mount altitude
arm. Secure the mount head by tightening the Azi
Locking Screws into the M8 holes on the tripod. There
is an Allen wrench stored on the mount base for
tightening the screws.
Level the mount by adjusting the tripod legs. Use the
built-in Bubble Level Indicator on the mount base or
an external leveler for this purpose.
4. Adjust latitude: The HAE69 has three latitude range
settings: 0°~34°, 28°~62° and 56°~90°. The default
position is 28°~62°. To adjust the latitude, loosen the
Secondary Locking Lever on the altitude arm. Insert
