iOptron iPolar Installation

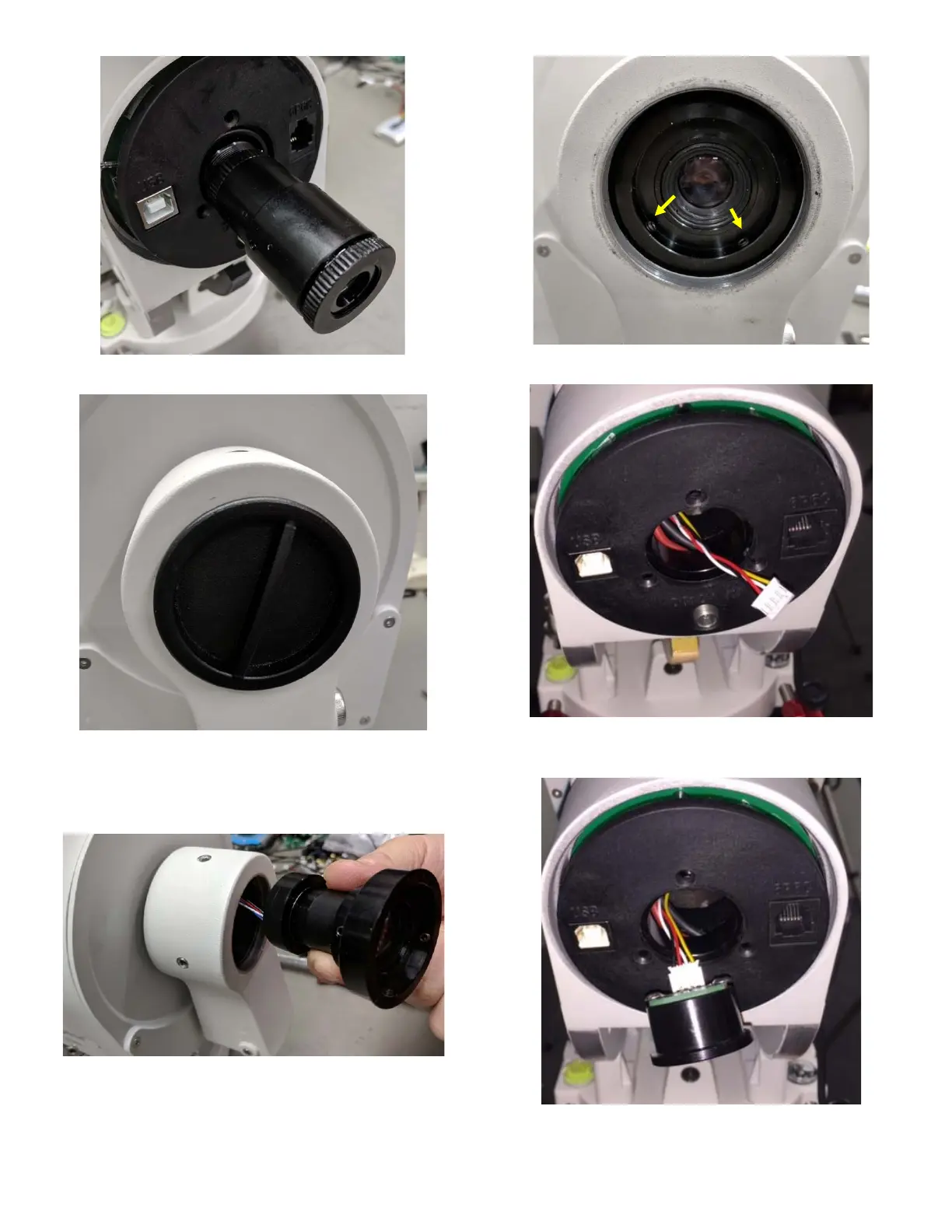

6. Remove polar scope front cover.
7. Plug the 4 wire cable to the iPolar. Insert it
into the CEM60 RA axle. You may use a
wire to pull the cable to the rear of the RA
axle.
8. Slightly tighten two set screws on iPolar
CEM60 adapter to secure the iPolar inside
the RA axle.
9. Pull the 4-wire cable from the rear end.
10.
Plug the cable into the socket on the rear
end USB adapter.

iOptron iPolar Specifications

General

Sensor Type	CMOS
Resolution	1280 x 960
Interface	USB 2.0
Type	Electronic Polar Scope
Accuracy	30 arcseconds
Software	iPolar Software
Operating Temperature	-20°C to 50°C
Humidity	10% to 90% non-condensing
Power Requirements	5V DC via USB
Storage Temperature	-20°C to 60°C
