Install Hard Drives

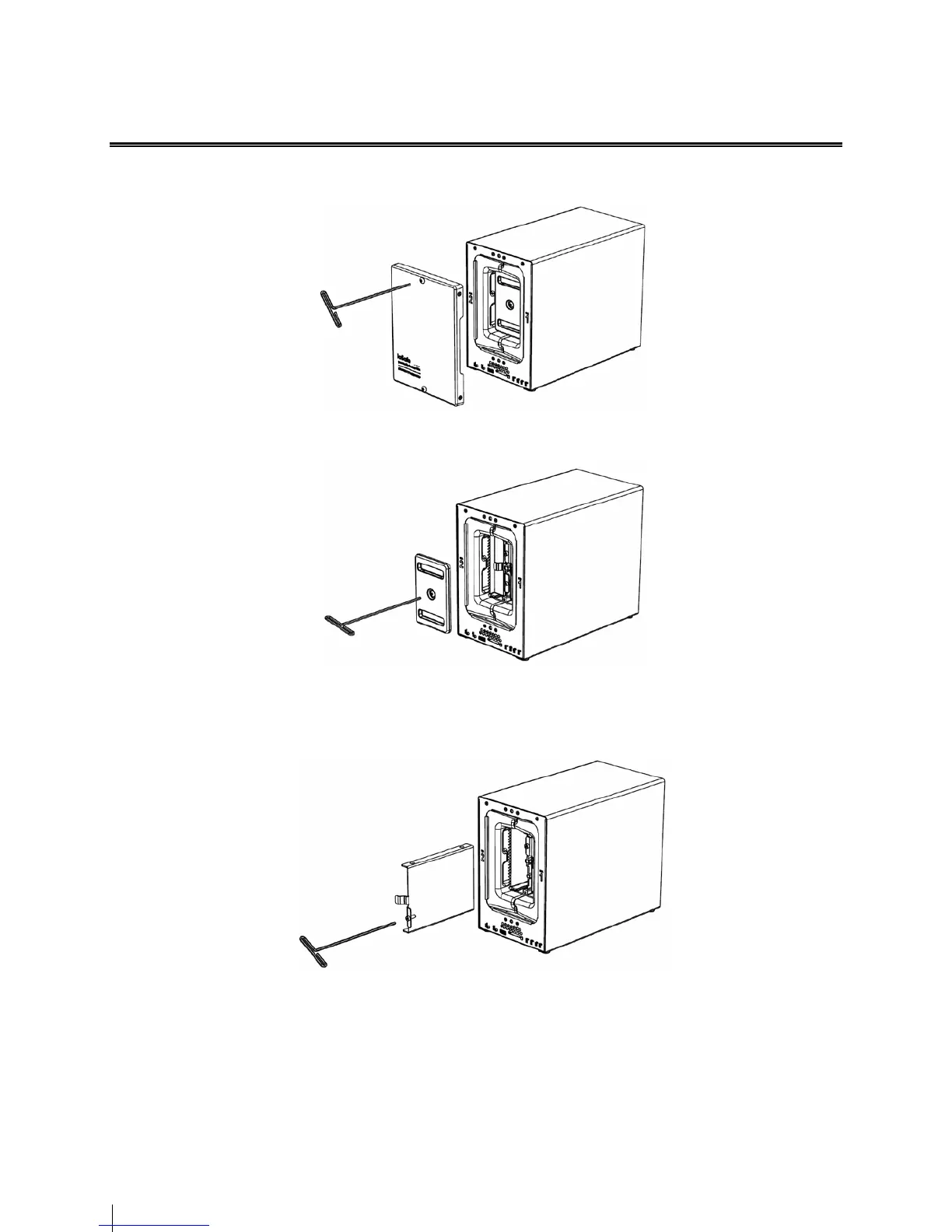

1 Remove the Front Cover using the included 3mm Hex Tool.

NOTE: All hex screws used in the 214 are designed to be captive to avoid accidental loss.

2 Remove Waterproof Drive Cover using the 3mm Hex Tool.

3 Remove both of the Drive Trays using the provided 3mm Hex Tool.
