(3) 3 Phase 240V High Leg Delta Configuration
3 Phase delta configuration is supported
ONLY with a grounded center-tapped leg, and
ONLY using the legs on each side of the

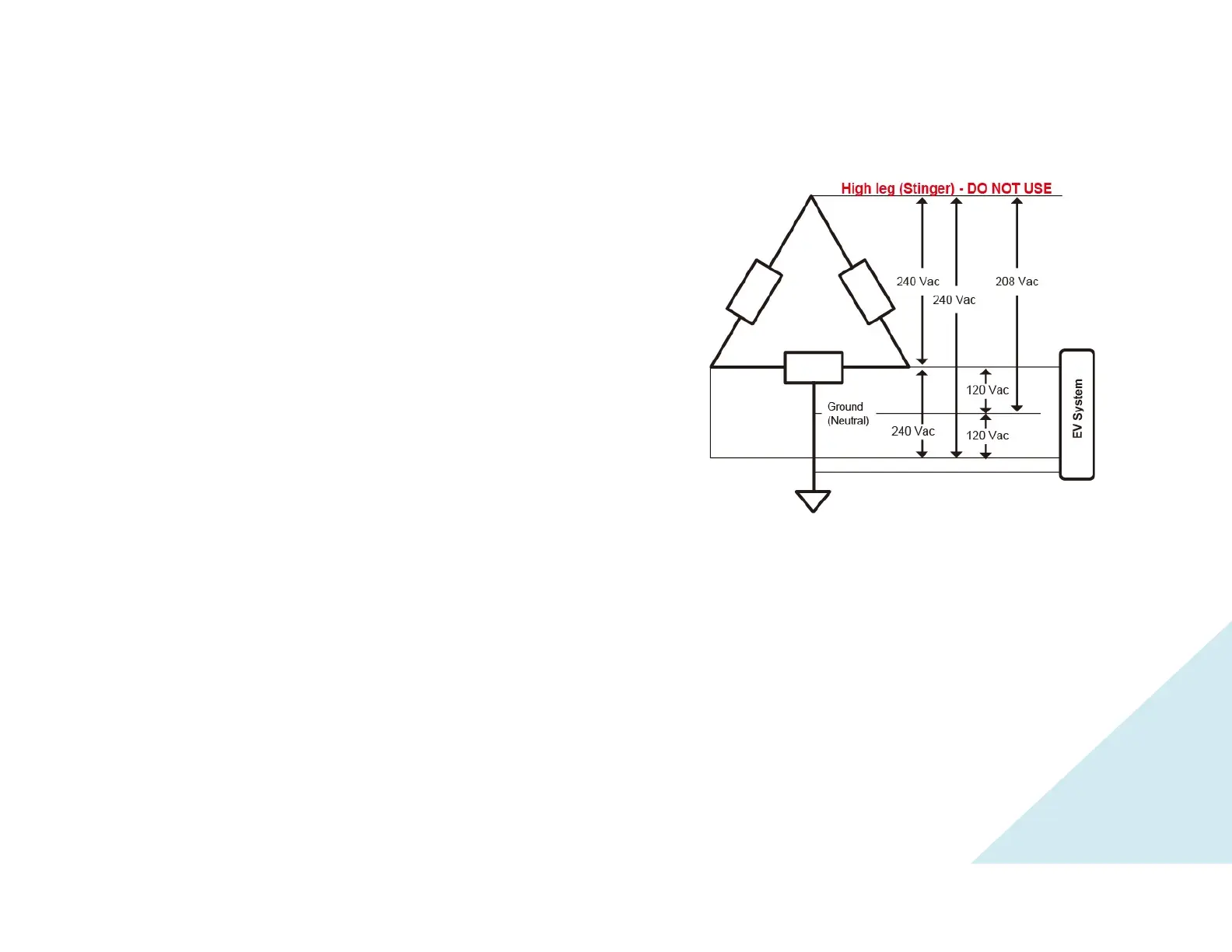

center tap. See the diagram to the right.
Important: Do NOT use High leg and
ensure that 120V is measured from L1/L2 to
GND
