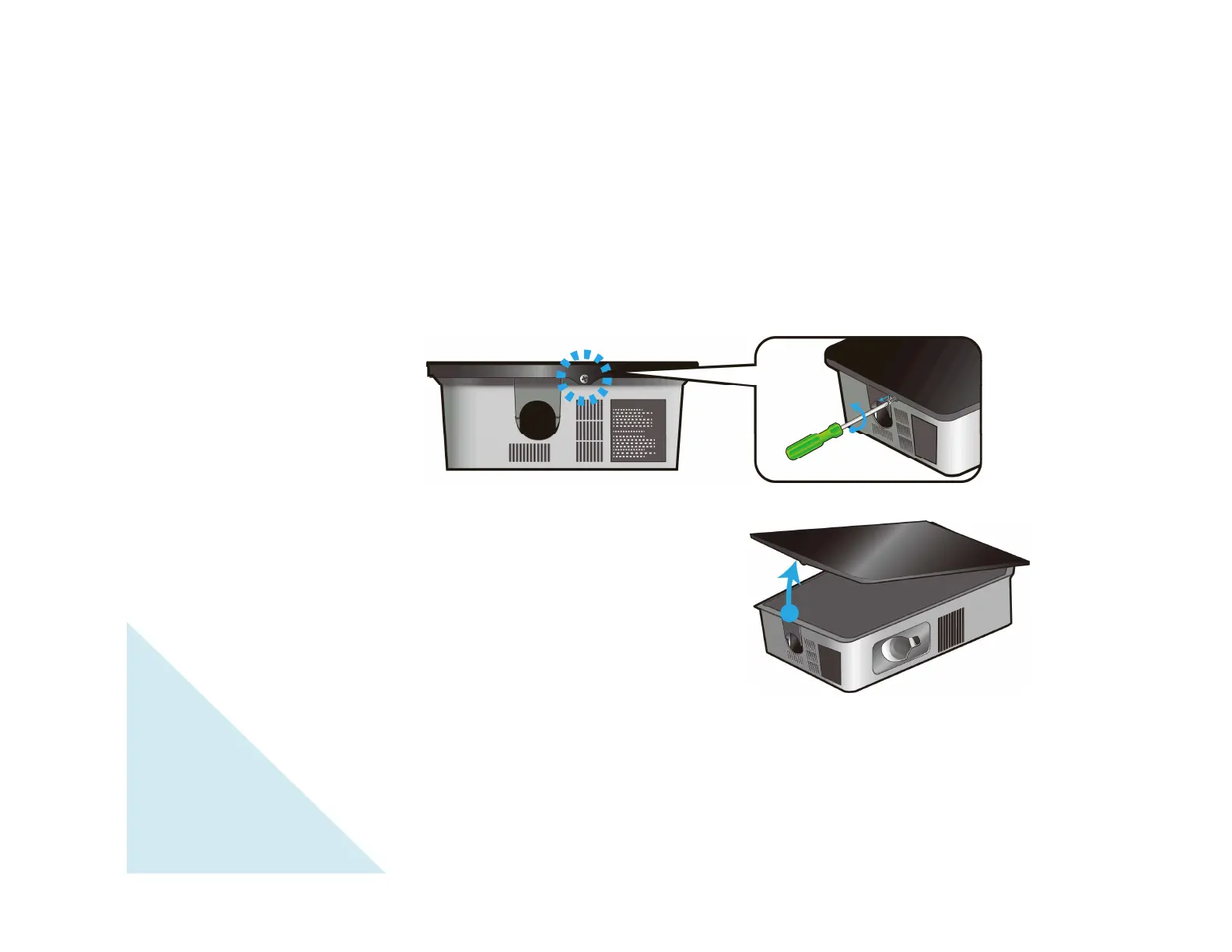

Open the front cover
1. Locate the fixing Torx screw on the bottom side of the cover. Use a T20 Torx screwdriver to
unscrew the fixing screw of the cover. No need to remove the screw, just make sure it is loose.
2. Hold and lift the cover from the bottom end.
3. Keep the cover in a safe place.
