Drill the mounting holes
(NOTE: For how to access to the back panel area,
please see page 20.)
1. There are 4 holes which need to be drilled to mount
your EV Charger to the wall.

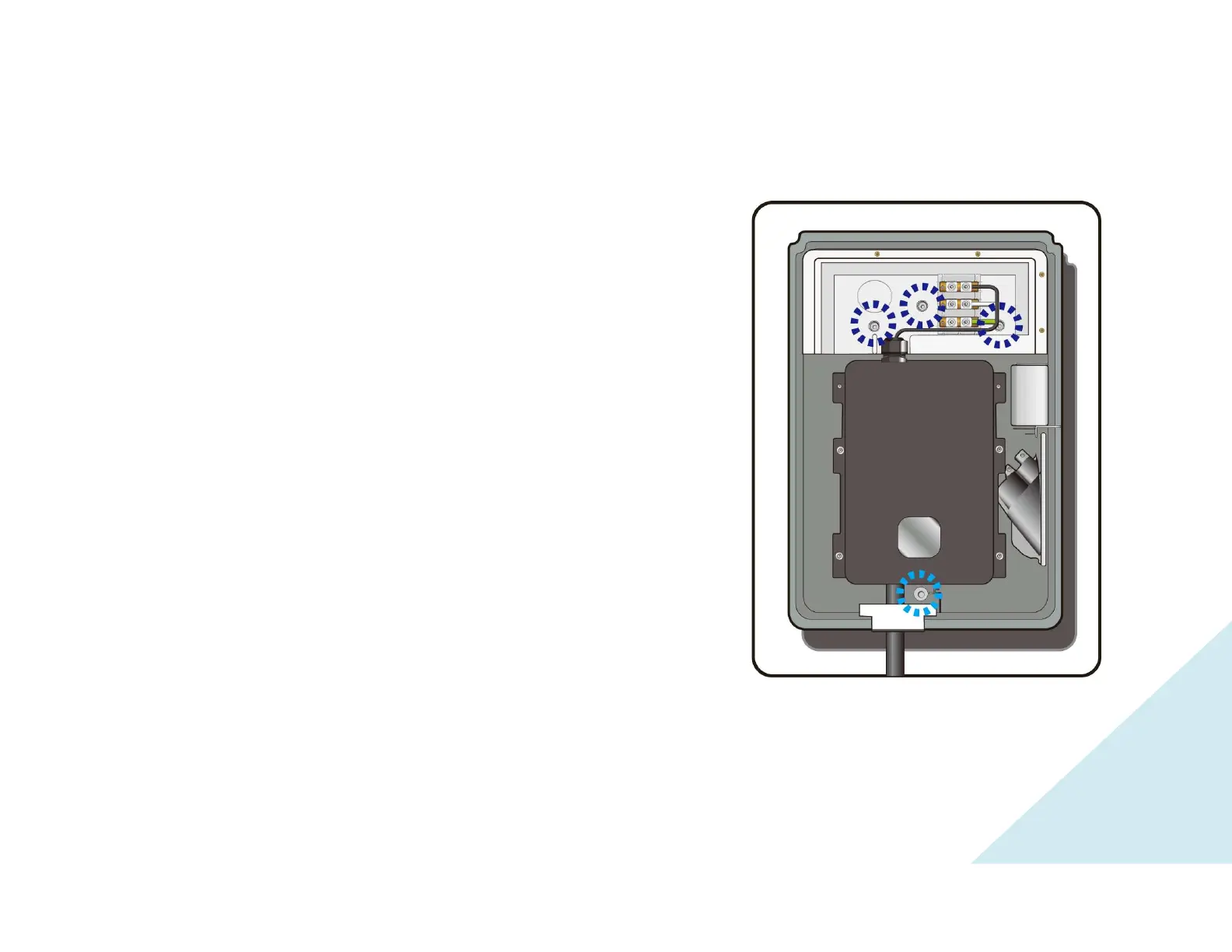

The 4 holes can be found as shown on the right.
2. Drill the holes to fit M8 mounting screws.
3. Drill the holes at corresponding locations on the wall or
backplane.
If mounting in an inside location that is not exposed to
water, any portion of the back box can be used to drill and
install customer provided mounting hardware; such as the
case when installing onto drywall where fastener position
must be adjusted to find in-wall studs.
