The eight (8) RJ-45 connectors on the rear panel of LIK-MFIM50B are terminated for
miscellaneous functions, BRI Lines, and FXS devices. The Miscellaneous, BRI and telephony
connectors are terminated as shown in section 4.4.4.1, section 4.4.4.3 and section 4.4.4.2,
respectively.
Wire Miscellaneous function connectors as depicted in the sketches of Figure 4.4.2-2.
Wire the FXS telephony ports as shown in Figure 4.4.2-2.
Wire the ISDN-BRI lines as shown in the figure.
Tag or number wiring for maintenance.

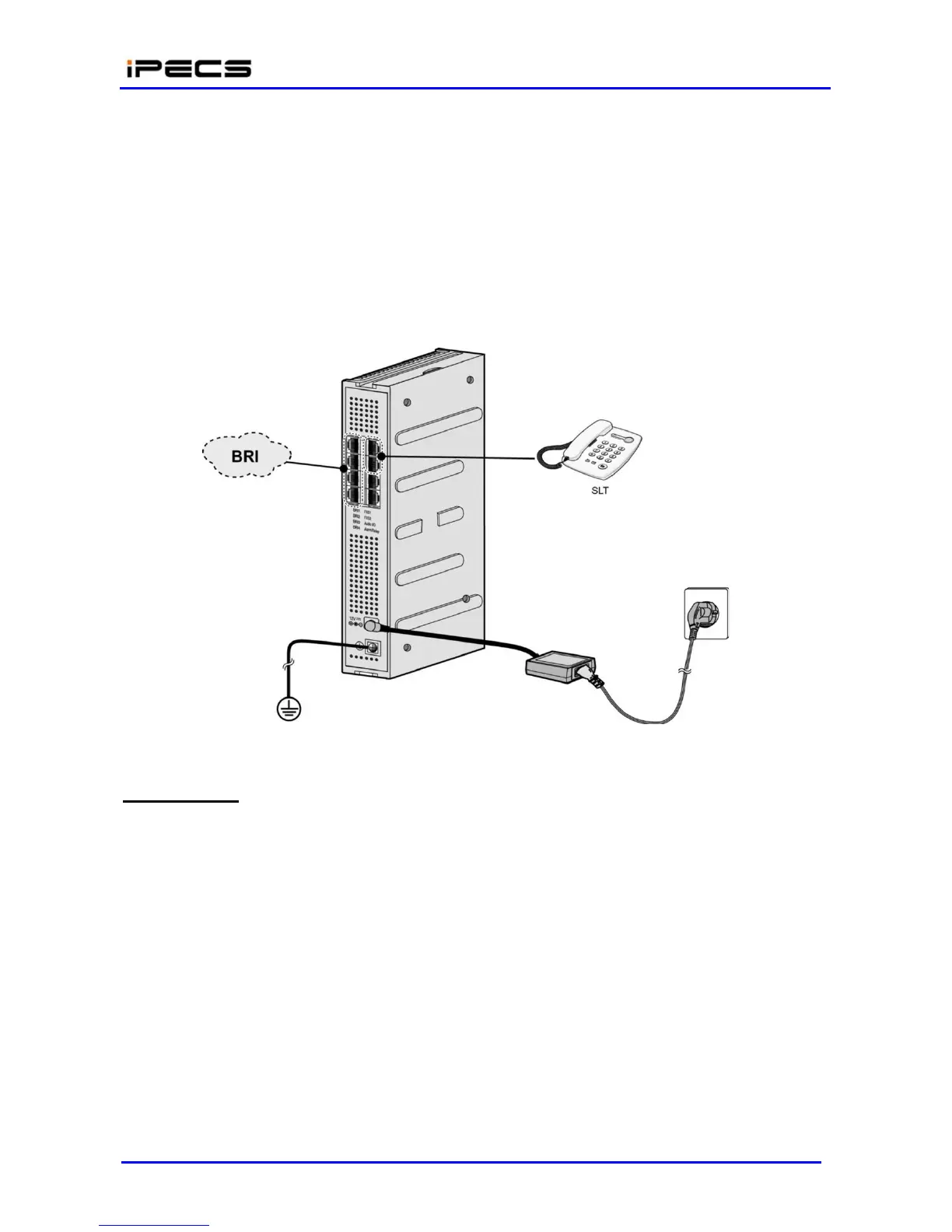

Figure 4.4.2-2 Wiring in the rear side of LIK-MFIM50B
AC/DC Adapter
The AC/DC Adapter is plugged into a live AC outlet and the Power jack of LIK-MFIM50B.
Assure that the rating of DC voltage is 12Vdc.
