IPLINK Technology Corp.
IP-WDL-RT1T1R-B 150M Wireless N ADSL2+ Router
Chapter 2. Hardware Installation

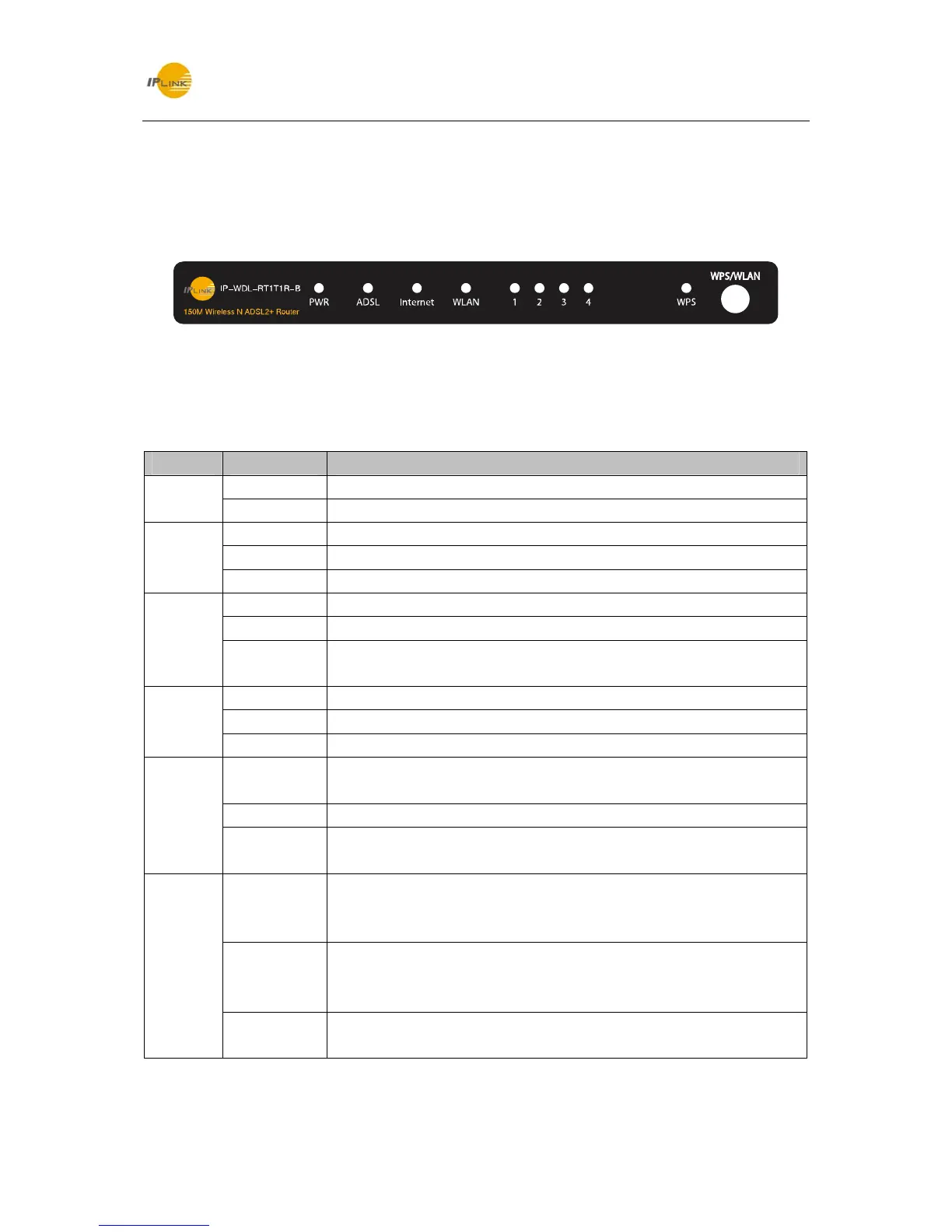

2.1 The Front Panel
Figure 2-1
The LEDs are located on the front panel. They indicate the device’s working status. For details,
please refer to LED Explanation.
LED Explanation
Name Status Indication
On Power is on.
PWR
Off Power is off.
On The LINE port is linked up.
Flash The ADSL negotiation is in progress.
ADSL
Off The LINE port is linked down.
On A successful PPP connection has been built.
Flash Data is being transferred over the Internet.
Internet
Off
There is no successful PPP connection or the Router works on
Bridge mode.
On The wireless function is enabled but no data is being transmitted.
Flash There is wireless data being transmitted.
WLAN
Off The wireless function is disabled.
On
There is a successful connection on the corresponding 1-4 （LAN）
port but no activity.
Flash Data is being transferred over the 1-4 (LAN) port.
LAN(1-4)
Off
There is no connection on the corresponding 1-4 (LAN) port or the
connection is abnormal.
On
A wireless device has been successfully added to the network by
WPS function. The LED will keep on for about 5 minutes and then
turn off.
Flash
The WPS function is enabled but no wireless device has been
successfully added to the network by WPS function. The LED will
keep flash for about 2 minutes and then turn off.
WPS
Off
The WPS function is disabled or a wireless device failed to be added
to the network by WPS function.
WPS/WLAN: This button is used for both WLAN and WPS function. To use the WLAN function,
press it for less than five seconds; to use the WPS function, press it for more than five seconds.
4
