SECTION III
Operation
Page 3.3
BP+2.9X
11/95
3.4 Digital Monitoring Panel
The Digital Alarm Panel consists of eight (8) LED Indicator Lights, one (1)
LCD message screen, two Display Select pushbuttons, three (3) Parameter Adjust
pushbuttons, an ALARM SILENCE pushbutton and an EMERGENCY POWER
OFF (EPO) pushbutton. The Display Select buttons provide access to the various
data and messages which are displayed on the Message Screen. These include
detailed instructions for startup sequence, alarm parameters, available battery run
time and alarm conditions.

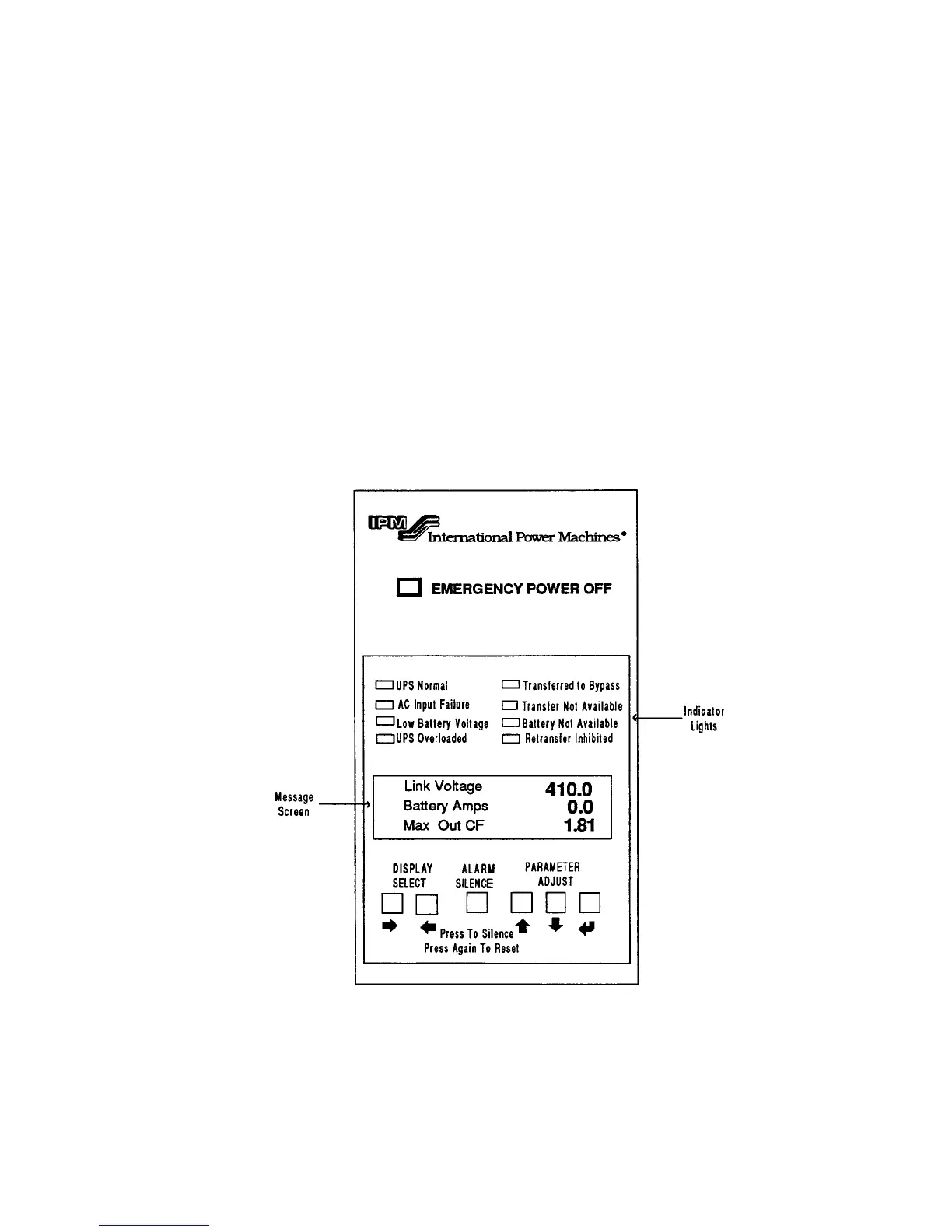

Digital Monitoring Panel
Figure 3.1
