1. Remove the two 8 mm nuts, and remove the muffler.
2. Remove the four 5 mm screws, and remove the muffler protector from the
muffler.
3. Remove the 4 mm screw from the spark arrester, and remove the spark
arrester from the muffler.
4. Use a brush to remove carbon deposits from the spark arrester screen. Be
careful to avoid damaging the screen.
The spark arrester must be free of breaks and holes. Replace the spark
arrester if it is damaged.
5. Install the spark arrester, muffler protector, and muffler in the reverse order of
disassembly using a new gasket.

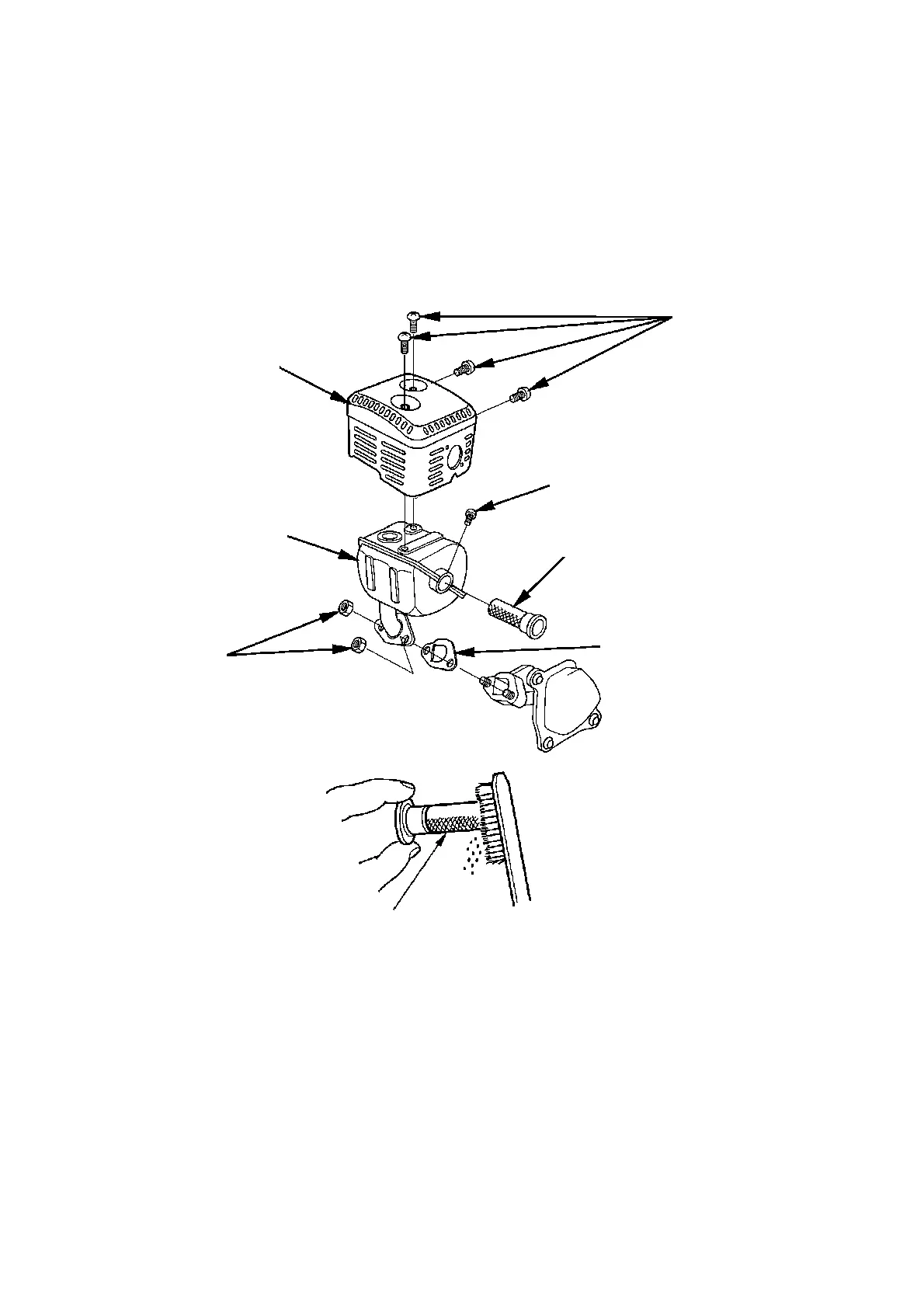

SPARK ARRESTER SCREEN
5mm
MUFFLER
4mm
8mm
GASKET
