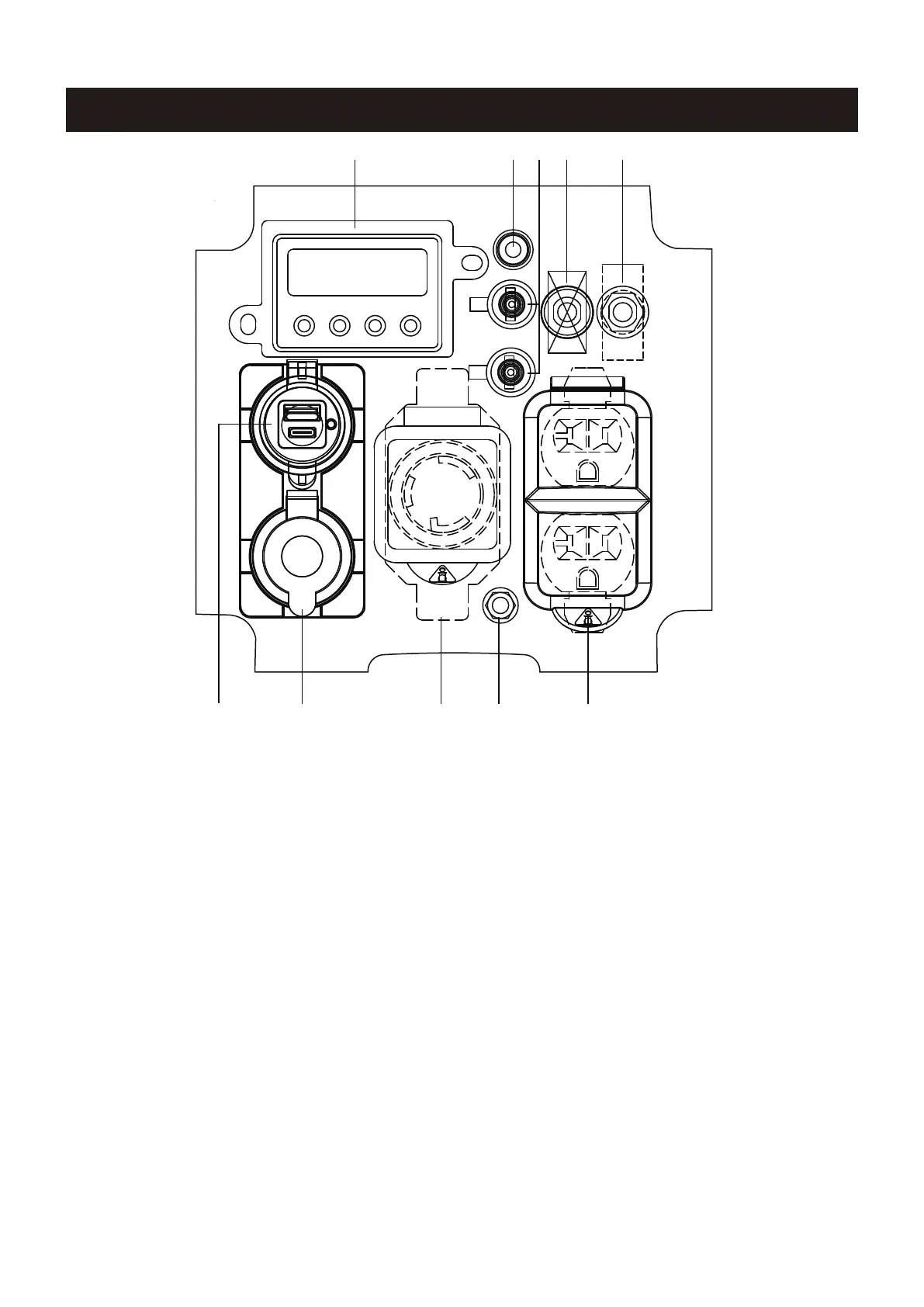

CONTROL PANEL FEATURES
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
1. LED DATA CENTER: See LED DATA CENTER
section.
2. CO (Carbon Monoxide) WATCH-GUARD Indicator
Light (Red for Shut off and Yellow for Service): The
CO (Carbon Monoxide) WATCH-GUARD monitors for
the accumulation of poisonous CO gas around the
generator produced by engine exhaust when the
generator is running. If the CO WATCH-GUARD detects
increasing levels of CO gas, it automatically shuts off
the engine. See CO WATCH-GUARD section for more
information.
3. Parallel Operation Outlets: These outlets are used
for connecting two AIPOWER inverter generators for
parallel operation. Do not connect or disconnect parallel
cables while the generator is running to avoid damage.
4. Circuit Breaker(DC): Protects the generator against
electrical overloads.
5. Circuit Breaker(AC): Protects the generator against
electrical overloads.
6. 120V AC, 20A Duplex, Single Phase, 60 Hz Outlets
(NEMA 5-20R): Each outlet is capable of carrying a
maximum of 20 Amp on.
7. Ground Terminal: The ground terminal is used to
ground the generator.
8. 120V AC, 30A Twist Lock outlet, single phase,60 Hz
Outlet (NEMA L5-30R): This receptacle can provide120
volt output up to 30 amps.
9. 12V DC, Outlet (Automotive): Provides 12 volt DC
power up to 8.3 amps.
10. 5V DC USB Outlets: Supply 3.6A USB-A type and
3.0A USB-C type for different applications.
12V
1 2 43 5
6
78910
