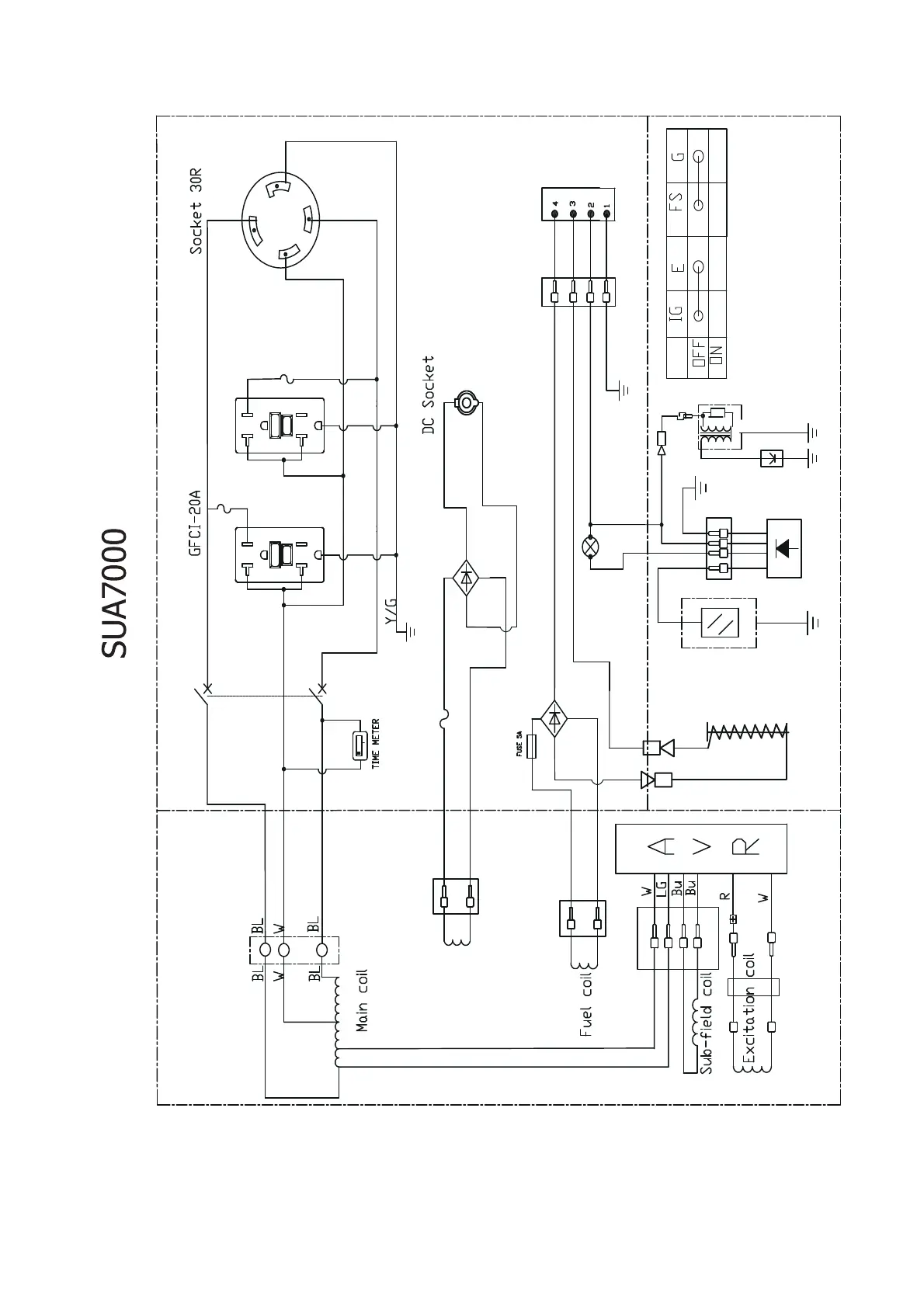

iPower SUA7000 - SUA7000 Electrical Diagram and Components; SUA7000 Electrical Diagram; SUA7000 Diagram Components

19
Alternator block
Fuel out solenoid
Rectifier
Br
Control panel block
Engine block
Br
Oil sensor
Spark
plug
Ignition
coil


 
Circuit breaker 25A
0.0
hours
1/10
Oil Alram Lamp
Oil alram
Blue
DC Coil

protector9A
Rectifier
Black-AWG12
White-AWG12
Black-AWG12
Yellow/Green-AWG12
Blue
12V
protector20A
protector20A
