IPSO 170 - 170 Pound Tumbler Dimensions and Exhaust Outlet Locations

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
6
4-08-45

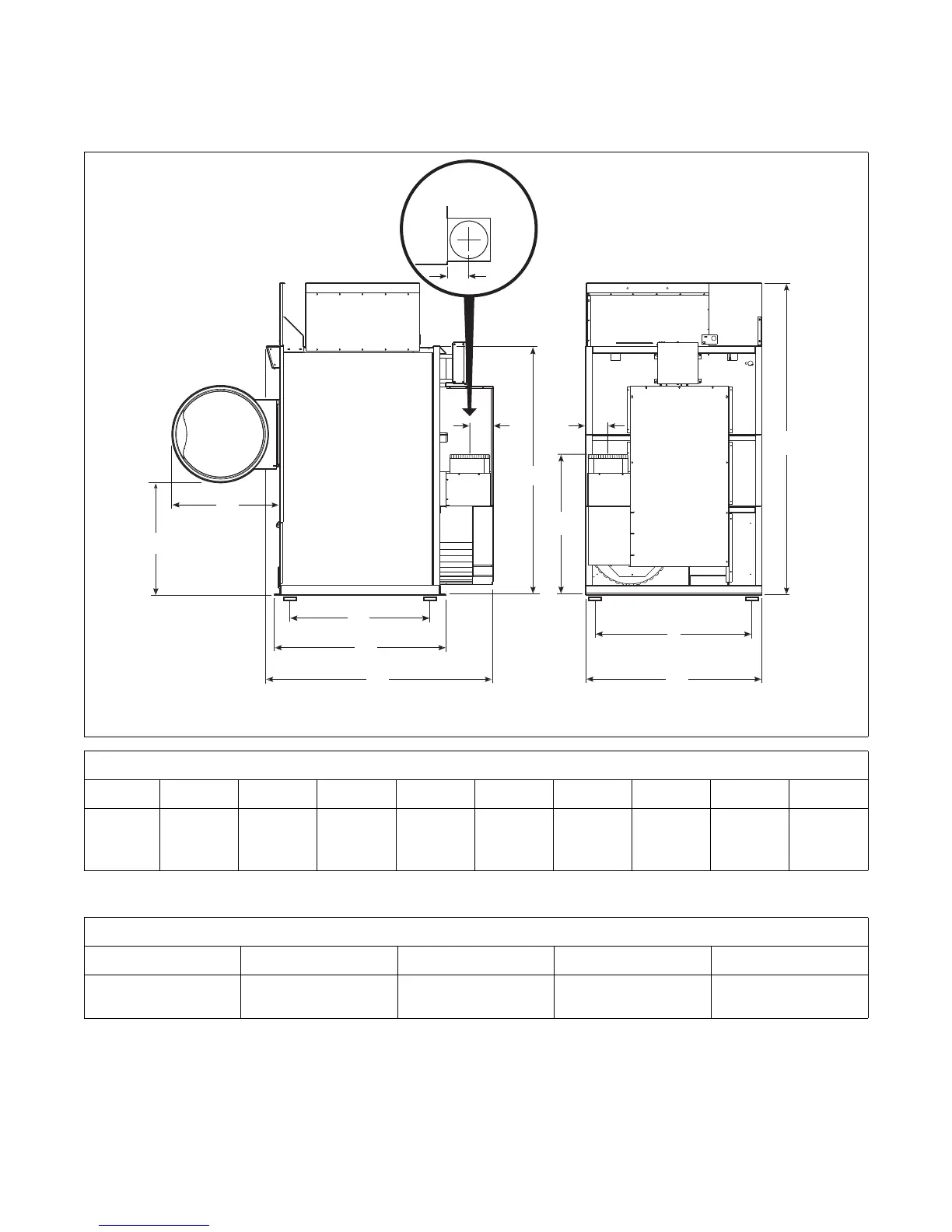

170 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
TMB2334N
A
B
C
D
W
H
F
Y
X
V
TOP VIEW OF
EXHAUST
DUCT
E
G
I
Cabinet Dimensions
ModelsABCDEFGH I
170L/N/S
33.86 in.
(860 mm)
32.5 in.
(826 mm)
50.75 in.
(1289 mm)
51.75 in.
(1314 mm)
68.85 in.
(1749 mm)
52.12 in.
(1324 mm)
53.12 in.
(1349 mm)
94 in.
(2388 mm)
75.12 in.
(1908 mm)
Exhaust Outlet Dimensions and Locations
Models V W X Y
170L/N/S
42.38 in.
(1076 mm)
6.75 in.
(171 mm)
6 in.
(152 mm)
7 in.
(178 mm)
