IPSO 170 - Electric and Gas Connection Locations for Gas Models

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 120 and 170
4-08-45
7

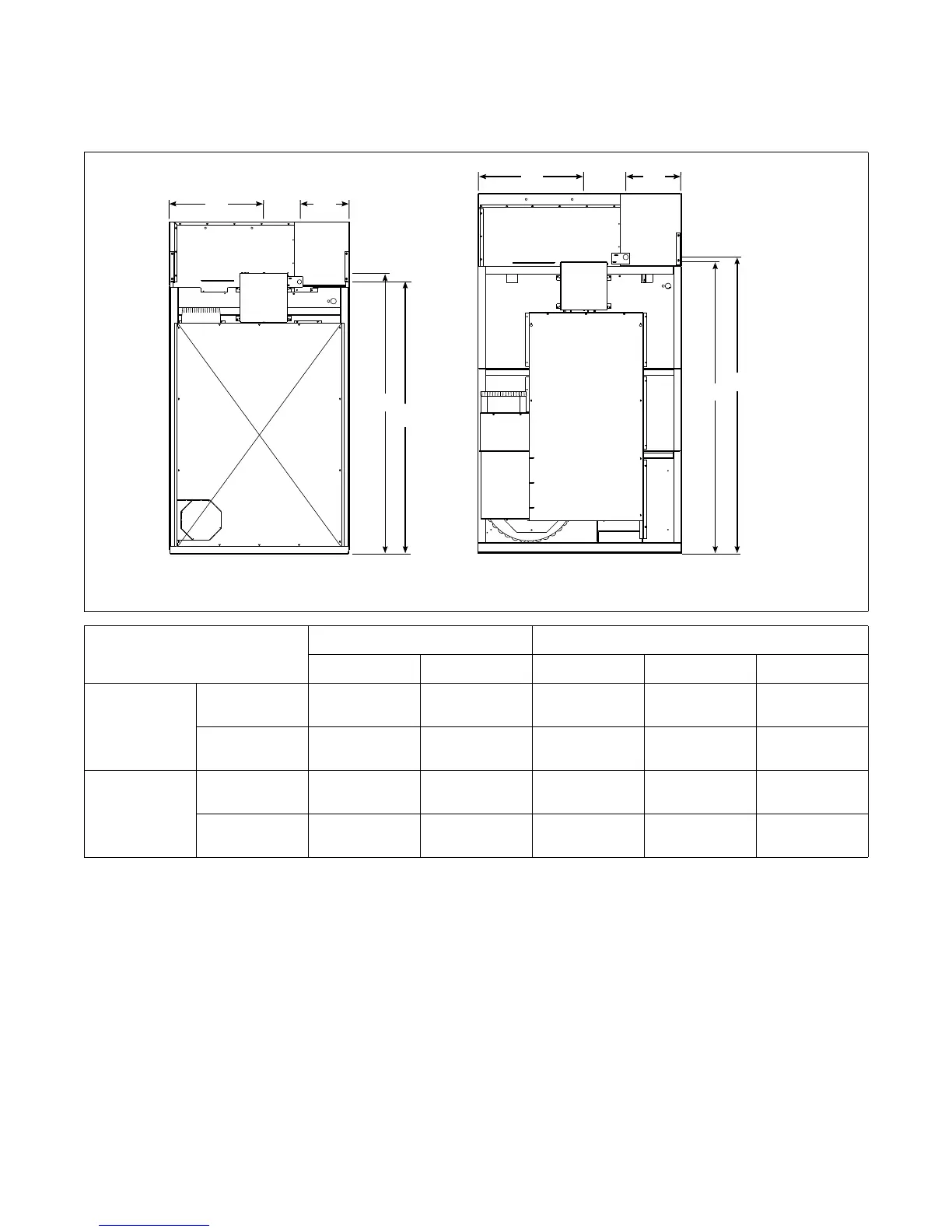

Electric and Gas Connection Locations
for Gas Models
NOTE: These figures are approximate dimensions only.
TMB1301N
A
C
C
A
B
D
B
D
120L/N
170L/N
Models
Electrical Connection Gas Connection
ABCDDiameter
Non-CE
120L/N 27.63 in.
(702 mm)
72.24 in.
(1835 mm)
12.78 in.
(325 mm)
70.12 in.
(1781 mm)
3/4 in. NPT
170L/N 31.12 in.
(790 mm)
76.11 in.
(1933 mm)
14.5 in.
(368 mm)
77.38 in.
(1965 mm)
1 in. NPT
CE
120L/N 19.69 in.
(500 mm)
74.98 in.
(1904 mm)
12.78 in.
(325 mm)
70.12 in.
(1781 mm)
3/4 in. NPT
170L/N 23.18 in.
(589 mm)
78.85 in.
(2003 mm)
14.5 in.
(368 mm)
77.38 in.
(1965 mm)
1 in. NPT
