IPUX ICS1330 User Manual

-45-

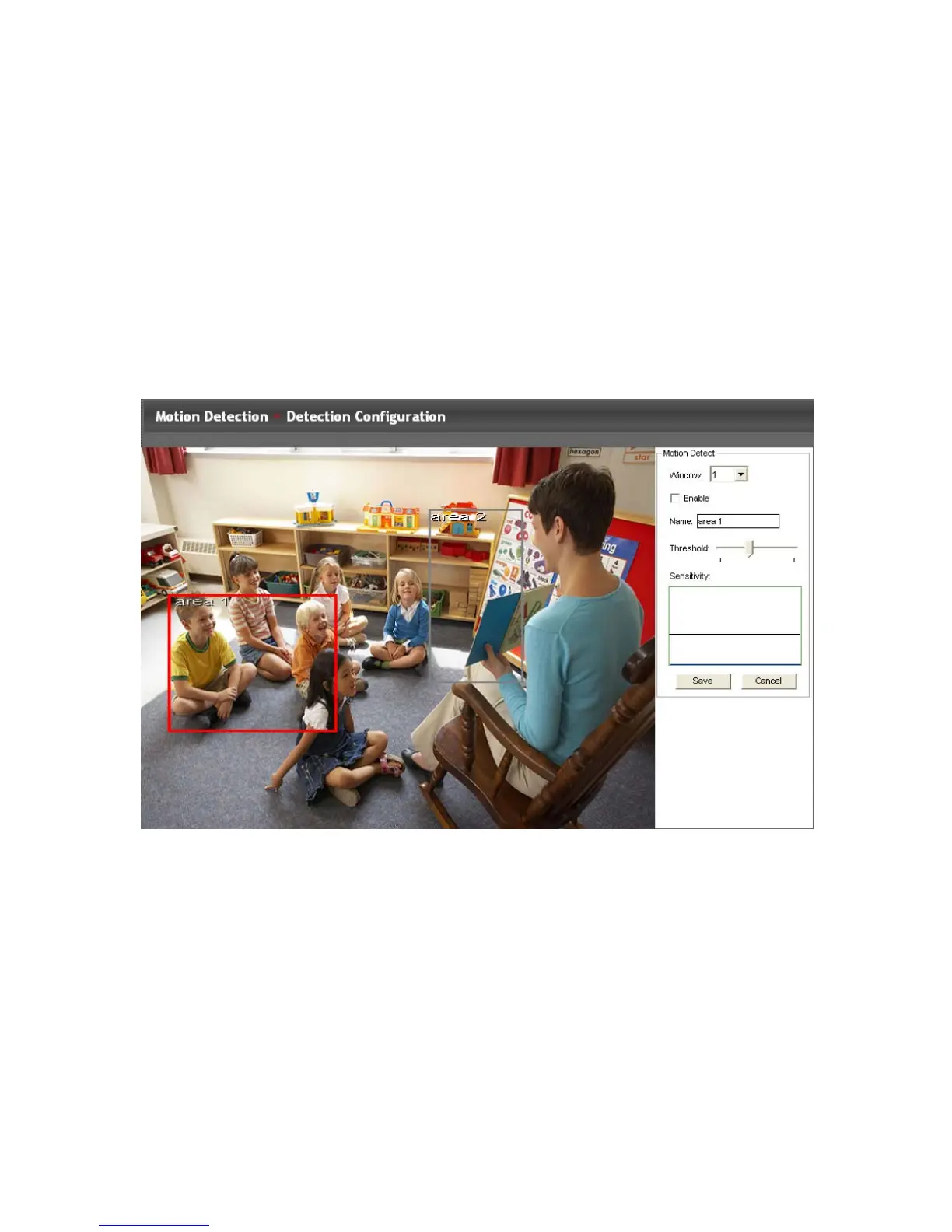

4.8 Motion Detect
The Motion Detect menu contains the command and option that
allow you to enable and set up the motion detection feature of the
camera. The camera provides two detecting areas.
To enable the detecting area, select Window 1 or 2 from the pull-
down list, and then select Enable. When the detecting area is
enabled, you can use the mouse to move the detecting area and
change the area coverage.
- Name: Assign a name to the detecting area.
- Threshold: Move the slide bar to adjust the level for detecting
motion to record video.
NOTE Sliding the Threshold bar to the right will decrease the
sensitivity of motion detection; sliding the Threshold bar to the
left will increase the sensitivity of motion detection

IPUX ICS1330 Specifications

General

Brand	IPUX
Model	ICS1330
Category	IP Camera
Language	English
