The mains supply must be fused at 3
amp.
 
If the appliance is installed in a cabinet, it
MUST NOT be used for storage purposes.
Any ventilation provided for the appliance
during installation MUST NOT be blocked
and a periodic check must be made
to ensure that the vents are free from
obstructions.
 
Use only a damp cloth and mild detergent
to clean the appliance outer casing.
DO NOT use abrasive cleaners.
 
It is essential that the instructions in
this booklet are strictly followed for the
safe and economical operation of this
appliance. The appliance functions as a
fan assisted balanced flue unit.
The flue ter m i nal
MUST NOT BE OBSTRUCTED under any
circumstances. If damaged, turn off
the appliance and consult the installer,
service engineer, or gas supplier.
If it is known or suspected that a fault
exists on the appliance it MUST NOT be
used until the fault has been rectified by
a competent person.

      

     

    

    

     

   
  
  


The time of day can be set by grasp-
ing the outer edge of the black dial
and turning it in a clockwise direc-
tion until the correct time is in line
with the white pointer.

The “ON” periods are set by sliding
the blue tappets, adjacent to the
time periods required, to the outer
edge of the dial.
The tappets that remain at the cen-
tre of the dial will be the “OFF”
periods.
    

– To select mode move the
selector switch in the middle of
the clock face to the
 posi-
tion.
– To select mode move
the selector switch in the middle
of the clock face to the posi-
tion.
– To select  mode move the
selector switch in the middle of
the clock face to the  posi-
tion.


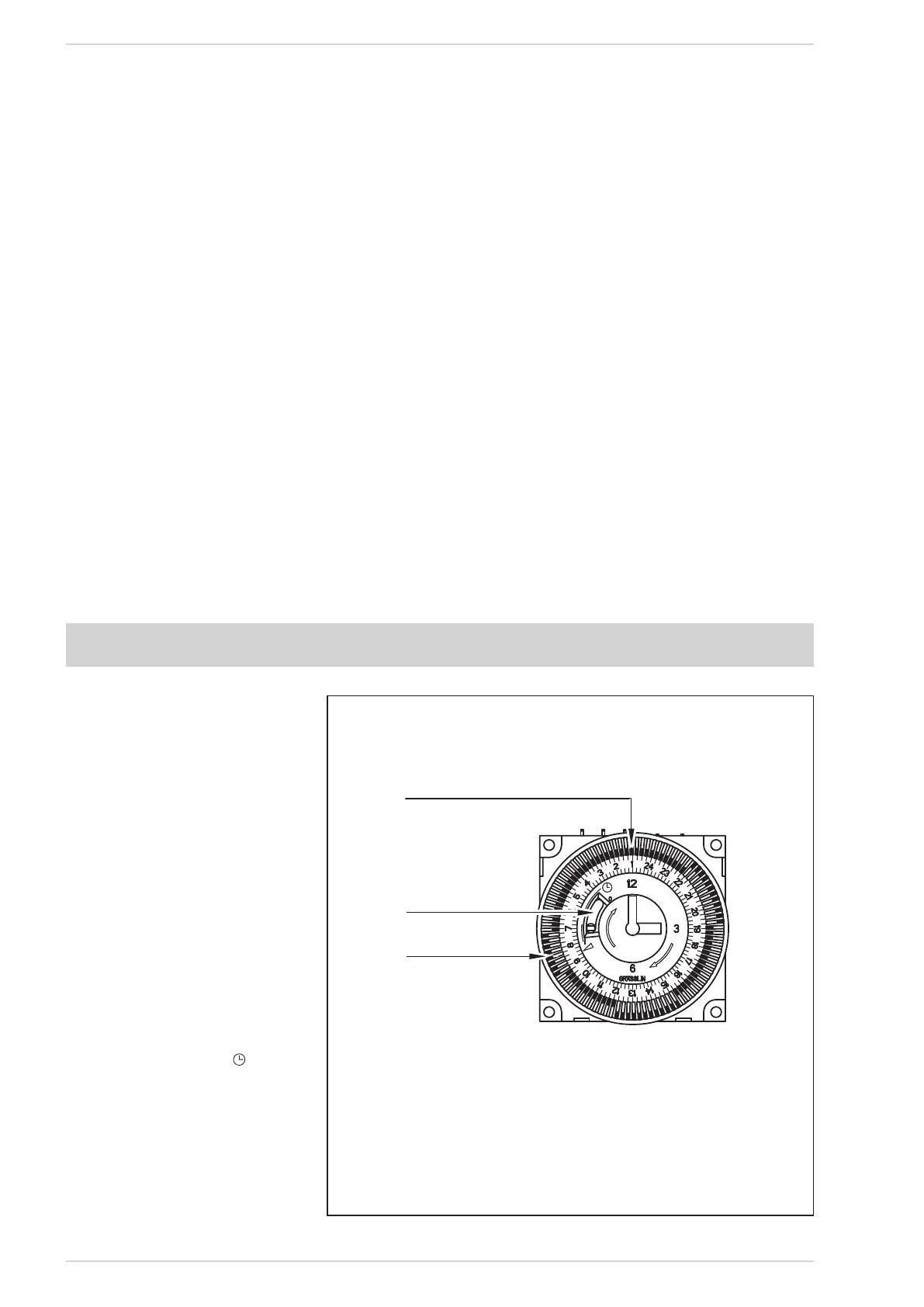

MECHANICAL 24 hr VERSION
Slide blue tappets
OUT for ON period
Slide blue tappets IN for OFF period
Mode selector switch
DIGITAL 7 DAY VERSION
Selects da
y
or da
y
groups for real time and programme time
Selects ON/OFF permanently when in real time (advance)
Reset
Selects programming
mode
Selects mode for
setting real time of day
Winter/Summer time
± 1 hr selector
Selects hours/minutes
for time of day
and programme times
Boiler ON (I)
PROGRAMMED
Boiler
Boiler OFF (O)
I
O
