32
4. MENU:turns on the main menu.
5. POWER:standby or power on from standby.

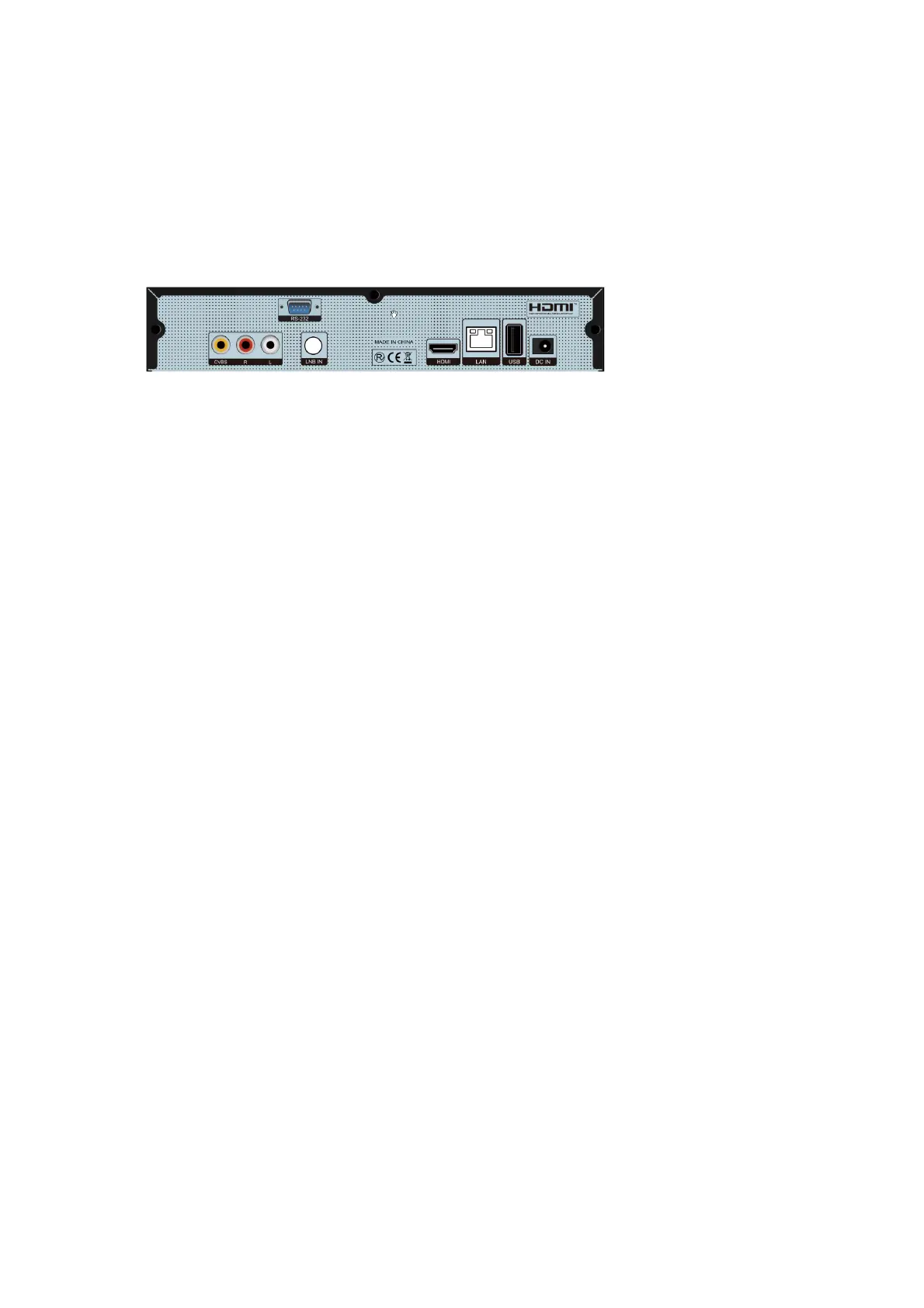

4.2. Rear Panel
6. CVBS: This socket issued a composite video signal.
7. Audio R/L: Outputs analog audio L/R.
8. RS232: upgrade software in special cases.
9. LNB IN: For DVB-S/S2 signal input.
10. LOOP OUT: To feed the signalto TV or another.
11. HDMI: High definition audio and video output used to connect to a HD device.
12. LAN: Connect the LAN cable to your router with DHCP enabled, the configuration is done
automatically.
13. USB 2.0: For USB PVR,Timeshift and media player,Wi-Fi/3G dongle.
14. DC IN: Connect the power with receiver.
