IriSys IRI 1011 - Page 22

IPU 40060 Issue 9
Page 22 of 27

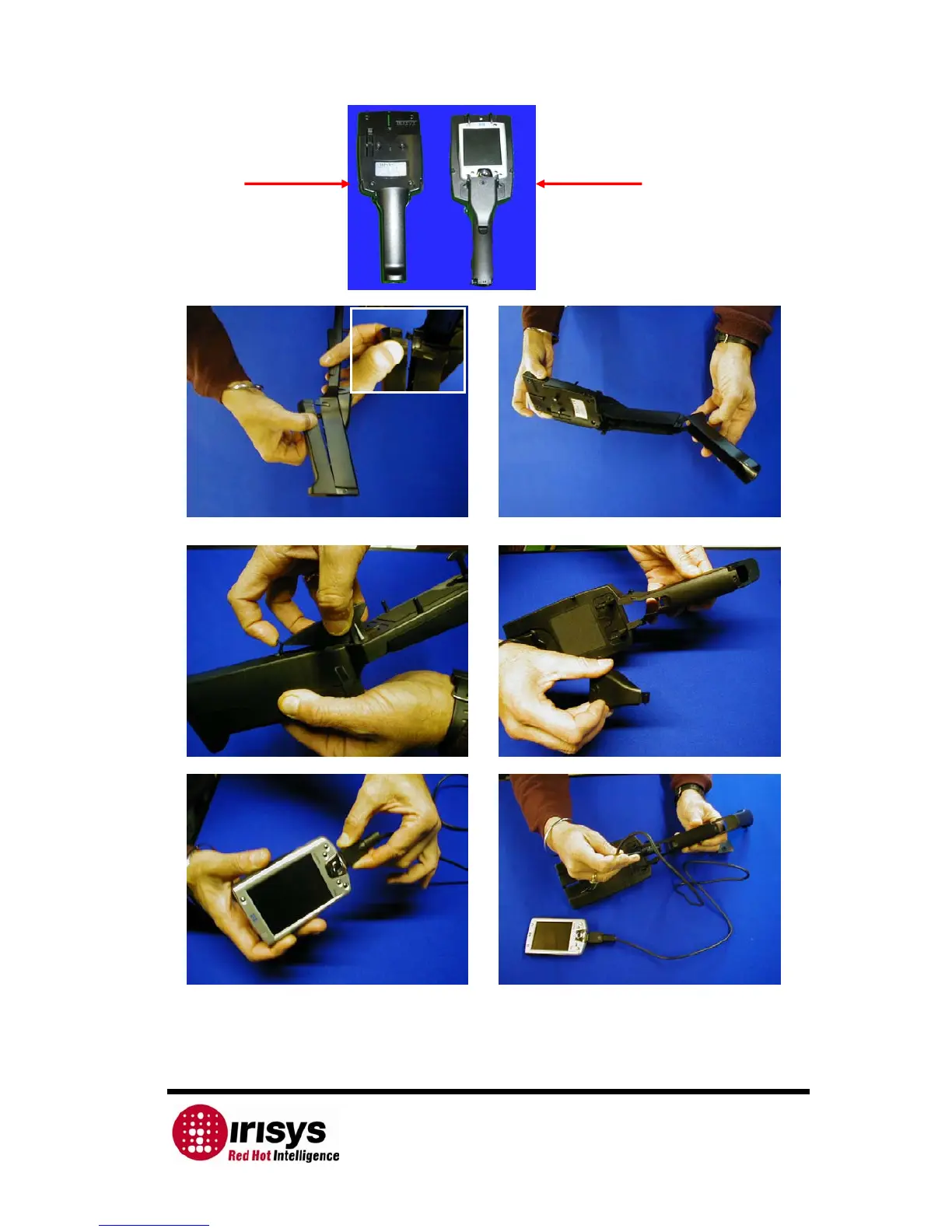

1) Squeeze the handle grip on both sides just 2) Open up the handle grip.
below the fastening clips.
3) Un-clip the cable connector cover. 4) Detach the cover and put it to one side.
5) Connect the serial synchronization cable into 6) Thread the other end of the cable from the
the ‘Pocket PC’. back of the handle.
Front View
Back View
