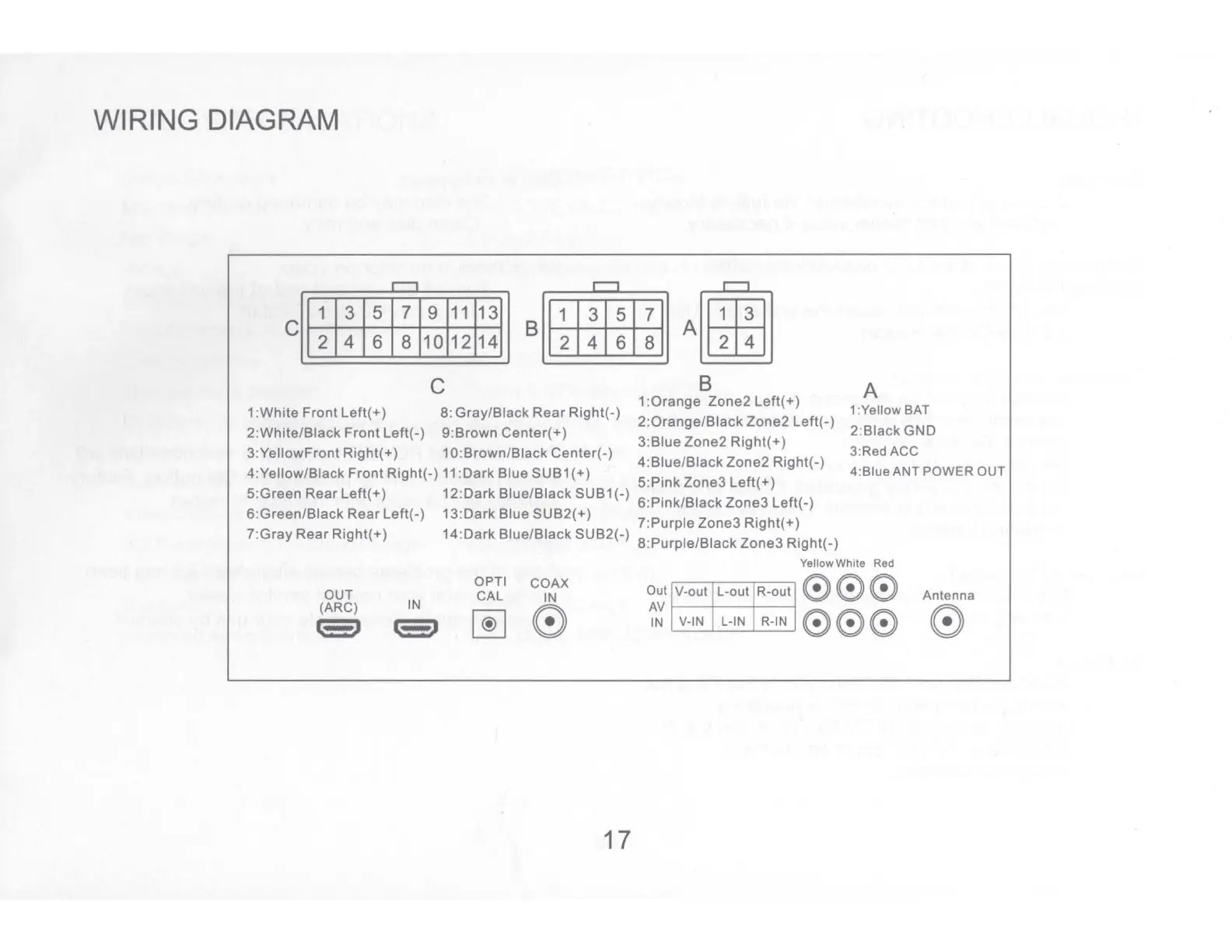

WIRING DIAGRAM
1 3 5 7 9 11 13
C 2 4 6 8101214
C
B~
All
B
1 :White Front Left(+) 8: Gray/Black Rear Right(-)
A
1 :Orange Zone2 Left(+)
1
:Yellow BAT
2:White/Black Front Left(-) 9:Brown Center(+)
2:Orange/Black Zone2 Left(-)
2
: Black GND
3:YellowFront Right(+) 1 0:Brown/Black Center(-)
3:Blue Zone2 Right(+)
3:RedACC
. 4:Blue/Black Zone2 Right(-)
4:Yellow/Black Front Right(-) 11: Dark Blue SUB 1 (+)
4:BlueANT POWER OUT
5:Pink Zone3 Left(+)
5:GreenRearLeft(+) 12:DarkBlue/BlackSUB1(-)
1
6:Pink Black Zone3 Left(-)
6:Green/Black Rear Left(-) 13:Dark Blue SUB2(+)
. ?:Purple Zone3 Right(+)
?:Gray Rear Right(+) 14:Dark Blue/Black SUB2(-)
OUT
(ARC)
(-)
IN
OPTI
CAL
~
COAX
IN
0
17
8:Purple/Black Zone3 Right(-)
YellowWhite Red
Out V-out L-out R-out 0 0 0
AV .______,.______, _ ___,
IN V -IN L-IN R-IN 0 0 0
Antenna
0
