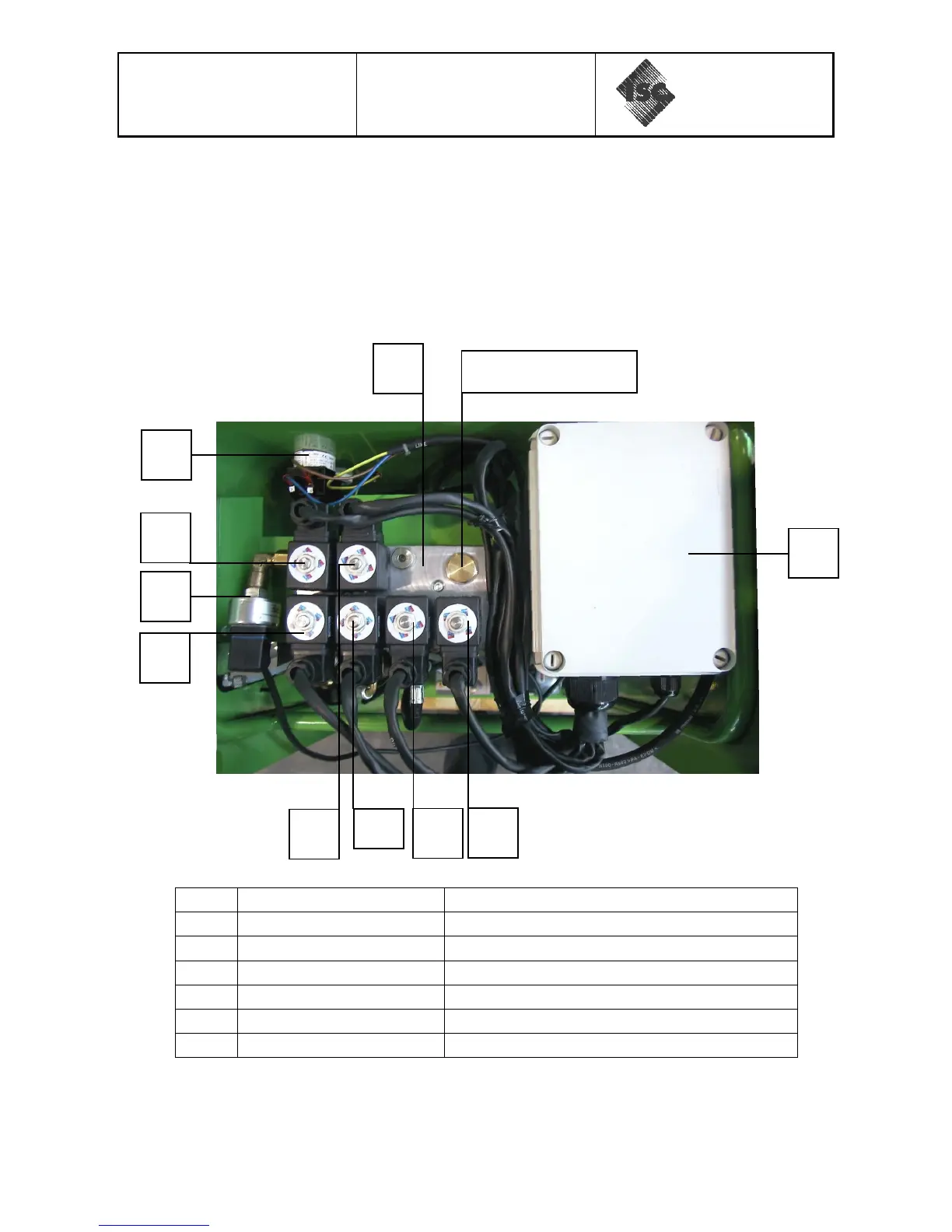

2.6) UPPER PART, INSIDE VIEW (Picture.6)
POS
NAME
DESCRIPTION
61A
OUT B
SOLENOID VALVE ø4.5 mm
61B
OUT B
SOLENOID VALVE ø4.5 mm
62A
OUT A
SOLENOID VALVE ø3mm
62B
OUT A
SOLENOID VALVE ø4.5 mm
63
OUT R
SOLENOID VALVE ø2.5 mm
64
OUT L
SOLENOID VALVE ø2.5 mm
60
CHECK VALVE
42
12
50
61A
61B
62B
62A
63
64
