Iseo LIBRA - Dimensions

13
Overview

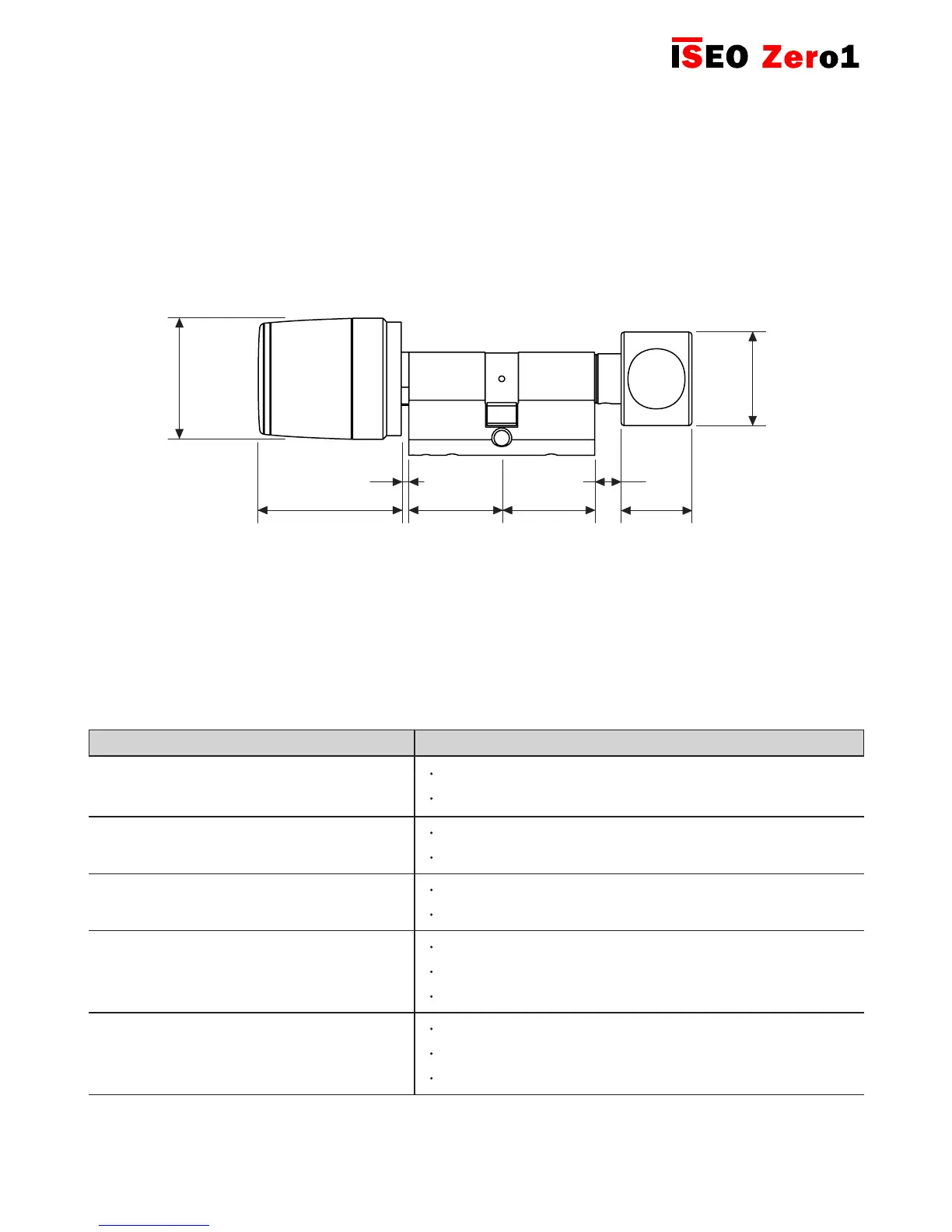

Dimensions
C = 30/35/40/45/50/55/60/65/70/75/80/85/90
D = 10/30/35/40/45/50/55/60/65/70/75/80/85/90
Electronic knob dimensions External diameter: from 36 mm to 39 mm
External diameter: 30 mm
External diamater: da 36 mm a 39 mm
Minimum: 30 - 30 mm
Steps: 5 mm
Feature
Mechanic knob “Premium” dimensions
Length: 46 mm
Length: 31 mm
Length: 46 mm
Maximum total length: 140 mm
Mechanic knob “Standard” dimensions
Stator dimensions (double knob version)
Stator dimensions (half cylinder version)
Characteristics
Minimum: 30 - 10 mm
Steps: 5 mm
Maximum: 90 - 10 mm
36
48 23D
92
C
30
