8.Technical data
8-1 Specification
YET-A1/A1P1 YET-A2/A2P2
Power supply AC 110 V or AC 220 V AC 110 V or AC 220 V
Consumption power (max.) 100W 100W
Viscosity, lubricant 30 ~ 250 cSt 30 ~ 250 cSt
Max. output volume 200 cc/min 150 cc/min
Max. output operating pressure kgf/cm
2
7±1 (kgf/cm
2
) 15±1 (kgf/cm
2
)
Diameter of oil output adapter
∮4 或 ∮6 mm ∮4 或 ∮6 mm
Dimension(L*W*H mm)
2L: 255×150×205
3L: 275×175×227
4L: 273×180×275
2L: 255×150×205
3L: 275×175×227
4L: 273×180×275
Reservoir capacity 2L/3L/4L 2L/3L/4L
Ambient temperature
0 ~ 50 ℃ 0 ~ 50 ℃
Pressure gauge 15 (kgf/cm
2
) 35 (kgf/cm
2
)
Switching pressure (option) 2.1 (kgf/cm
2
) 11.5 (kgf/cm
2
)
Switched current, max. 3A 3A

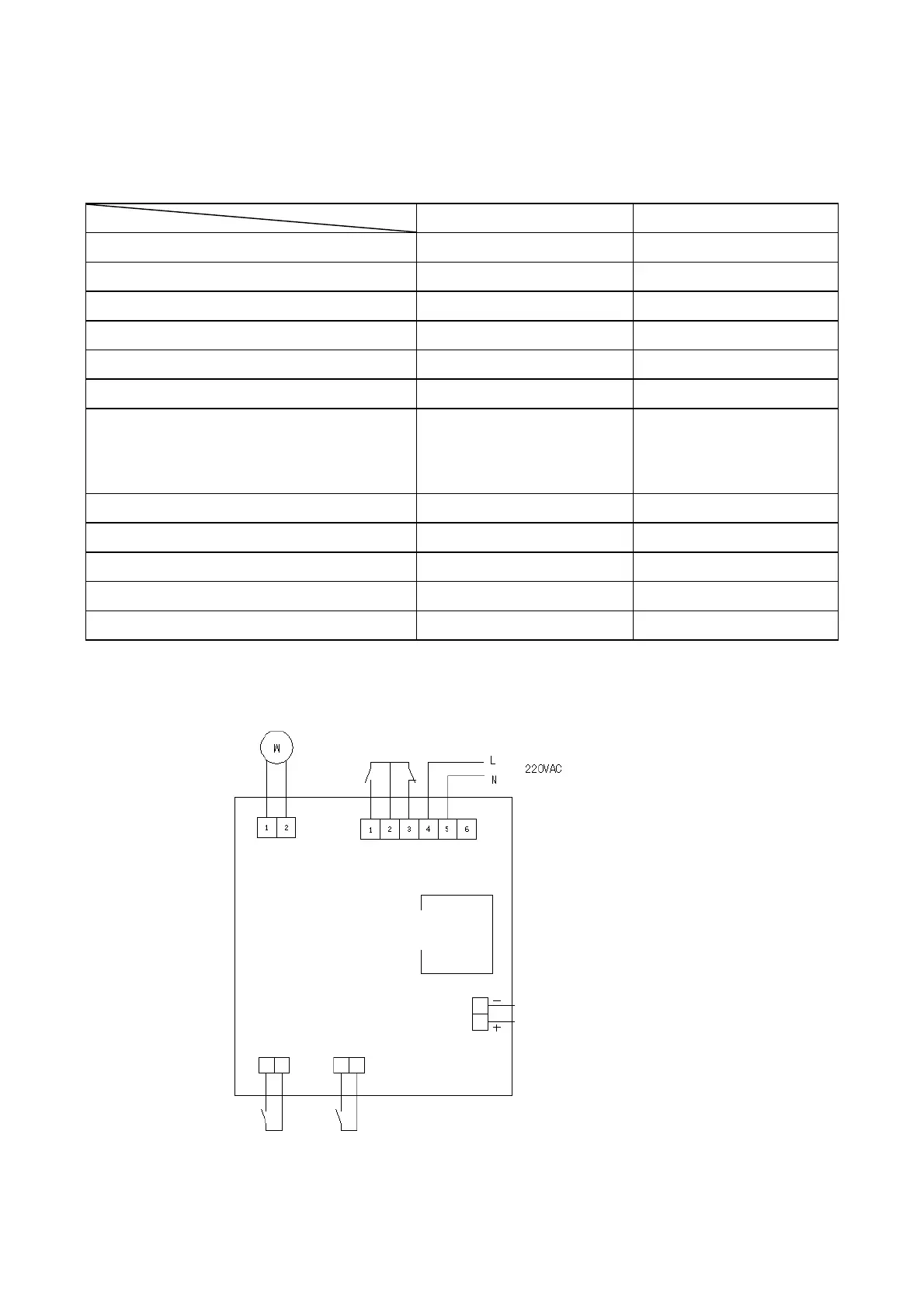

8-2 Wire diagramed
transformer
Pressure switch level switch
Beeper
NC/COM/NO
Motor
