CCW-R-2**B INSTRUCTION MANUAL 13 APPENDIX
13-25
13.9.1 EXC Board (P-5426*)

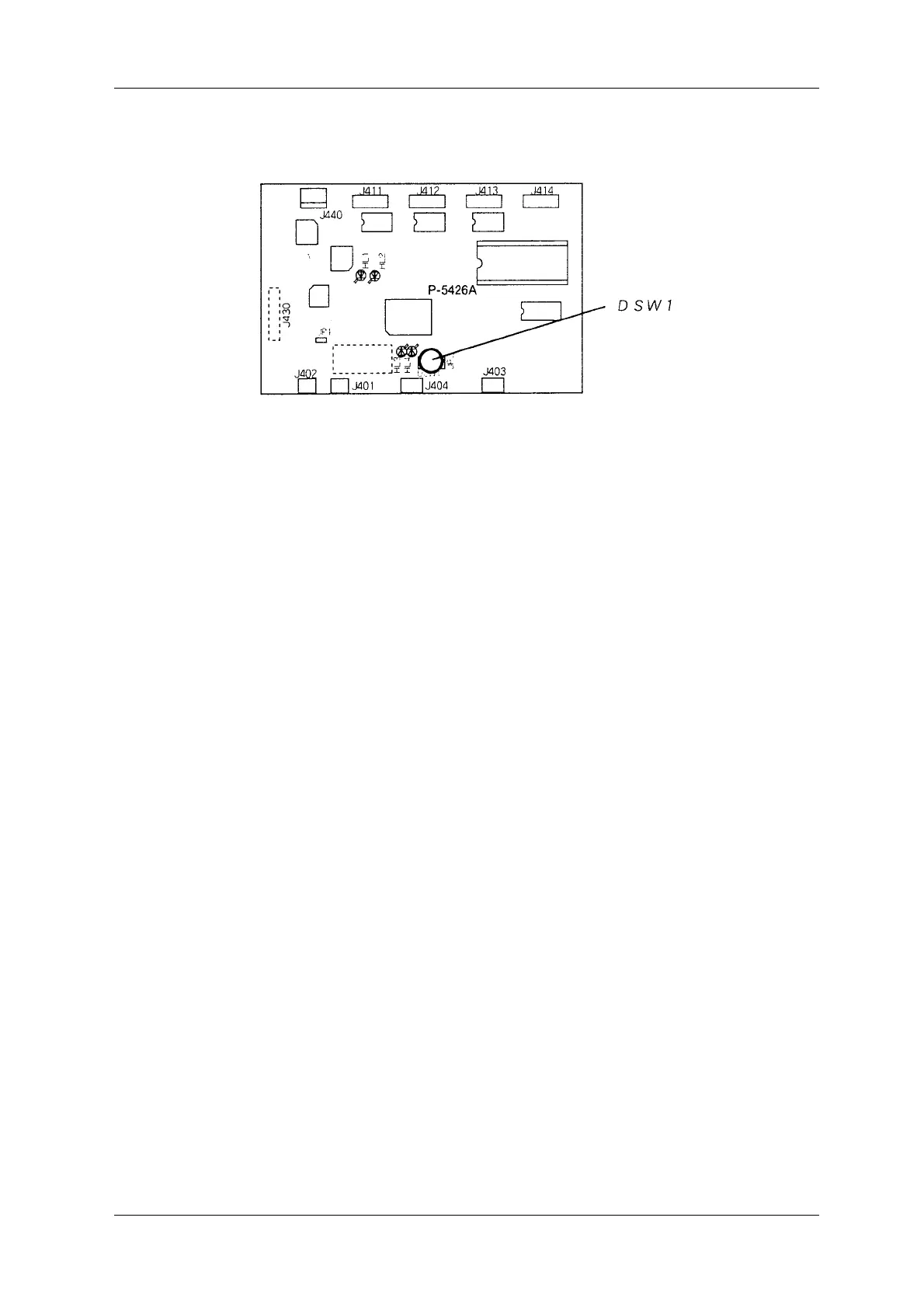

Fig.13-24 EXC Board
* In most instances, set all DSW1 switches to OFF.
Functions of the board
1. Communication with the CAL unit.
2. Control of the timing hopper. (Optional)
