The trays and lm being used must match the machine.
Trays and Film
Types of trays
Even with polystyrene foam (PSP), transparent(OPS, HIPS, PP), or with other trays, there are some trays that cannot be used as below.

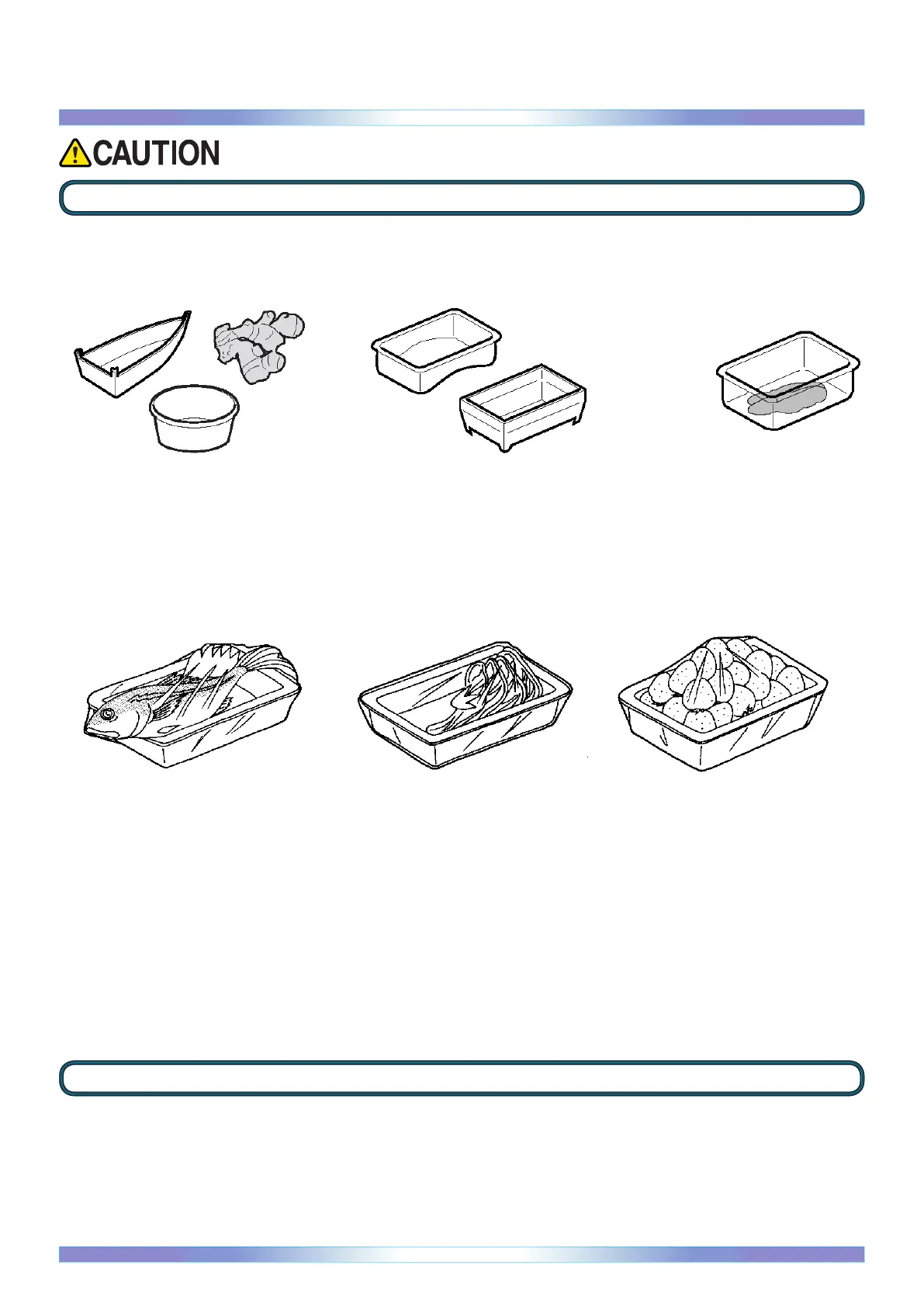

Unusable trays and items
- Fragile trays that may break or collapse.
-Round or hollow bottomed trays as the lm cannot be
sealed on the bottom of the tray or it does not infeed.
- Hollow trays at the bottom
The lm can not be sealed on the bottom of the
tray.
-Trays that cannot be detected by sensor
It cannot detect the transparent tray with small
portion inside. (Trays that have some color, or
less clearness can be detected by sensor even if
they are transparent.)
Filling the trays
The appearance of the trays will vary according to how they have been packed Do not
- use contents that do not t in the tray - position contents in only part of the tray - overll the tray
Wrapping Size:WM-Nano ‘M’ Type
Depth: 90~210mm (3.5”~8.3”); FP: 80mm (3.1”)
Width: 150~330mm (5.9”~13”); FP: 120mm (4.7”)
Height: 10~130mm (0.4”~5.1”)
Tray height: ≤45mm (1.8”)
Note: It is not possible to achieve all three maximum dimensions contemporary on the machine.
Wrapping Size:WM-Nano ‘L’ Type
Depth: 127~254mm (5”~10”); FP: 80mm (3.1”)
Width: 150~350mm (5.9”~13.7”); FP: 120mm (4.7”)
Height: 10~130mm (0.4”~5.1”)
Tray height: ≤45mm (1.8”)
Note: It is not possible to achieve all three maximum dimensions contemporary on the machine.
Film types
Film Type:Poly or PVC
Film Size:WM-Nano ‘M’ Type
350 · 400 · 450mm (14” · 16” · 18”) Max. Ø: 165mm (6.3”)
Film Size:WM-Nano ‘L’ Type
400 · 450 · 500 · 550 · 560mm(16” · 18” · 20” · 21.65” · 22”)Max. Ø: 200mm (7.8”)
