Descriptionoftheproduct
Ameasuringcentreisusedformeasuring,analysingandmonitoringthreephaseelectricalpowernetwork.Using
thelatesttechnologiesandnumericalmethodswehavereachedhighaccuracyoverawidemeasuringrangeof
voltage,currentandintegratedquantities.

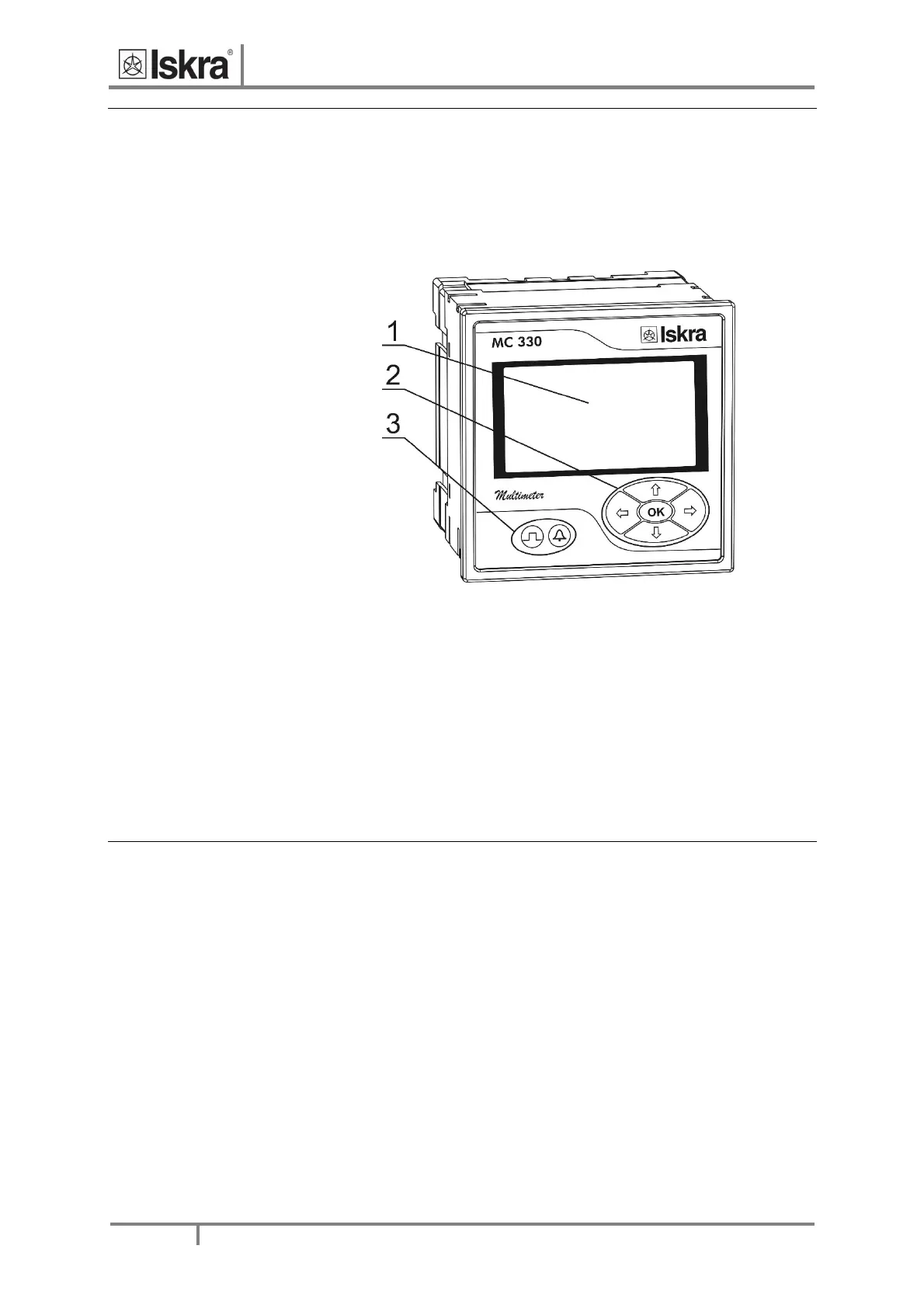

Appearance
1‐GraphicalLCD
2‐Navigationkeyboard
3‐LEDindicators

GRAPHICALLCD
AgraphicalLCDwithbacklightisusedforhighresolutionofdisplayedmeasuringquantitiesandforadisplayof
selectedfunctionswhensettingthedevice.
NAVIGATIONKEYBOARD
The"OK"keyisusedforconfirmingthesettings,selectingandexitingthedisplay.Directionkeysareusedfor
shiftingbetweenscreensandmenus.
LEDINDICATORS
LEDindicatorswarnofacertainstateoftheinstrument.Aleft(red)oneisblinkingaspulseoutput.Aright(red)
oneisblinkingwhentheconditionforthealarmisfulfilled.
Purposeanduseofdifferenttypesofmeasuringcenters
EnergymeterMC320
Theinstrumentisusedformonitoringandmeasuringelectricquantitiesofelectricalpowersystem.Astheenergy
counter,instrumentrecordsenergyinallfourquadrantsinfourtariffs.Twodifferentmodulesthatareoptionally
builtintwomoduleplacesinthemeterareavailableforcontrollingmeasurements.Availableisoneinputand
oneoutputmodule.
MultifunctionmeterMC330
The instrument is used for monitoring and measuring electric quantities of three‐phase electrical power
distributionsystem.Themeterisprovidedwith16programadjustablealarms,Configurationcanhaveoneinput,
oneoutputmodulesandcommunicationmodule(RS232orRS485orUSB).Withthecommunicationmetercan
besetandmeasurementscanbechecked.Themeteralsofunctionsasanenergycounterwithtariffs.Asan
energycounteritcanrecordenergyinallfourquadrantsinfourtariffs.Differentmodulesthatareoptionally
builtintwomoduleplacesinthemeterareavailableforcontrollingmeasurements.Availableisoneinputand
oneoutputmodule.
