6. DISPLAY DESCRIPTION
7
65
43
16
15
14
1312
11
10
9
8
17
2
1
Un Ov

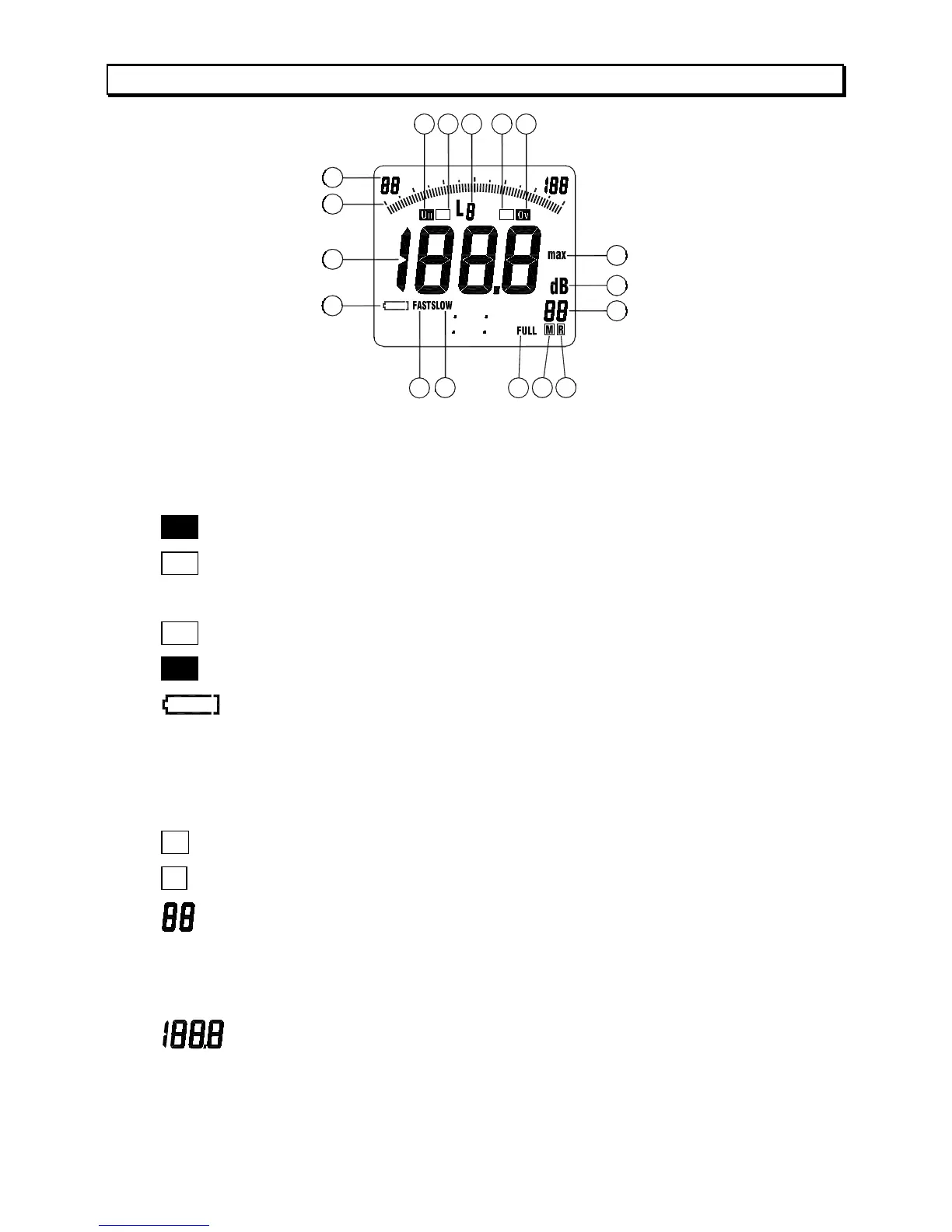

1. Sound level range indicator (5 ranges): 30–90dB, 40–100dB, 50–110dB, 60–120dB
and 70–130dB
2. Bar graph shows the current sound level (1dB resolution).
3. Un : Under-range indicator.
4. Un : Under-range indicator for processed value.
5. A, C: “A” Frequency weighting or “C” Frequency weighting indicator.
6. Ov : Over-range indicator for processed value.
7. Ov : Over-range indicator.
8. : Battery capacity indicator.
9. FAST : Fast time weighting indicator.
10. SLOW : Slow time weighting indicator.
11. FULL : Manual data memory full indicator.
12. M : Data memory indicator.
13. R : Data read indicator.
14. : Memory address display (max. 99 sets).
15. dB : Sound level unit.
16. max : Maximum time-weighted sound level reading.
17.
: Sound level reading (0.1dB resolution): 30.0 – 130.0dB
