How to Install the ISONAS PureIP Reader-controller
2.2 : WIRING THE DOORS
After you connect power to every Reader-controller, the
next step is to connect the wiring at each door.
Wiring a door may involve connecting:
 An electronic door latch
 A request to exit (REX) like:
 REX Button
 Motion Detector
 Door sensors

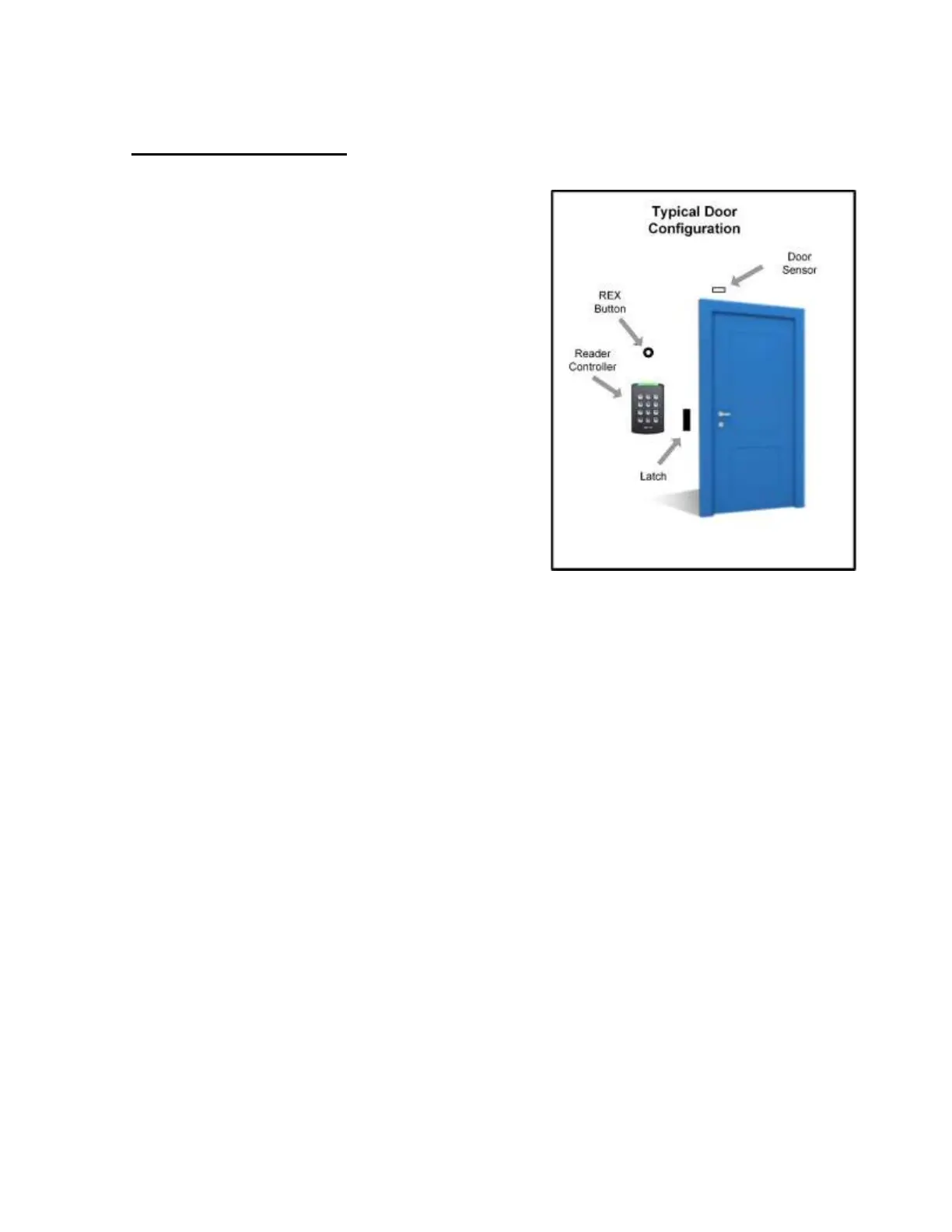

Figure 5 shows the typical configuration of equipment at
the door.
Figure 5
