How to Install the ISONAS PureIP Reader-controller
2.2.5: WIRING THE DOOR SENSE
Connecting the ISONAS Reader-controller to a door sensor allows the host access control system to
detect if the door is ajar. Then the host access control system can create alarms based on the
door’s state. This wiring task is similar to wiring the REX / AUX input.
First, connect one terminal of the door sensor to the Reader's blue wire. Then connect the door
sensor's other terminal to the Reader's common ground wire (brown).

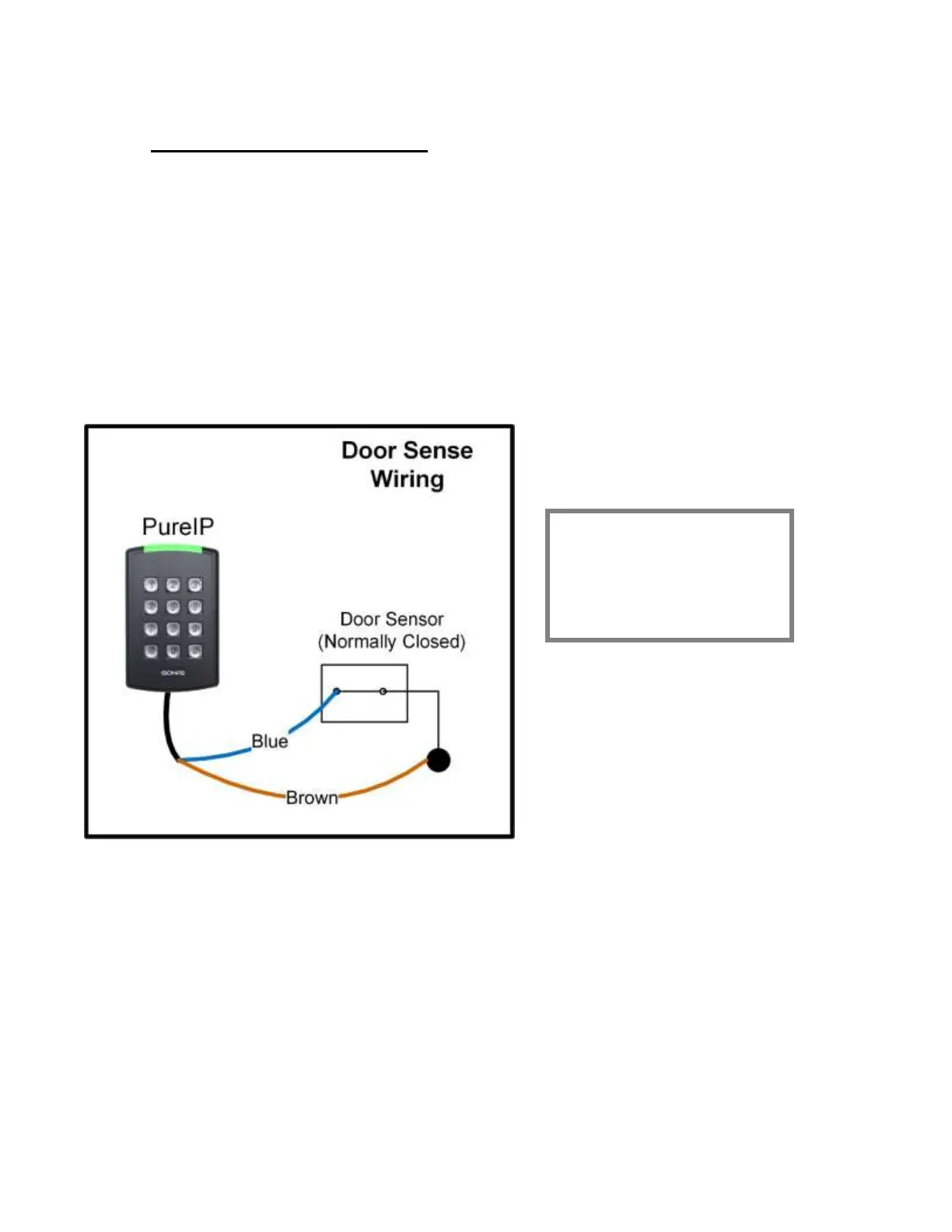

Figure 9 shows how to wire the door sensor.
Figure 9
About the Door Sense
The door sense is a
normally closed input. No
action is taken until the
input is opened.
