Isonas Pure IP Reader-Controller - Page 23

23
How to Install the ISONAS PureIP Reader-controller
The 2
nd
example shows powering the EDK with
the Reader-controller’s PoE power output, and
the lock with an external 24 volt power supply.
See Figure 11

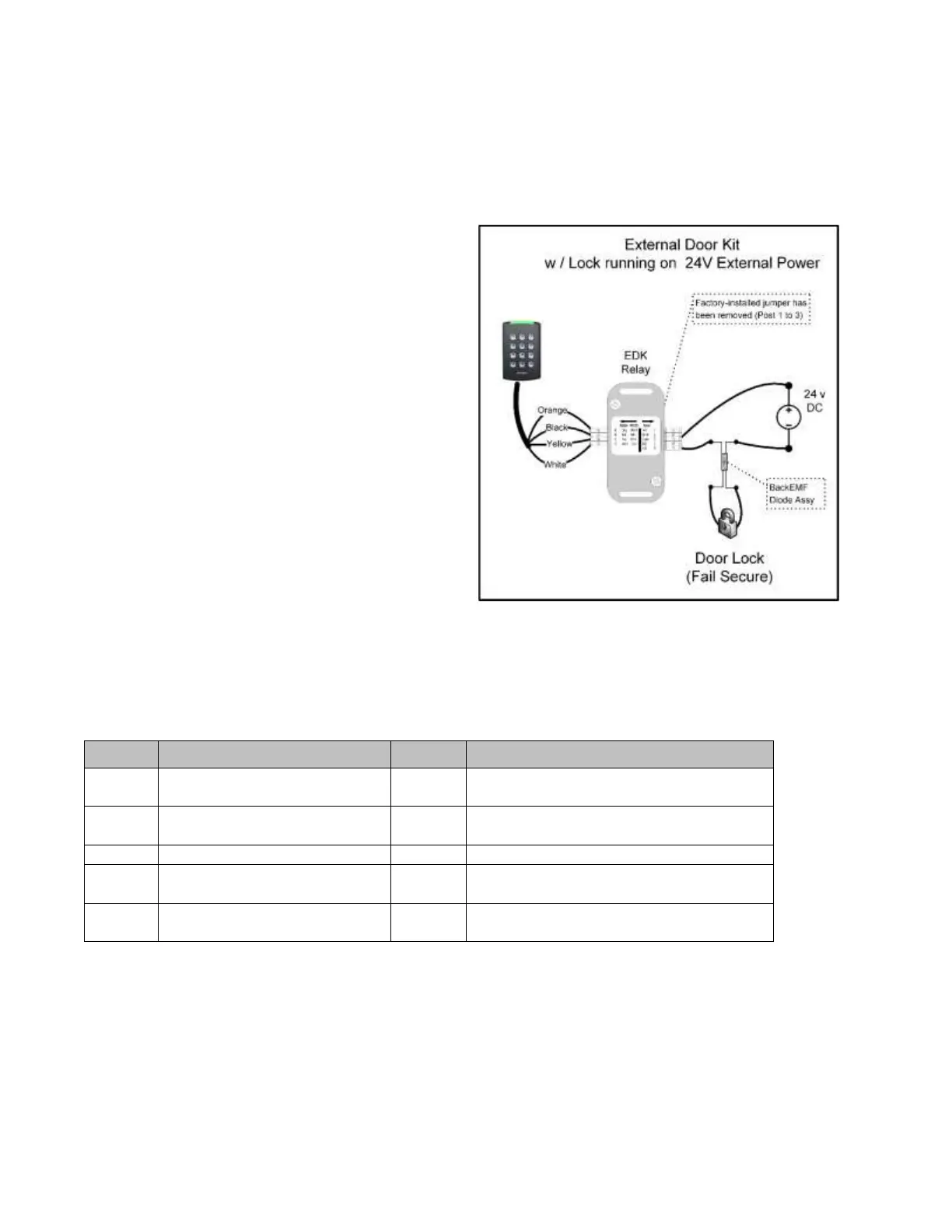

Figure 11
Label
Reader Side Connection
Label
Lock Side Connection
A
Pigtail’s Orange wire
(12 V Input Power)
1
Not Used
(Factory-installed Jumper removed)
B
Pigtail’s Black wire
(Ground)
2
Not Used
C
Pigtail’s Yellow wire
3
EDK Relay’s Common Contact
D
Pigtail’s White wire
4
EDK Relay’s Normally Closed (NC)
contact (Fail-Safe Lock)
Not Used
5
EDK Relay’s Normally Open (NO)
contact (Fail-Secure Lock)
