Isotemp Basic - Page 7

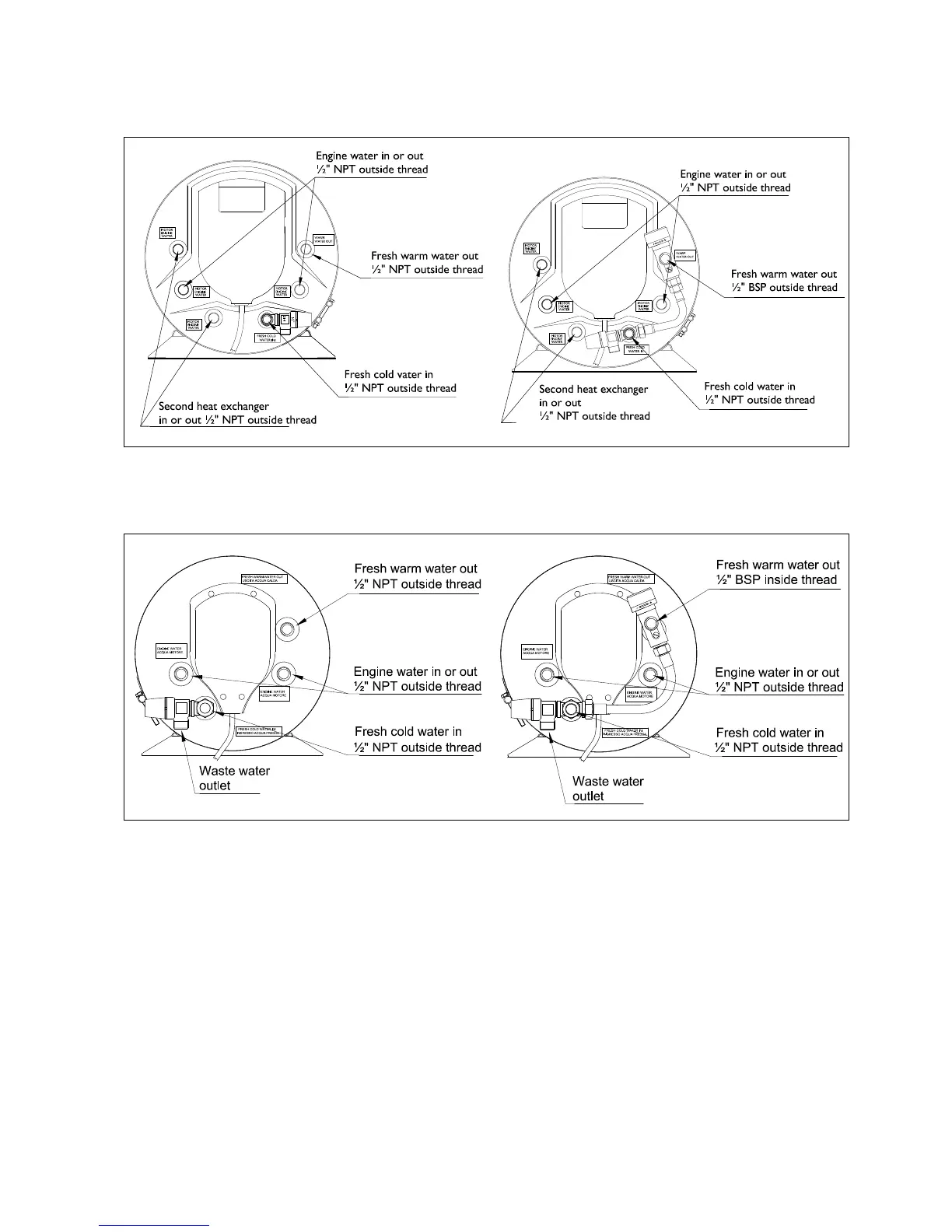

Isotemp Slim without and with thermostat mixer valve
Isotemp Basic with double coils, without and with thermostat mixer valve
Fig.4
Fig. 5
Please Note:
Hose nipples with straight ½” BSP threads fi ts also to ½” NPT outside threads.
001015-16
001011-00971
5
