www.123filter.com | +1 (678) 261-7611 | support@123filter.com Page 10

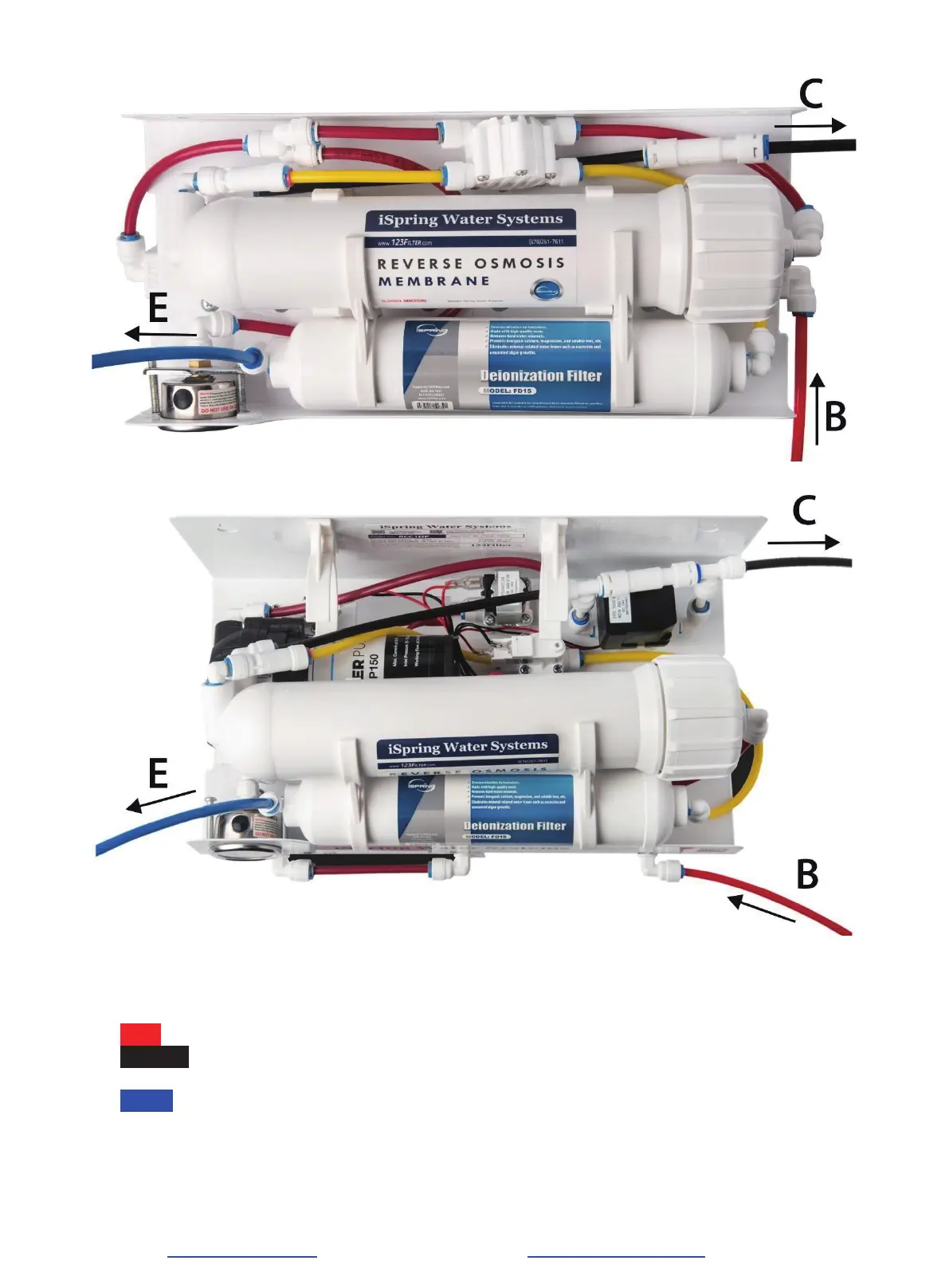

RCC1D Top View
RCC1DP Top View
Note: The sequence of connection for different colors can be adjusted.
RED tubing: connect source water (Point A) to the 1
st
Stage water inlet elbow fitting (Point B)
BLACK tubing: connect wastewater from the Flow Restrictor (Point C) to the Drain
Saddle/drain pipe (Point D)
BLUE tubing: pure water outlet connecting from the 5
th
Stage DI Filter (Point E)
You may neatly organize the tubing, but make sure to leave enough length so the filter system
can be moved freely in and out of the cabinet when replacing filters.
To Next Page
