f. Connect the other end of the 1/4" BLUE tubing to the previously installed smart faucet. The
faucet came with a 1/4" quick fitting. Like other quick fitting installation, make sure at least 1/2" of
the tubing is inserted into the faucet fitting. The tubing should not be able to pulled out by hand
Secure the connection by inserting the enclosed 1/4" locking clip.

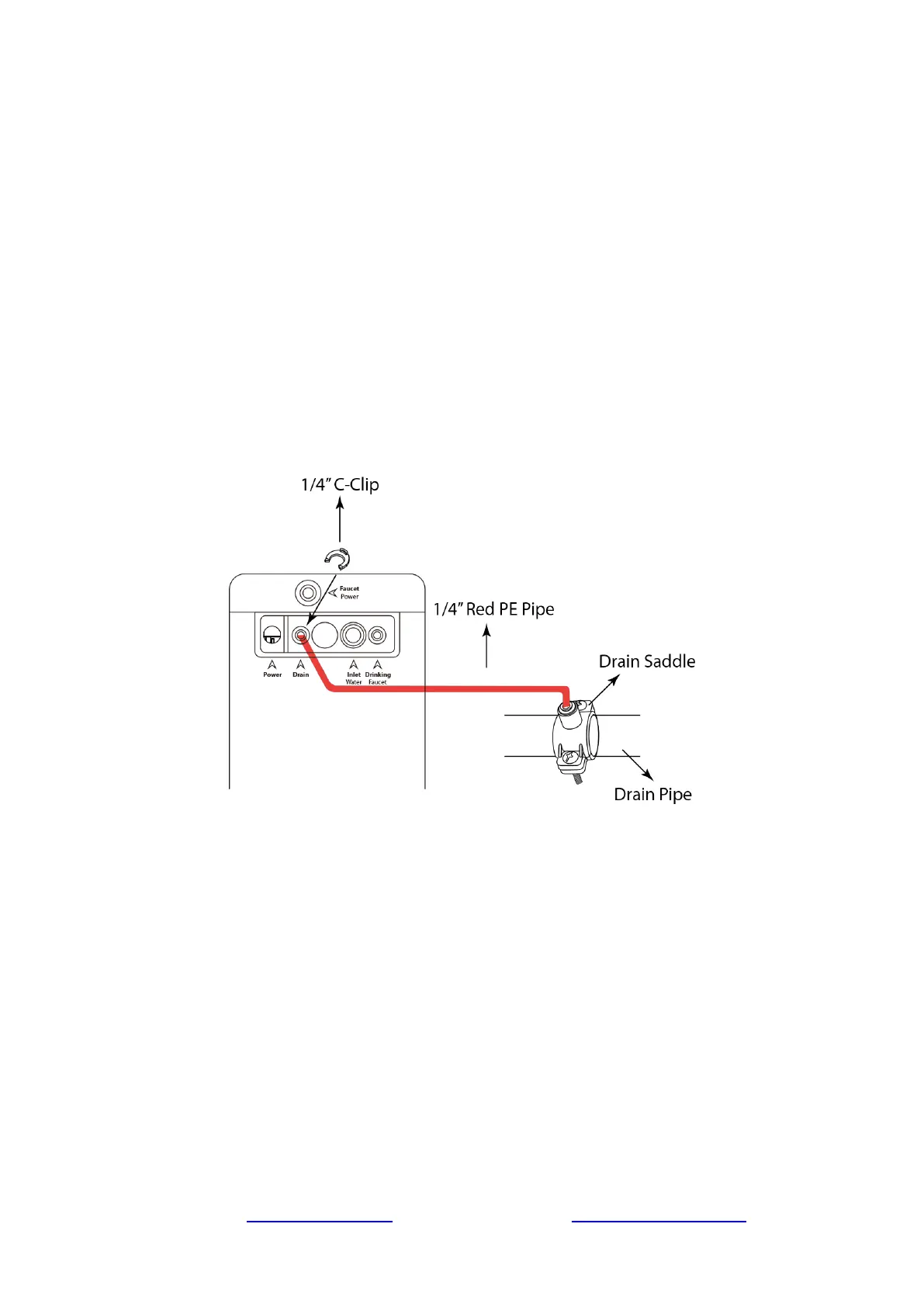

g. Choose a spot on the drain pipe that is convenient for installing the drain saddle and tubing. A
horizontal pipe is recommended to minimize the dripping sound. Drill a 1/4" hole in the drain pipe,
and paste the black sticky pad around the hole. Cut the 1/4" RED tubing end tip to make a 45-
degree angle. Insert the tubing through the hole to the drain pipe, install the back plate, and tighten
the two screws with hex nuts while the tubing remains in the hole. Pull the tubing lightly to make
sure it is secure. Shown as below.
The system installation is now completed.
