g. Once breaking through the smooth surface, swirl the drill a little to apply pressure in a circle
evenly. Be patient and deliberate. It can take 20 – 40 minutes to drill through one inch.

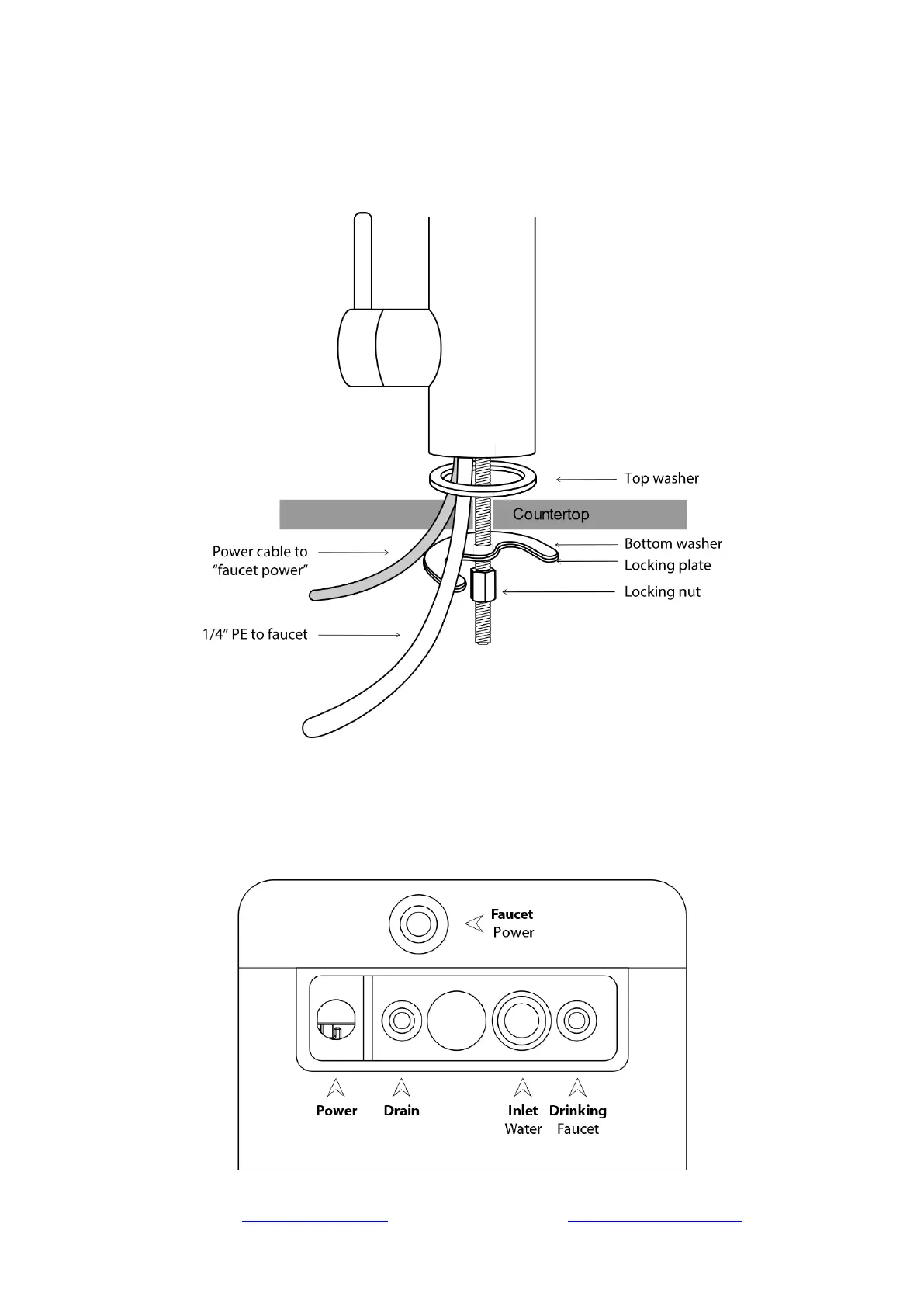

Place the faucet in the hole and refer to the following image.
▪ Connect the system with power cable and PE water tubing
Refer to the following diagram for water tubing and power cable connections.
