3.9.0

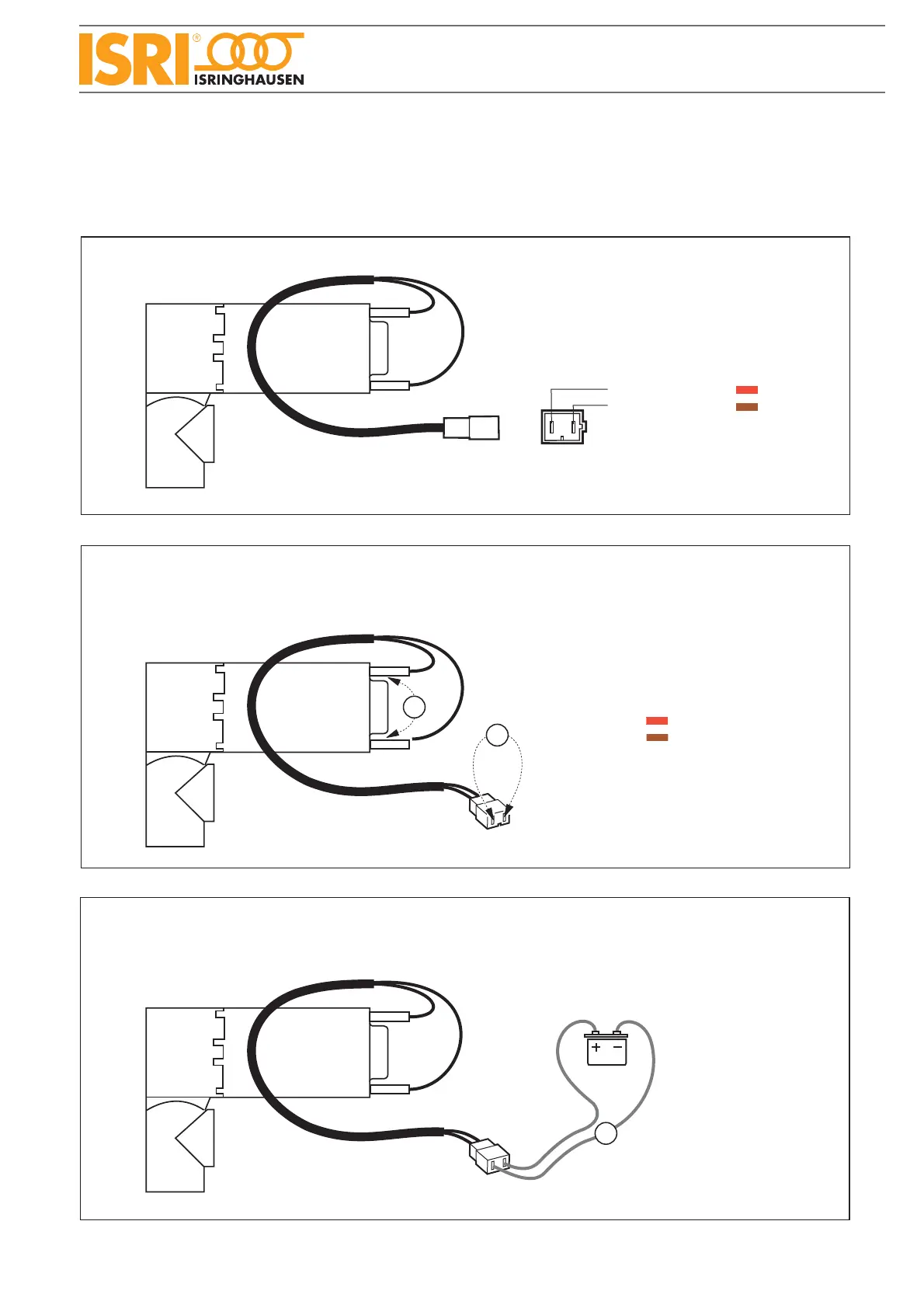

CHECKING COMPRESSOR
12V System: ca. 7-10A
24V System: ca. 3-6A
Pin 2Pin 1
R
Pin 2
Pin 1
A
Function:
The compressor blows air in the air spring. The time till the seat height is reached varies and depends
on the driver`s weight.
Electric connection
Checking of pneumatical function
Disconnect the plug of the compressor and connect a battery with external voltage from 24V
(respectively 12V for 12V systems) . The compressor blows air in the air spring.
The seat lifts up.
Checking resistor
Disconnect the plug of the compressor and measure the rersistance.
Pin 1 Signal RD
Pin 2 Ground BN
12V System: ca. 130W ca. 1W
24V System: ca. 130W ca. 2W
Pin 1 RD
Pin 2 BN
R
