ISRI 6830KA/ 880 - Complete Seat; Horizontal Adjustment

2.1.0
COMPLETE SEAT/ HORIZONTAL ADJUSTMENT

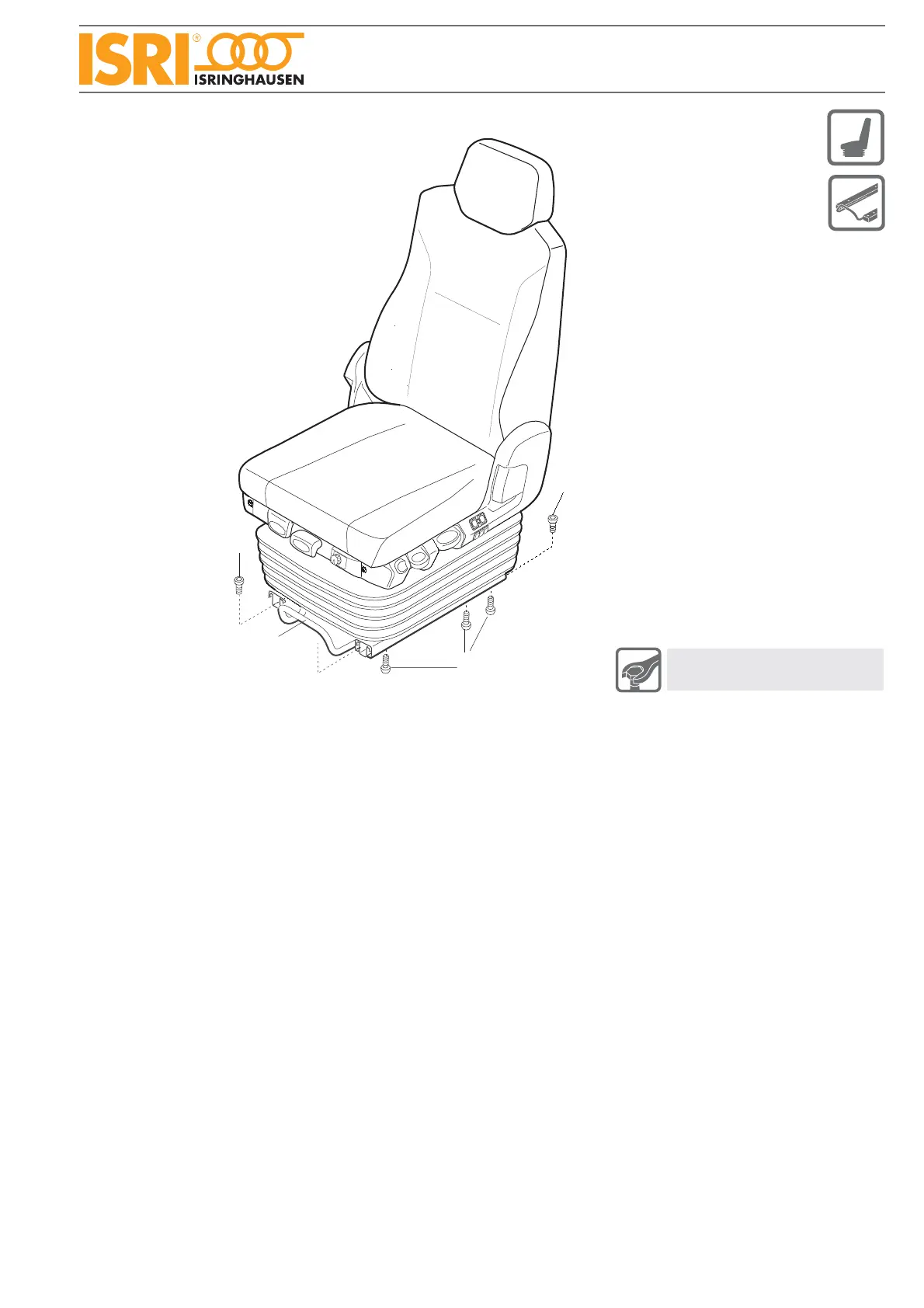

Complete seat
Disconnect electrical connection between seat and vehicle.•
Pull lever (1) upwards, move seat to the foremost position and undo screws (2).•
Pull lever (1) upwards, move seat to the rearmost position and undo screws (3).•
Horizontal adjustment
Dismount seat from vehicle.•
Pull lever (1) upwards and move inner slides till six screws (4) are reachable through boreholes of inner slides.•
Undo 6 screws (4).•
Tightening toques
Pos. 4 22Nm +/-2Nm
1
3
4
2
