Issyzone POS IMP021 - Page 13

13

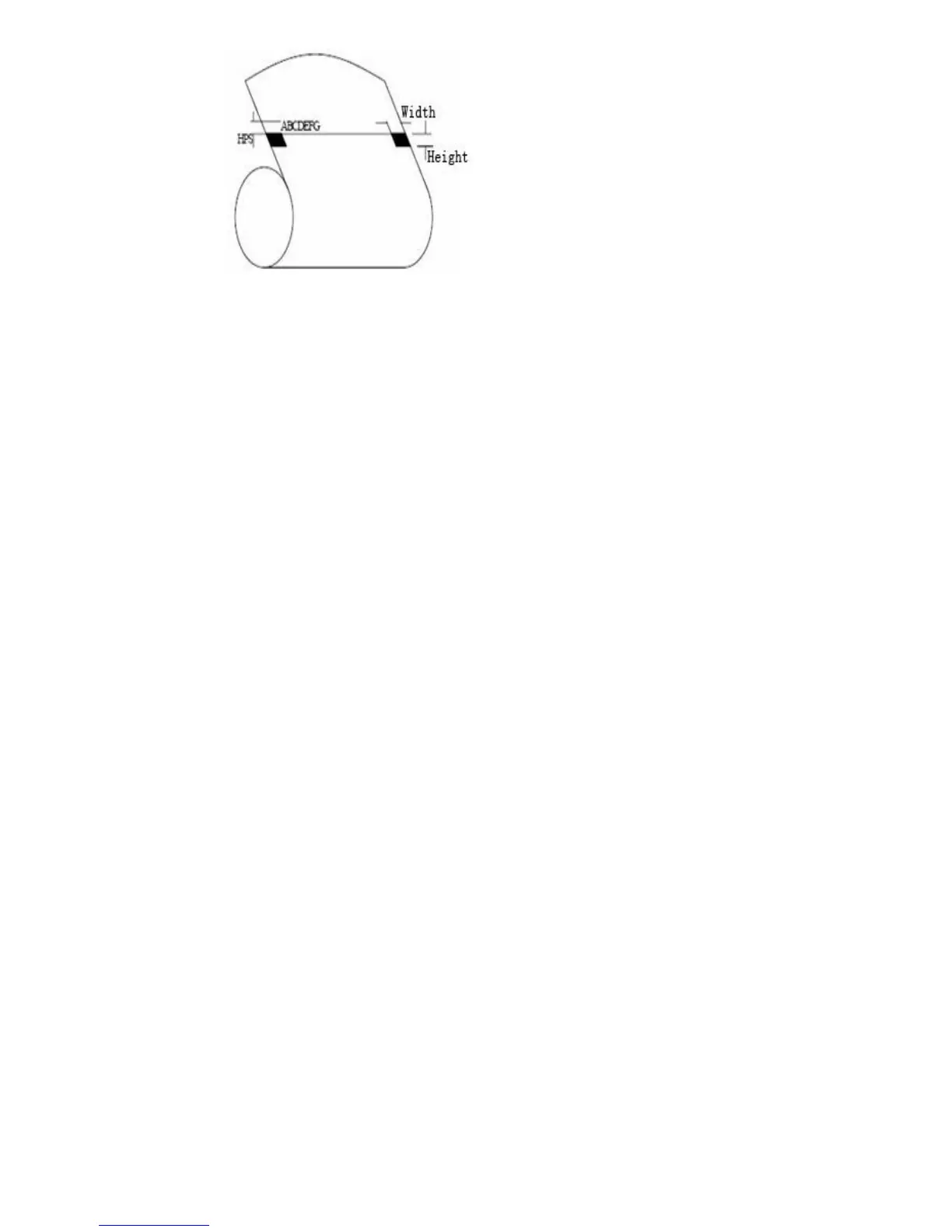

Printing Position: As the picture above, the black mark should be printed on the right
edge of the side of words (both sides of the paper is available).
Width range: width≥7mm
Height range: 4mm≤height≤6mm
Reflectivity of infrared ray : <10% (infrared ray reflectivity of other parts of the black
mark paper is>65%)
HPS: It is the distance between edges of black mark and loading position.
4.5mm≤Hps≤6.5mm
