pg. 10
Installing the I600 into the Wall

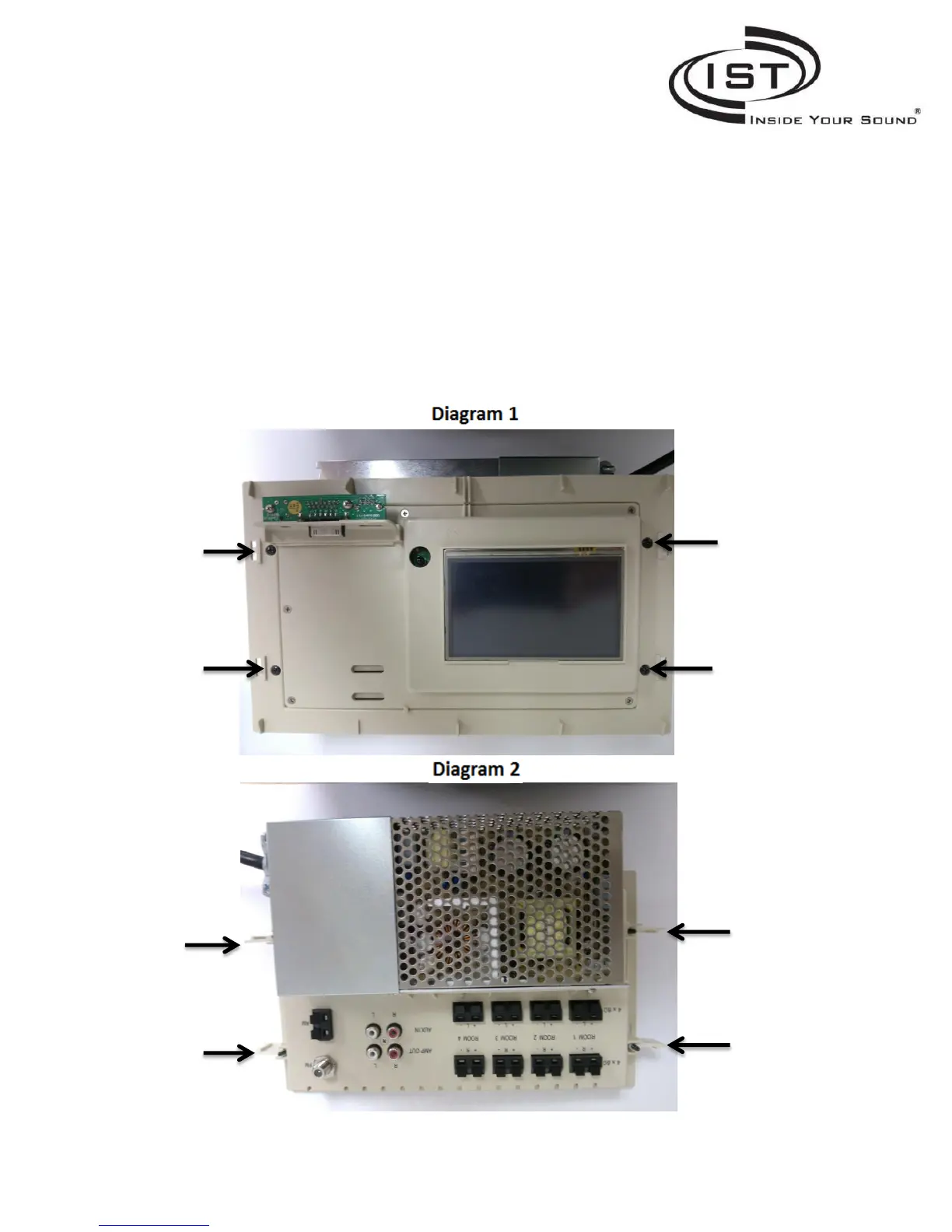

1. Remove the front cover of the I600 to expose the (4) screws. Diagram 1 points to the 4 screws.
2. Insert the I600 into the wall; use a Phillips screw driver to tighten the CAMLOCKS. Notice the CAMLOCKS will
compress against the wall as you tighten the screws. It is VERY IMPORTANT not to over tighten the screws.
Over tightening the screws will result in damaging the CAMLOCKs. Diagram 2 points to the CAMLOCKS.
3. After securing the I600 into the wall, snap the faceplate onto the I600.
