Connecting Additional Amplifiers
(I600-AMP OPTIONAL)
Note: Unlimited number of I600-AMP Amplifiers can be installed per system. Maximum 4 pairs of speakers per I600-
AMP Amplifier can be connected.
1. The I600-AMP is usually located in a closet or in a location out of sight. Use 22 AWG 75 Ohm Coaxial Cable
(RG59) RCA Connectors. The maximum distance the I600-AMP can be located from the I600 System is 150
feet. Make sure to mount the I600-AMP within 6 feet to a standard 110V outlet.
2. At this time surface mount the I600-AMP to the wall. Make sure the I600-AMP is mounted securely to the
wall by using (Screws Not Included).
3. Run RCA Audio Cables with RCA Male ends from the I600 System using the AMP OUT to the I600-AMP

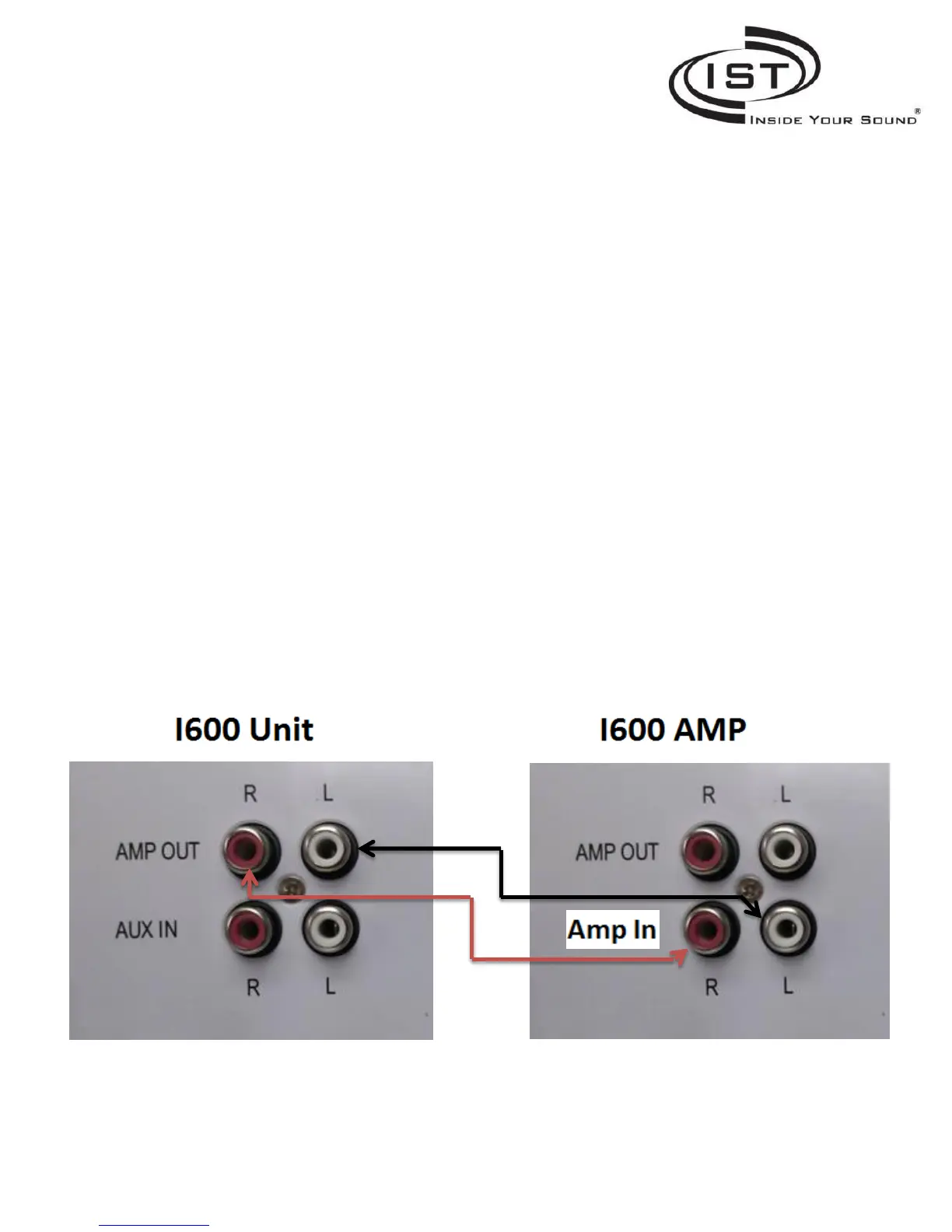

connecting to the AMP IN. Refer to the Diagram Below.
4. When connecting more than one amplifier to a I600 System, run RCA Audio Cables with RCA male ends from
I600-AMP to the next I600-AMP by using the AMP OUT and AMP IN. Refer to Diagram Below.
5. Refer to Page 6 Connecting Speakers to the I600-AMP.
