pg. 6
Connecting Speakers to I600 or
I600-AMP
1. Once the location of the speakers have been selected, run 2 pairs of 16 gauge 2 conductor speaker wire from
each pair of speakers (Maximum of 4 pairs) to the I600 system. Only 8-Ohm speakers (Suggested Speakers
are 100C or EX-C80II) are to be used with the I600 System. If connecting more than 4 pairs of speakers to the
I600 System refer to Connecting Additional Amplifiers on Page 7.
2. Maximum distance of 150 feet from I600 or I600-AMP to any pairs of speakers.
3. Proper separation of speakers in a room should be 6 to 10 Feet apart.
4. Make sure to label the wire “Left” and “Right” and location for example “Room 1 Master Bedroom”. This will
limit installation errors and help Identify locations during installation of the system.
5. The I600 will control the volume to every room. To control the volume separately a volume control will need
to be installed in each room (Suggest to use JA-VNB-75 or JA-VSL-100). Refer to connecting volume controls
on Page 8.

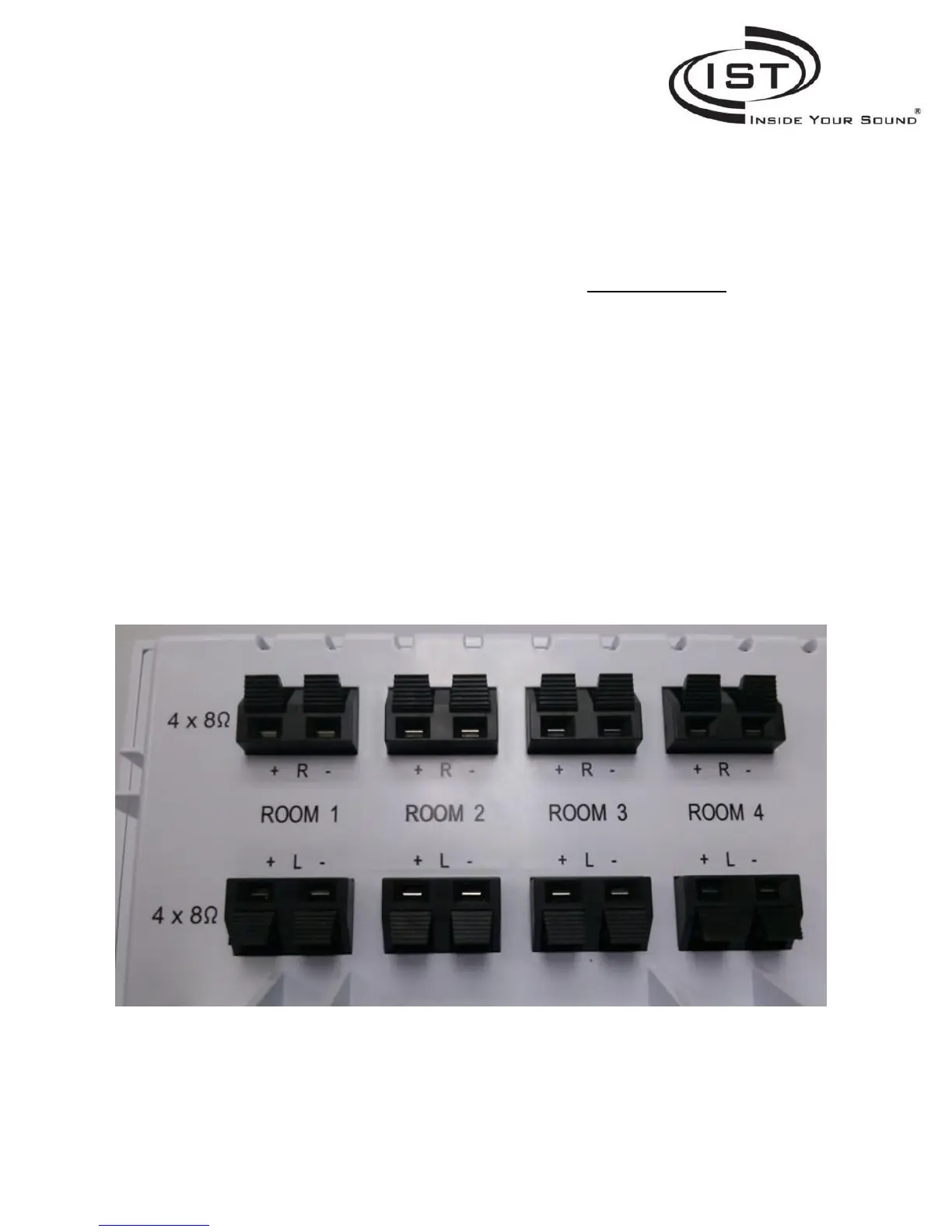

Note: The picture is a representation of the speaker connections on the I600 and I600-AMP
