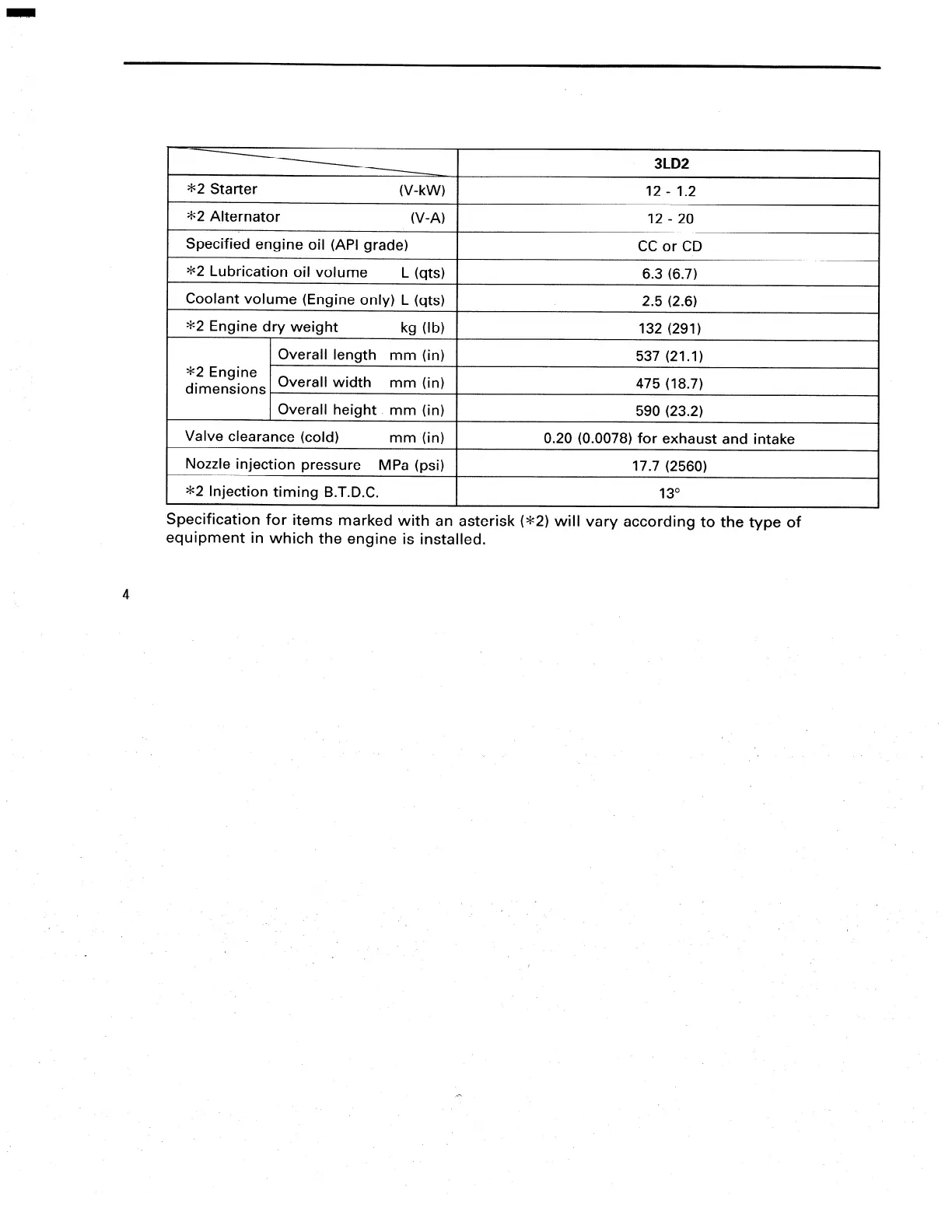

3LD2
*2 Starter
(V-kW) 12 - 1.2
*2 Alternator
W-4
12 - 20
Specified engine oil (API grade)
CC or CD
*2 Lubrication oil volume
L (qtd
6.3 (6.7)
Coolant volume (Engine only) L (qts)
2.5 (2.6)
*2 Engine dry weight
kg (lb)
132 (291)
Overall length mm (in)
537 (21.1)
*2 Engine
dimensions
Overall width mm (in)
475 (18.7)
Overall height mm (in)
590 (23.2)
Valve clearance (cold)
mm (in) 0.20 (0.0078) for exhaust and intake
Nozzle injection pressure MPa (psi)
17.7 (2560)
*2 Injection timing B.T.D.C.
13"
Specification for items marked with an asterisk (*2) will vary according to the type of
equipment in which the engine is installed.
4
